- The rated power consumption of 120 mw high sensitivity.
- Control range from small load to 5 a.
Y920/Y900
Brand:SiRON
Code:8536411090
Non-returnable
₹5,000.00
Product Details
Product Description
For Selection
| Model | Y920-24 | Y900-4/Y900-40 |

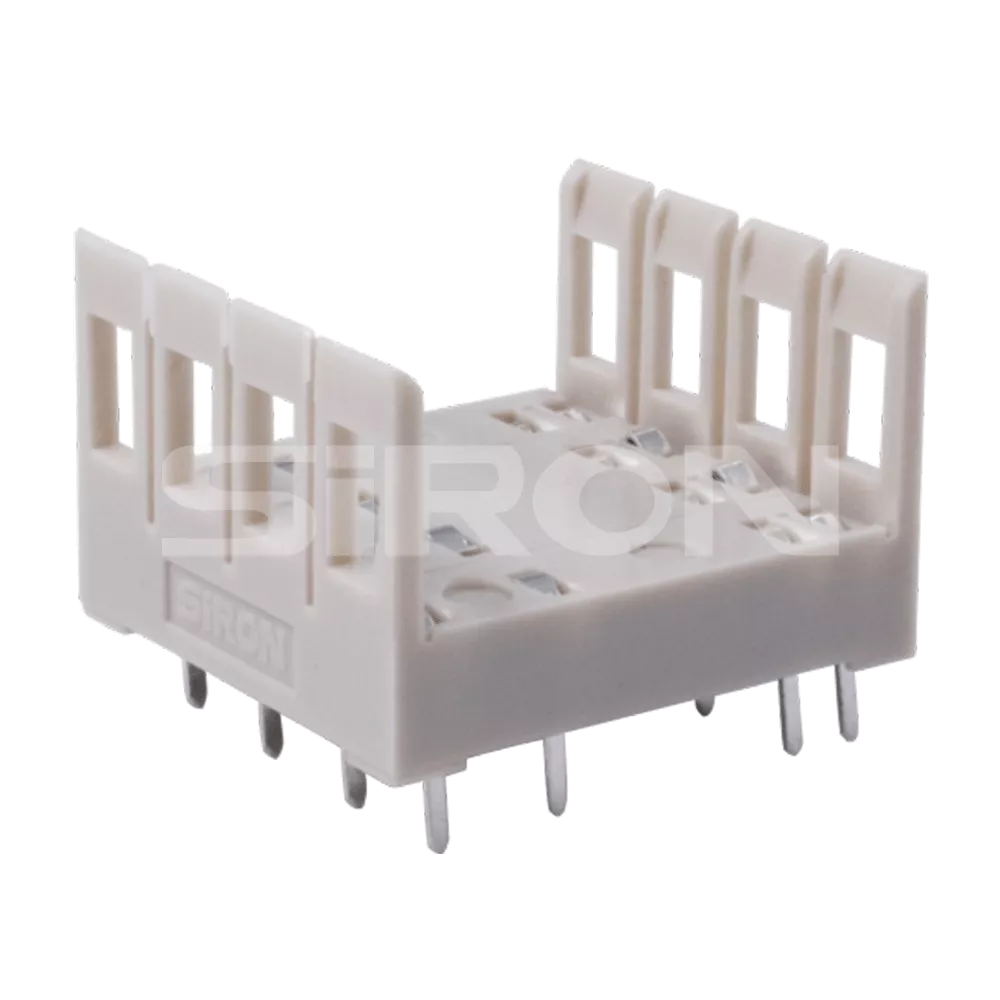

| Name | Miniature signal relay | Four-in-one micro signal relay socket |
Contact parameters
| Model | Y920-24 |
| Contact form | One group is always open |
| Contact resistance | ≤50mΩ(1A 6VDC), |
| Contact materials | AgNi |
| Contact load (resistance) | 5A 250VAC/30VDC |
| Maximum switching voltage | 250VAC/30VDC |
| Maximum switching current | 5A |
| Maximum switching power | 1250VA/150W |
| Minimum load | 5VDC 1mA |
| Mechanical durability | 2×10⁷ times |
| Durability of electricity | 1×10⁵ times (AgNi,3A 250VAC/30VDC, resistive load, 85°,1s on, 9s off) 5×10⁴ times (AgNi,5A 250VAC/30VDC, resistive load, room temperature, 1s on, 9s off) |
Coil specification sheet
| Rated voltage | 24 |
| Operation voltage | ≤16.8 |
| Release voltage | ≥1.2 |
| Maximum voltage | 28.8 |
| Coil resistance | 3200×(1±15%) |
Specifications
| Model | Y920-24 | |
| Insulation resistance | 1000MΩ(500VDC) | |
Medium pressure | Between coil and contact | 3000VAC 1min |
Betweenbroken contacts | 1000VAC 1min | |
| Surge voltage | 6kV(1.2/50μs) | |
| Actuation time | ≤10ms | |
| Release time | ≤5ms | |
| impad | The stability of | 98m/s⊃2; |
| The intensity of | 980m/s⊃2; | |
| Vibration | 10Hz to 55Hz, 1.5mm dual amplitude | |
| Humidity | 5%～85%RH | |
| Temperature range | -40℃~70℃ | |
| Leadout form | PCB Mounted | |
| Weight | about 3 g | |
| Encapsulation way | Laminated type | |
| Form a complete set ofsocket | Y900-4 | |
Suitable terminal
| Model | Name | Dimensions | Page |
| Y400 Y400-C | 4-bit relay module |   | P.165 |
| Y401 Y401-C | 4-bit relay module | ||
| Y410 Y410-C | 8-bit relay module | P.169 | |
| Y410-A Y410-A-C | 8-bit pluggable relay module | ||
| Y411 Y411-C | 8-bit relay module | ||
| Y412 Y412-C | 8-bit relay module | ||
| Y413 Y413-C | 8-bit relay module | ||
| Y420 Y420-C | 4-bit relay module |  | P.173 |
| Y421 Y421-C | 8-bit relay module | ||
| Y446 Y446-C | 8-bit relay module | P.185 | |
| Y447 Y447-C | 8-bit relay module | ||
| Y448 Y448-C | 16-bit relay module | ||
| Y449 Y449-C | 32-bit relay module |
