- Flame retardant material, module style, can be used in combination, suitable for cold pressing needle, Pollution level 3;
- Specially designed for modular production pre-wiring and to meet the requirements of harsh environmental conditions
- Reduce on-site wiring operations after eauipment or vehicles leave the production shop to improve production efficiencyand reduce quality risks of wiring
X915
Brand:SiRON
8538900000
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Type selection reference
Connectorcorenumber
| Model | Pin(Maleinsert) | X915-4M | X915-9M | |||||||||||||||||||||||
| Jack(Femaleinsert) | X915-4F | X915-9F | ||||||||||||||||||||||||
| Appearance |  | |||||||||||||||||||||||||

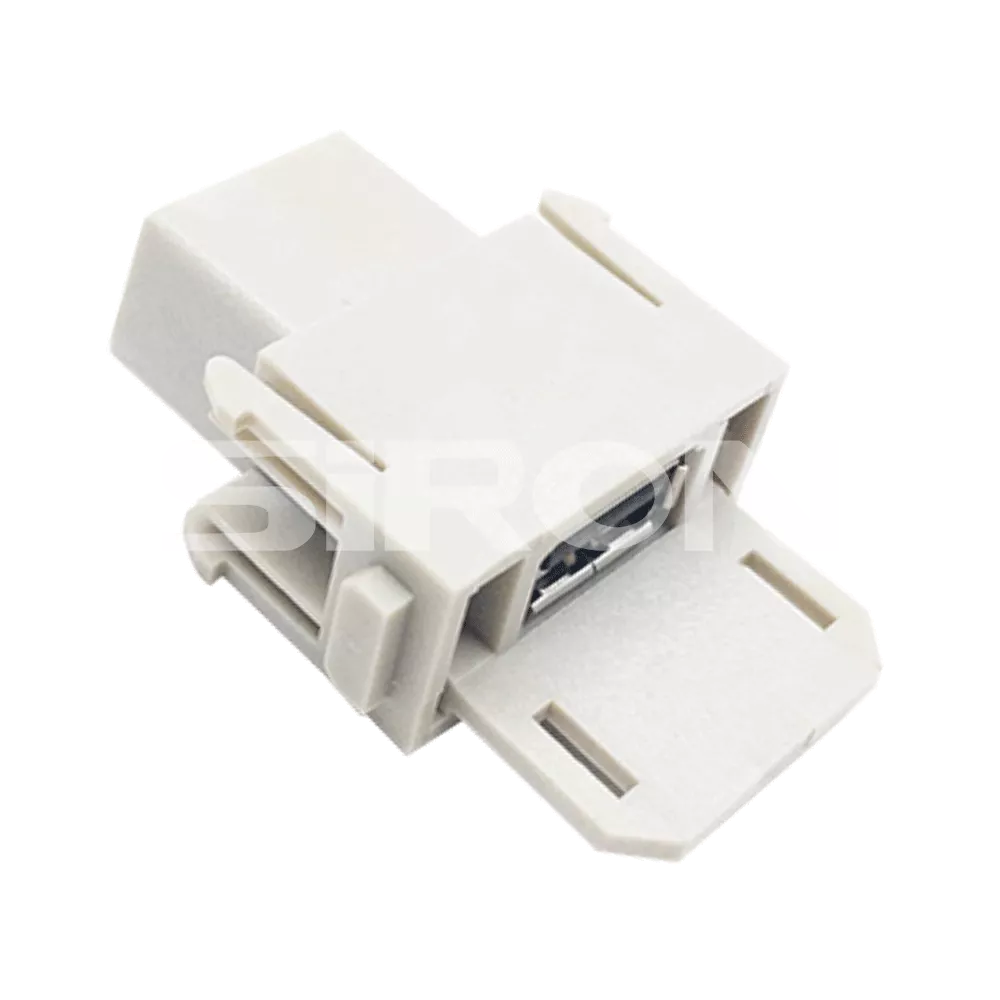

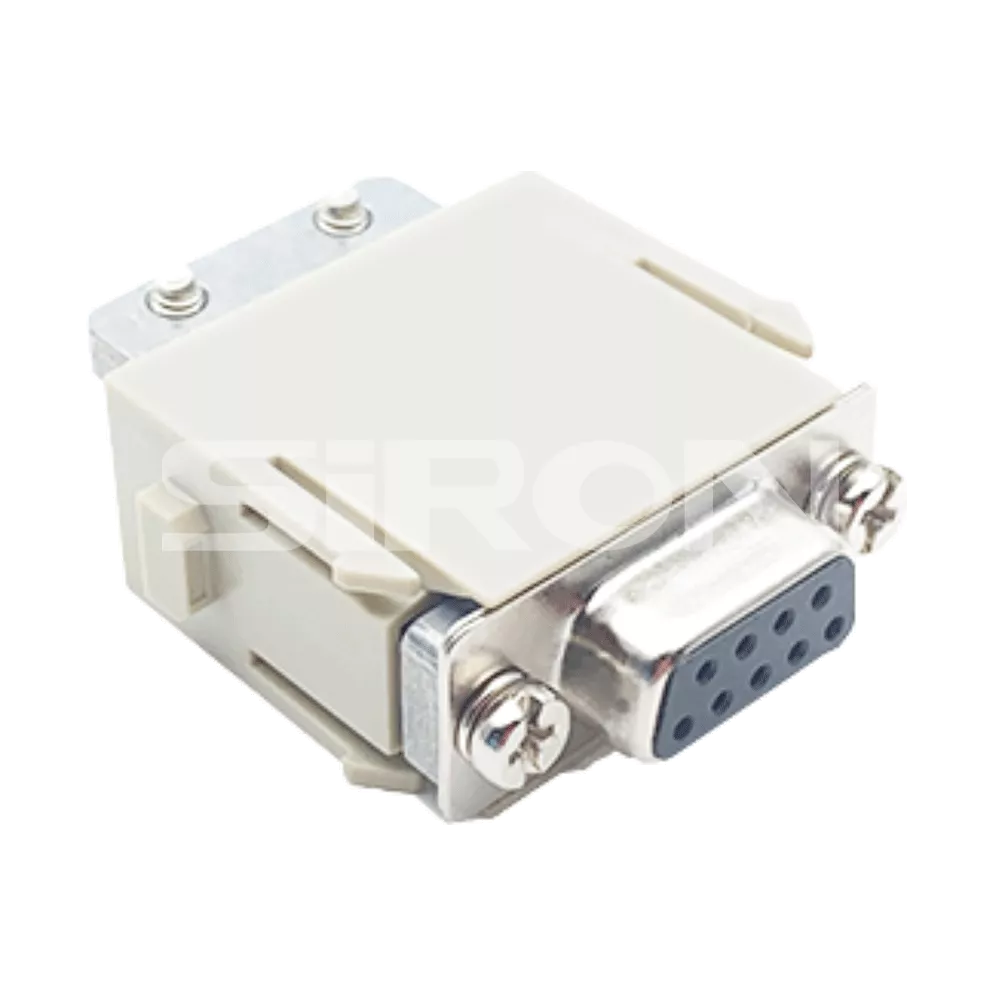

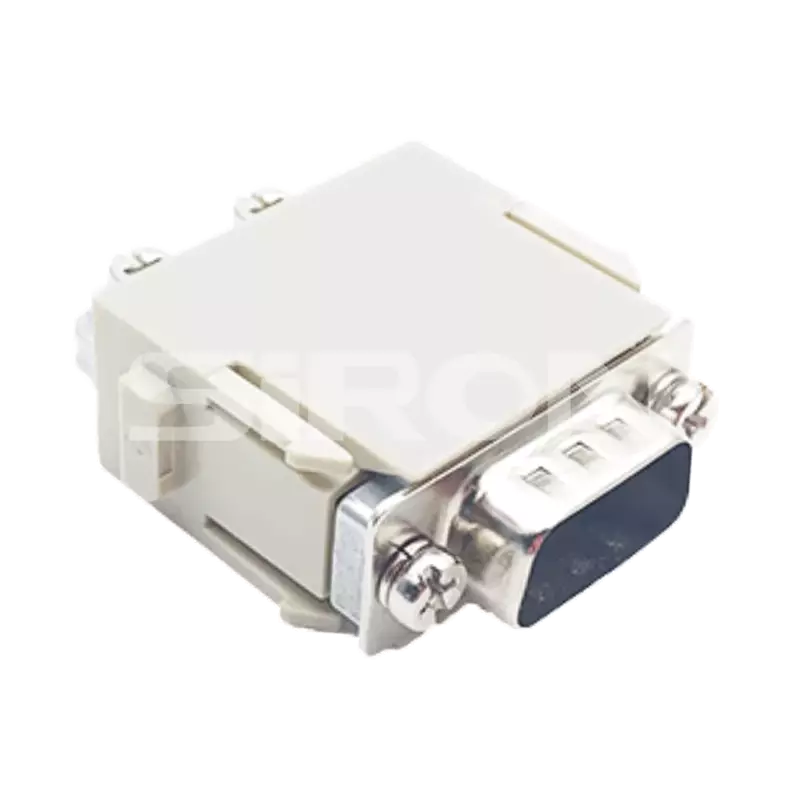

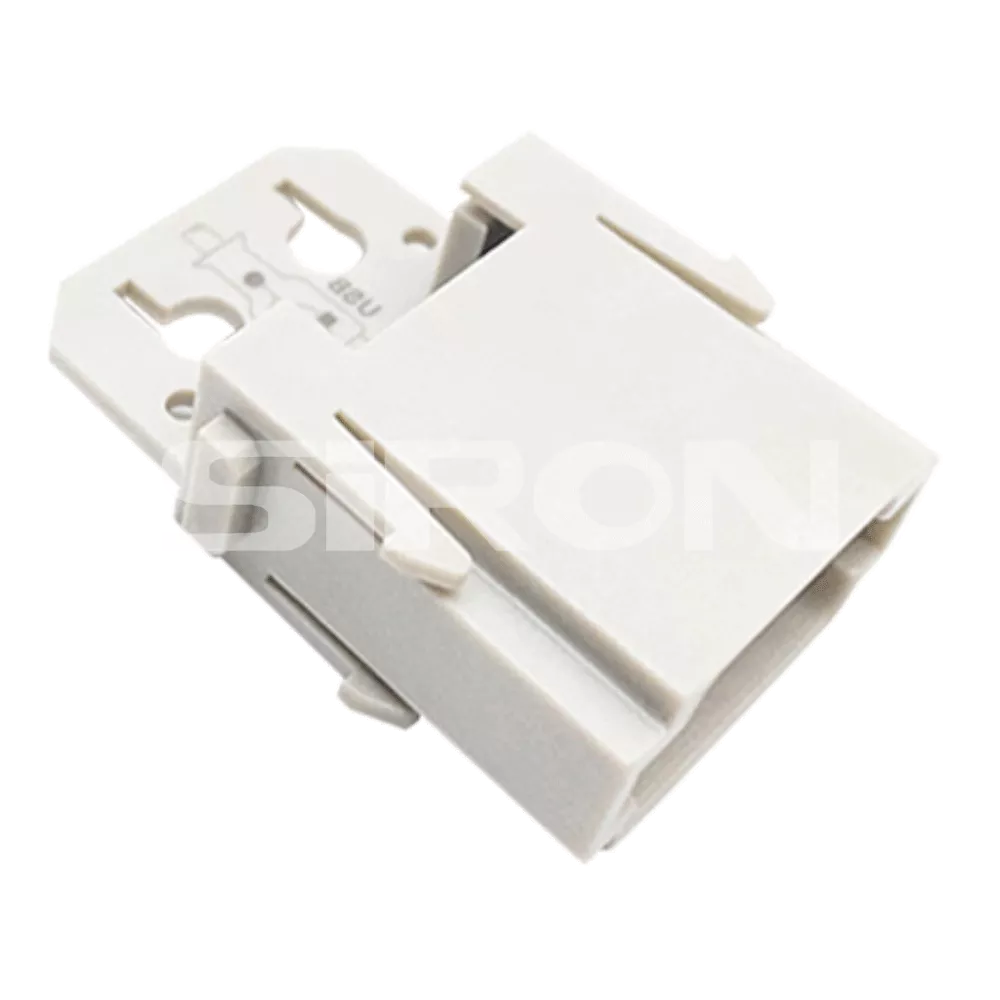

| Module name | USB module | DB9 module | ||||||||||||||||||||||||
| Connector core number | 4 | 9 | ||||||||||||||||||||||||
| Working current | 1A | 5A | ||||||||||||||||||||||||
| Working voltage | 50V | 50V | ||||||||||||||||||||||||
| Ratedimpulse voltage | 0.8KV | 0.8KV | ||||||||||||||||||||||||
| Pollution degree | 3 | 3 | ||||||||||||||||||||||||
| Operating temperature range | - | -40℃~+125℃ | ||||||||||||||||||||||||
| Flame retardant classUl94 | - | vo | ||||||||||||||||||||||||
| Number of insertions | - | ≥500 | ||||||||||||||||||||||||
| Structural location | 1 | |||||||||||||||||||||||||
| Assorting | Metal frame | X937-1 series | ||||||||||||||||||||||||
| Plastic frame | X937-2 series | |||||||||||||||||||||||||
