- A cable with a characteristic impedance of 100 ohms for Ethernet data transmission;
- 26AWG/7 stranded bare copper conductor;Foam PE, HDPE insulation, PVC/PUR sheath;Super Category 5/Super
- Category 6/Category 7/Shielded Industrial Ethernet Cable;
- The wire specifications have UL and CE standards, which should be indicated when necessary.
X235
BrRONand:Si
Code:8544421100
Non-returnable
₹5,000.00
Product Details
Product Description
Order

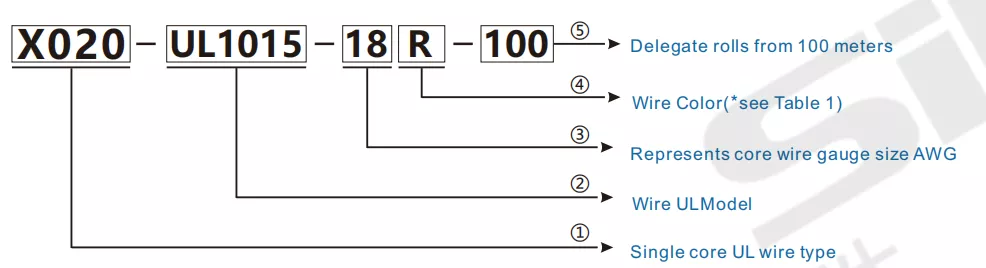

Notice：The above is standard cable model. f you want to usethe chain wire, Please sign "T" after the model.Please contact sales for more details.
T05:05 means that the number of drag chain is 5 million times; T10:10 means that the number of drag chains is 10 million.
Specification
Model | X235-2 | X235-2T05 | X235-2T10 |
| Types | Category 5E/Shielding (covering 85%) | Super Category 5 / shielding (covering 85%), drag chain count 5 million times | Super Category 5 / shielding (covering 85%), drag chain count 10 million times |
| Conductor resistance | ≤148Ω/km | ||
| Insulation resistance | ≥5000MΩ ·km | ||
| Resistance unbalance | ≤2% | ||
| Capacitance unbalance | ≤160pF/100m | ||
| Min bending radius | -20℃~75℃ | ||
| Resistance | -20℃~55℃ | ||
| Flame resistance | FT2,IEC 60332-1-2, VW-1 | ||
| Voltage | 30V | ||
| Pressure | Dielectric Strength(0.5kV/min,AC) | ||
| Adapter end | A casing with metal shielding and gold-plated pins | ||
| Dielectrc strength | DC1KV for 1min | ||
| Nom.MMutu apacitance | ≤5.6nF/100m | ||
| Operating temperature | Fixed: 4D(cable diameter) | ||

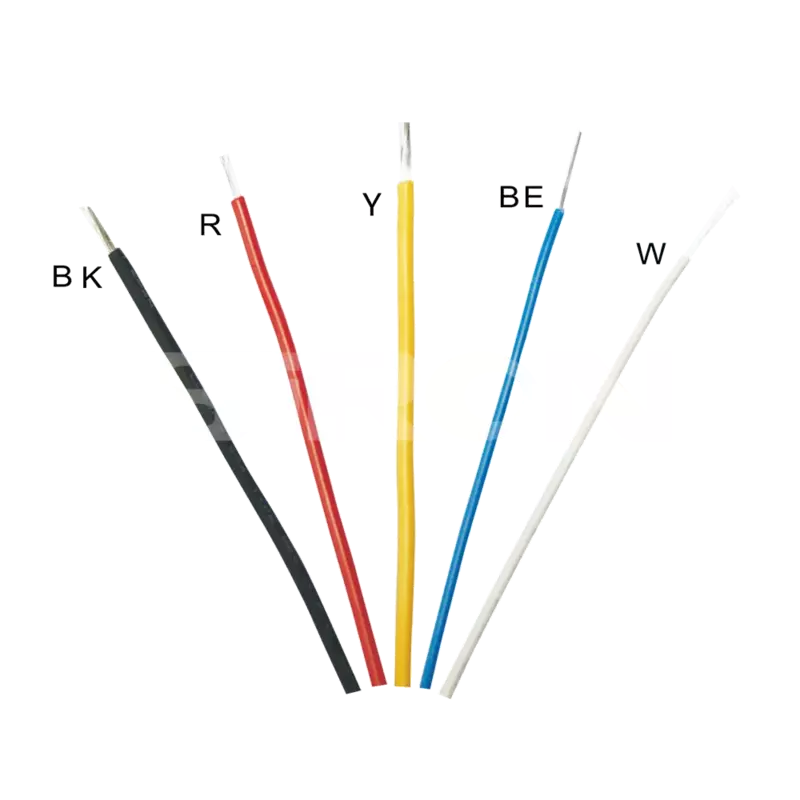

| Line color | Water blue/purple/green | ||
Transmission performance
| (MHz) | (dB)max | (dB)min | (dB)min | (dB)min | (dB)min | (dB)min |
| 1 | 2.1 | 19.0 | 60.0 | 57.0 | 58.6 | 55.6 |
| 4 | 3.9 | 19.0 | 54.8 | 51.8 | 46.6 | 43.6 |
| 8 | 5.5 | 19.0 | 50.0 | 47.0 | 40.6 | 37.5 |
| 10 | 6.2 | 19.0 | 48.5 | 45.5 | 38.6 | 35.6 |
| 16 | 7.9 | 19.0 | 45.2 | 42.2 | 34.5 | 31.5 |
| 20 | 8.9 | 19.0 | 43.7 | 40.7 | 32.6 | 29.6 |
| 25 | 10.0 | 18.0 | 42.1 | 39.1 | 30.7 | 27.7 |
| 31.25 | 11.2 | 17.1 | 40.5 | 37.5 | 28.7 | 25.7 |
| 62.5 | 16.2 | 14.1 | 35.7 | 32.7 | 22.7 | 19.7 |
| 100 | 21.0 | 12.0 | 32.3 | 29.3 | 18.6 | 15.6 |
