Product Description

Selection reference

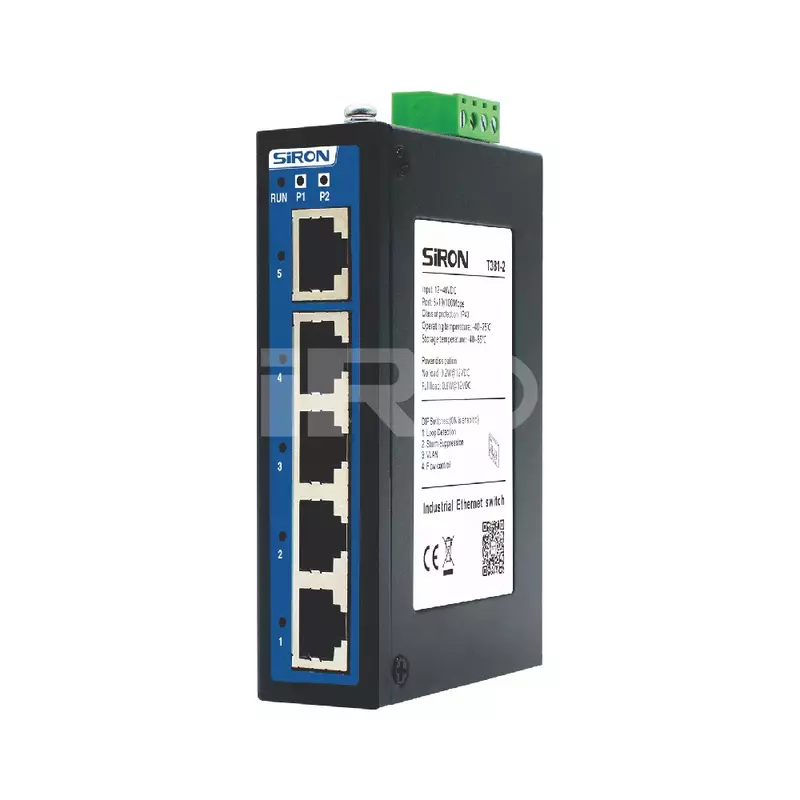

Model	T381-2
Electrical interface	5
Speed	100M
Power source	12/24/48 VDC(9~60VDC)
Port description	5x10/100Mbps RJ45 port

Specification

Rj45 port			10/100 BASE-T(X)adaptive RJ45,full-duplex/half-duplex mode adaptive, MDI/MDI-Xautomatic detection
Standards and protocols			10Base-T,in accordance with IEEE802.3;100Base-TX,in compliance with IEEE 802.3 Flow control,in accordance with IEEE 802.3x;VLAN follows IEEE 802.1Q
Dip switch			1-loop detection、2-Storm suppression、3-VLAN、4-fluid control
Input terminal			t adopts 4-digit 5.08mm pitch terminal blocks and supports reverse connection preventi
Switch properties	Transmission mode		store and forward
	Switching delay		<10μs
	MAC address		2K
	Backplane bandwidth		1G
	Power dissipation		Empty       load:0.2W@12VDC;Full       load:0.8W@12VDC
Machine structure	Shell		TP40 protection grade,metal casing
	Install		DIN rail mounting
Pilot lamp			Power indicator light,operation indicator light,interface indicator light
Operating temperature			-40~75℃
Storage temperature			-40~85℃
Relative humidity			5%~95%(no         condensation)
Mean time between failures			300,000     hours
Industry standard		IEC61000-4-2(ESD,electrostatic   discharge   Immunity),Level   3 IEC61000-4-4(EFT,Electrical  Fast  Transient  Pulse  Immunity),Level  3 IEC   61000-4-5(Surge,wave   impulse   immunity),Level   3Impact: IEC  60068-2-27Free  fall: IEC     60068-2-32Vibration: IEC  60068-2-6
