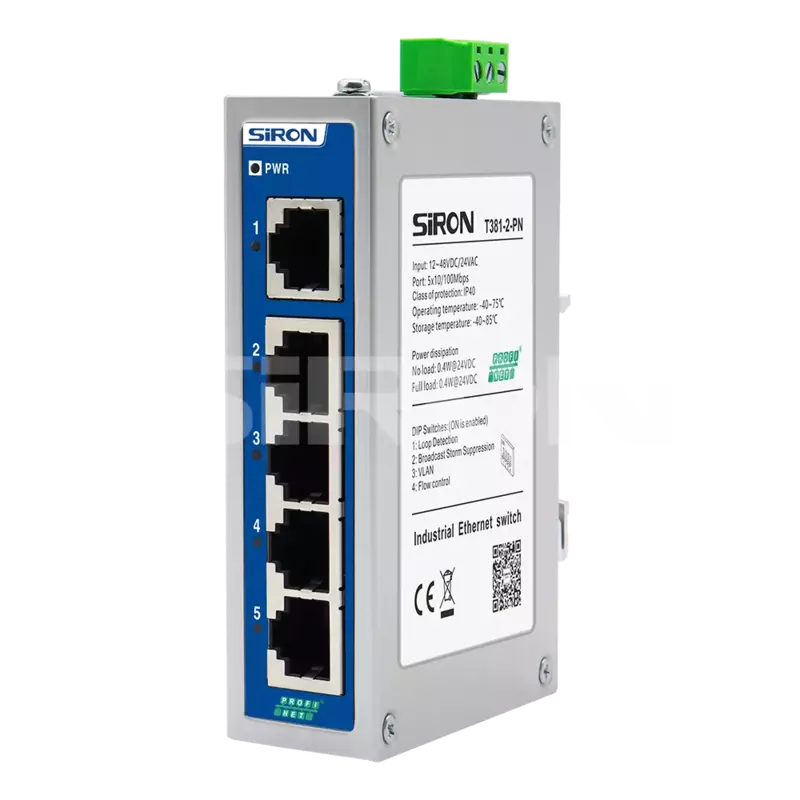

Motion Control SiRON T381-2-PN Unmanaged 5 ports Profinet protocol High-precision Industrial Switch
SiRON T381-2-PN Unmanaged 5 ports Profinet protocol High-precision Industrial Switch
Provide 5 10/100Mbps electrical ports, support Profinet protocol priority transmission; Support wide temperature design -40℃~75℃ to meet harsh environment application requirements; Support anti-reverse connection, support built-in overcurrent 3.0A protection; Support storm suppression, flow control, one-click VLAN, loop detection and other functions, fanless, low power design; Support IP40 protection rating, metal housing DIN rail mounted or wall mounted
Model: T381-2-PN
Brand: SiRON
Code: 8517621900
Product Details
Product Description
Selection reference
Model T381-2-PN Electrical interface 5 Speed 100M Power source 12~48VDC or 24VAC Port description 5x10/100Mbps RJ45 port
Specification
Rj45 port 10/100 BASE-T(X)adaptive RJ45,full-duplex/half-duplex mode adaptive, Standards and protocols Dip switch 1-loop detection、2-Storm suppression、3-VLAN、4-fluid control Input terminal adopts 4-digit 5.08mm pitch terminal blocks and supports reverse connection preventi Switch Transmission mode store and forward Switching delay <10μs MAC address 2K Backplane bandwidth 1G Power dissipation Empty load:0.2W@12VDC;Full load:0.8W@12VDC Machine Shell IP40 protection grade,metal casing Install DIN rail mounting Pilot lamp Power indicator light,operation indicator light,interface indicator light Operating temperature -40~75℃ Storage temperature -40~85℃ Relative humidity 5%~95%(no condensation) Mean time between failures 300,000 hours Industry standard IEC61000-4-2(ESD,electrostatic discharge Immunity),Level 3
