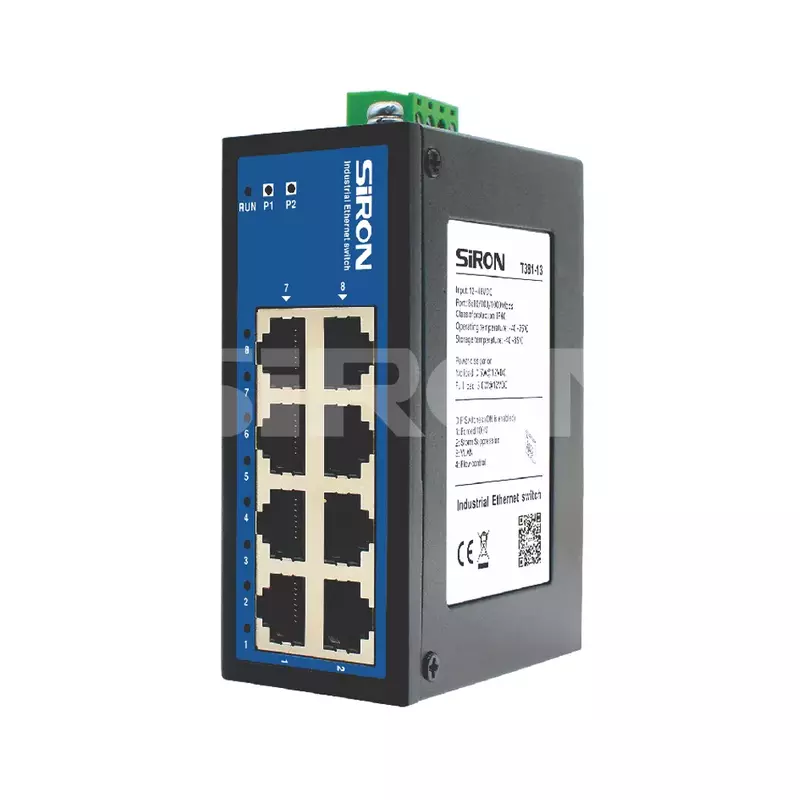

Motion Control SiRON T381-13 Unmanaged 8 ports High-precision Industrial Switch
SiRON T381-13 Unmanaged 8 ports High-precision Industrial Switch
Provide 8 x 10/100/1000Mbps electrical por ts; Support wide temperature design, -40°C~75°C, meet the requirements of har sh environment applications; Support storm suppression, flow control, one-click VL AN, forced 100 megabit and other functions; Support dual power supply redundancy, fanless, low-power design; Support IP40 protection level, metal shell DIN rail mounting.
Model: T381-13
Brand: SiRON
Code: 8517621900
Product Details
Product Description
Selection reference
Model T381-13 Electrical interface 8 Speed 1000M Power source 12/24/48 VDC(9~60VDC) Port description 8x10/100//1000Mbps RJ45 port
Specification
Rj45 port 10/100/1000 BASE-T(X)adaptive RJ45,full-duplex/half-duplex mode adaptive, Standards and protocols Dip switch 1-loop detection、2-Storm suppression、3-VLAN、4-fluid control Input terminal t adopts 4-digit 5.08mm pitch terminal blocks and supports reverse connection preventi Switch Transmission mode store and forward Switching delay <10μs MAC address 4K Backplane bandwidth 16G Power dissipation Empty load:0.2W@12VDC;Full load:0.8W@12VDC Machine Shell TP40 protection grade,metal casing Install DIN rail mounting Pilot lamp Power indicator light,operation indicator light,interface indicator light Operating temperature -40~75℃ Storage temperature -40~85℃ Relative humidity 5%~95%(no condensation) Mean time between failures 300,000 hours Industry standard IEC61000-4-2(ESD,electrostatic discharge Immunity),Level 3
