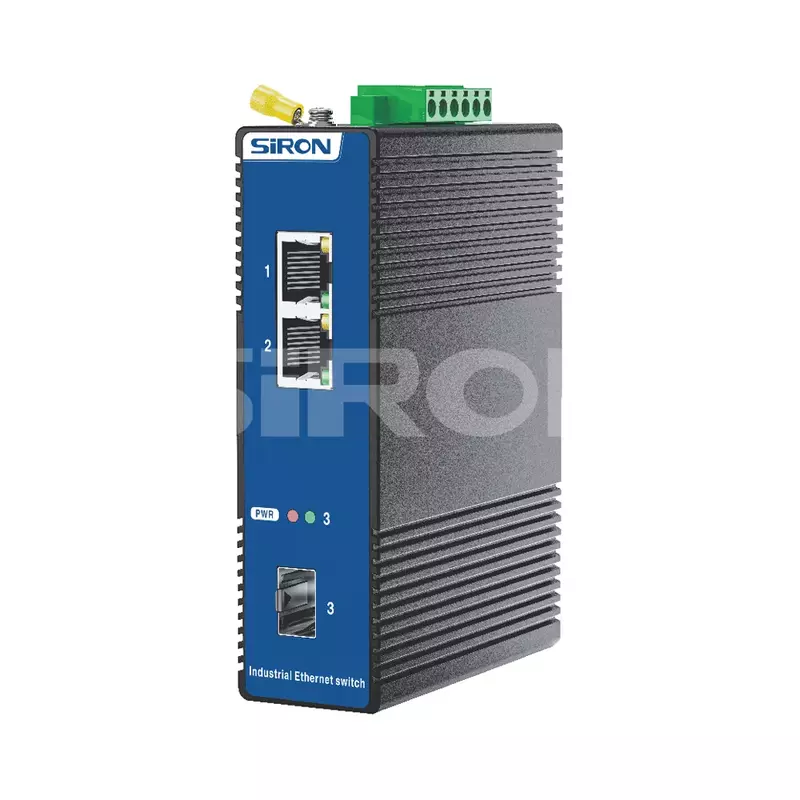

Motion Control SiRON T380-32 Unmanaged 1 Optical 2 Power Industrial Switch
SiRON T380-32 Unmanaged 1 Optical 2 Power Industrial Switch
Two 10/100/1000Mbps lower electrical ports to one 1000Mbps SFP upper optical port;SC/LC/FC/ST/SFP optical interface optional, extensible IEEE802.3af(15.4W)/at(30W);Support wide temperature design -40℃~85℃ to meet harsh environment application requirements;Support dual power supply redundancy backup, built-in overcurrent 4.0A protection, anti-protection input power supply,EMC industrial level 4 electromagnetic interference;Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.
T380-31
Brand:SiRON
Code:8517621900
Product Details
Product Description
Selection reference
| model | T380-32 | T380-32A | T380-32E | T380-32E-A |
| Electrical interface | 1 |
| Opticalport | 2 |
| Speed | 1000M |
| Power source | DC12-52V | DC48-52V |
Port description | 2x10/100/1000Mbps
RJ45 port，
1x1000Mbps SFP Fiber | 2x10/100/1000Mbps
RJ45 port 1x1000Mbps
SC Fiber Interface(BIDI,20KM,
TX1310/RX1550nm) | 2x10/100/1000Mbps
RJ45 POE port，
1x1000Mbps SFP Fiber | 2x10/100/1000Mbps
RJ45 POE port，
1x1000Mbps
SC Fiber Interface(BIDI,20KM,
TX1310/RX1550nm) |
Specification
| Rj45 port | 10/100/1000BaseT (X)automatic detection;Full/half-duplex MDI/MDI-X adaptive |
| Network protocol | IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T;
IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; |
| PoE(optional) | PoE standard:Complies with IEEE802.3af/IEEE802.3at;
Maximum single port:15.4W(IEEE 802.3af);Maximum single port:30W(IEEE 802.3at);
PoE compatibility :IEEE 802.3af/at adaptive PoE port output voltage:DC48-52V; PoE power supply core:1/2+,3/6- |
|
| Access terminal | Phoneix |
| Mean time between failures | 300,000 hour |
Switch
properties | Backplane bandwidth | 6Gbps | Mechanical
characteristic | Shell | IP40 protection grade,metal casing |
| Application level | Two layers | Install | DIN rail mounting,wall-mounted installation |
| Paktfowardng naledftewhcleslem | 4.464Mpps | Heat dissipation mode | Natural cooling,fanless |
| MACtable | 2K | Working
environment | Operating temperature | -40~85℃(-40~185°F) |
| Packet buffer | 1M | Storage temperature | -40~85℃(-40~185°F) |
| Delay time | <3μs | Relative humidity | 5%~95%(without condensation) |
| Switching mode | Store-forward |
LED index | Power indicator light | PWR |
| Overall powe consumption | <3W(Non POE) | Interface indicator | Electrical port,optical port(Link/ACT) |
| Industry standard | EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
IEC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT):PowerPort:±4kV;Data Port:±2kV
IEC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI):30V cont.300V,1s
IEC 60068-2-27(Shock)/IEC 60068-2-32(Freefall)/IEC 60068-2-6(Vibration) |
