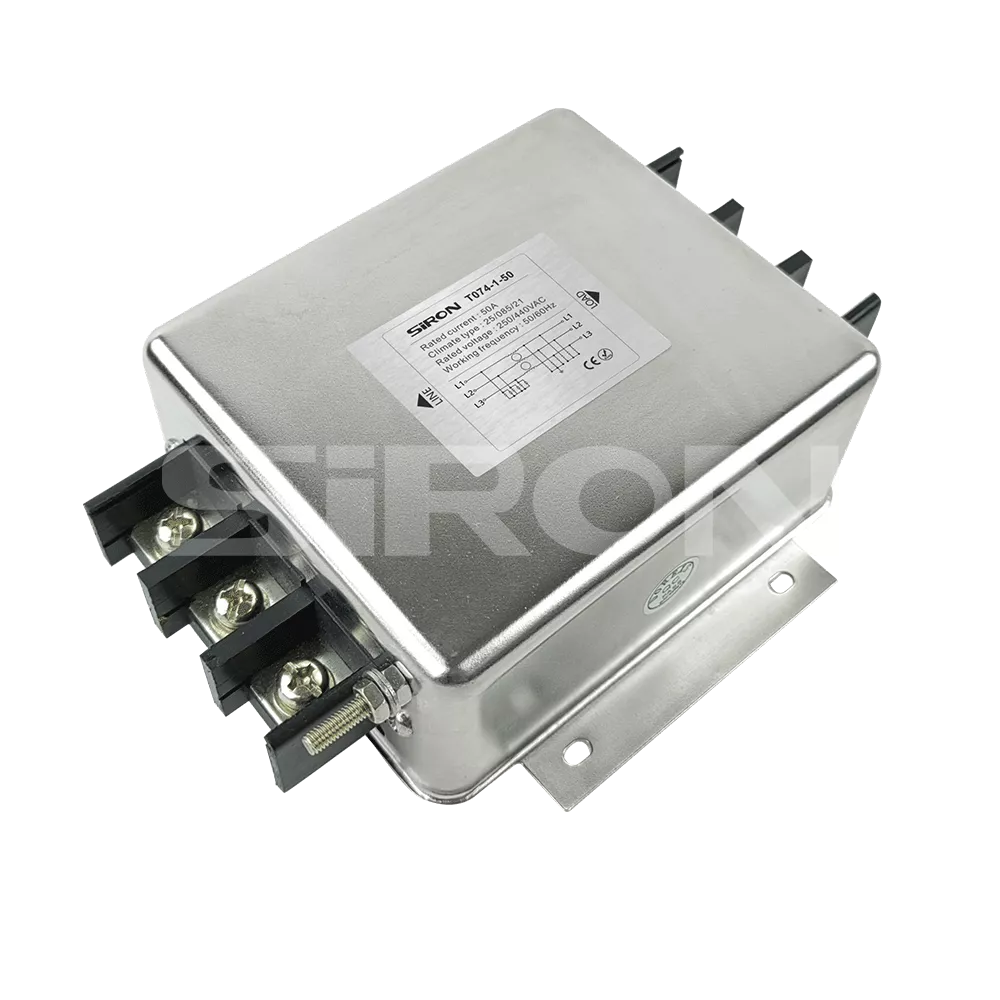

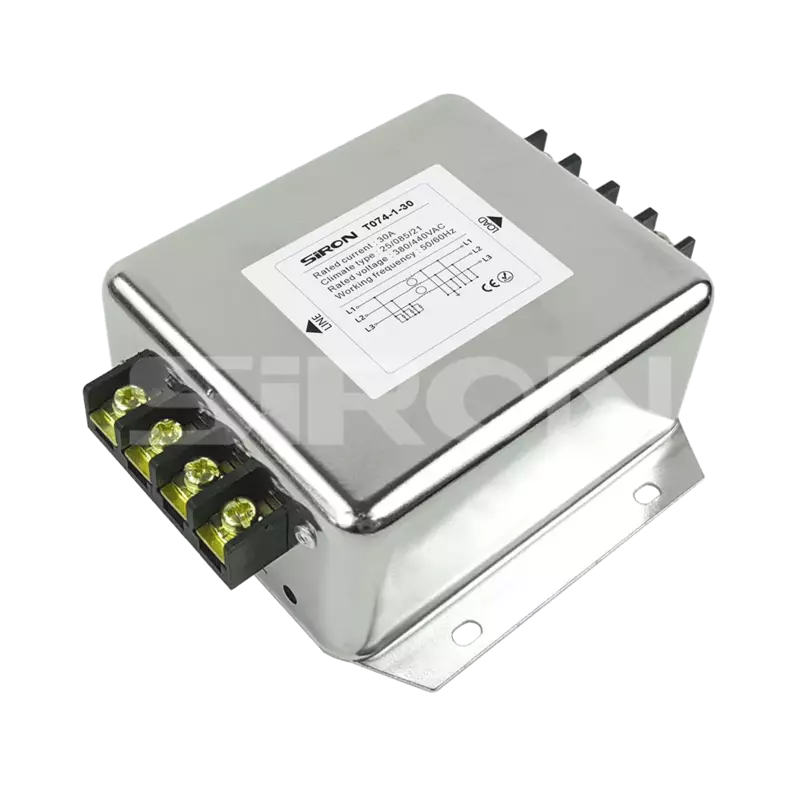

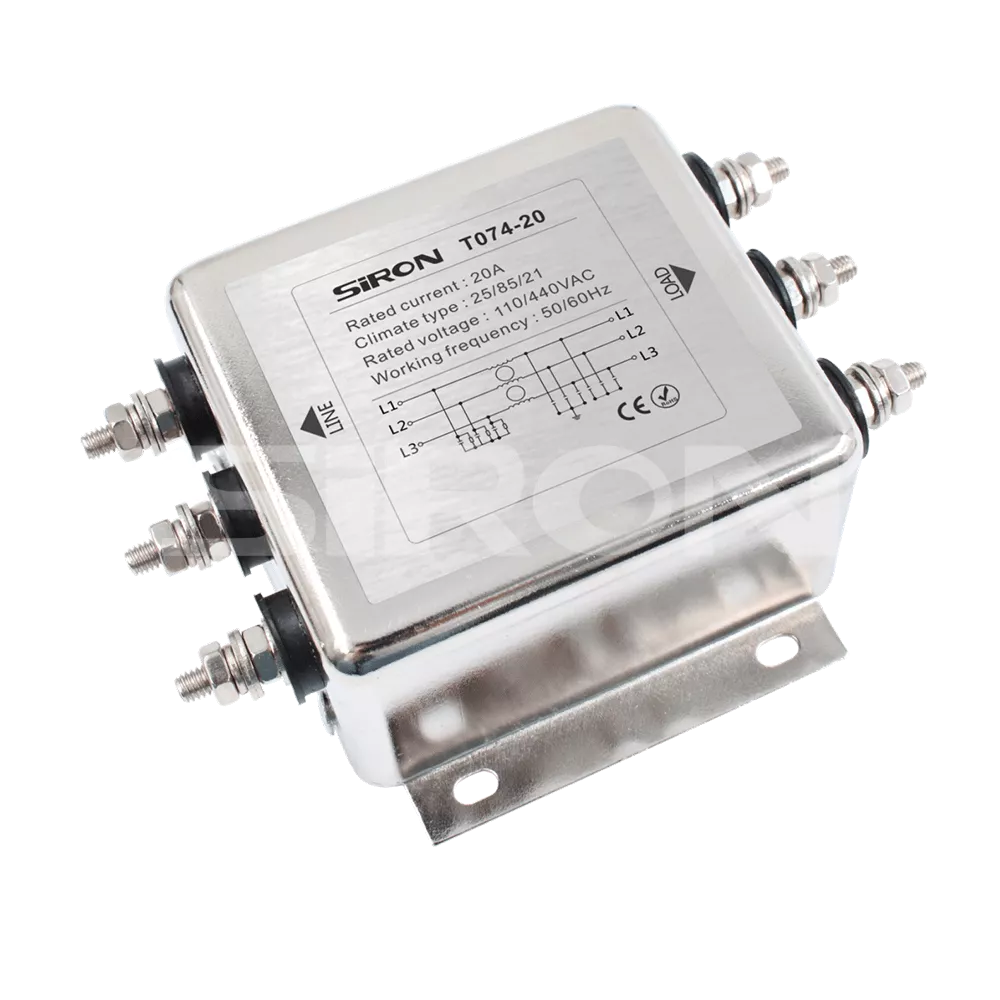

SiRON T074/T074-1Series Three-phase Three-wire Filter(screw)
- Easy to install, using bolt connection;
- Strong anti-interference, good low frequency performance;
- Suitable for three-phase three-wire power supply equipment;
- Filter rated current 80-200A, can be used for high current equipment.
T074/T074-1
Brand:SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T074-10 | T074-20 | T074-30 | T074-40 | T074-50 | T074-60 |
| Rated current | 10A | 20A | 30A | 40A | 50A | 60A |
| Leakage current | 15mA | 2.0mA |
| Voltage rating | 110/440V |
| Operating frequency | 50/60Hz |
|
| Testing voltage | Wire-wire: 1500VDC; Wire-ground: 2500VAC |
| Insulation resistance | >200MΩ@500VDC |
| Climate type | 25/085/21 |
| Connection method | Screw-fixed type |
|
| Environment temperature | -25~85℃ |
| Ambient humidity | <85% |
|
| Model | T074-80 | T074-100 | T074-120 | T074-150 | T074-200 |
| Rated current | 80A | 100A | 120A | 150A | 200A |
| Leakage current | <2.0mA | <5.0mA | <8.0mA |
| Voltage rating |
| Leakage current | 380/440VAC |
| Voltage rating |
| Operating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; Wire-ground: 2500VAC |
| Insulation resistance | >50MΩ@500VDC |
| Climate type | 25/085/21 |
| Connection method | Screw-fixed type
|
| Temperature rise | <30℃ |
|
| Housing material | nickle plated iron
|
| Environment temperature | -25~85 |
| Ambient humidity | <85% |
| Model | T074-1-10 | T074-1-30 | T074-1-40 | T074-1-50 | T074-1-60 |
| Ratedcurrent | 10A | 30A | 40A | 50A | 60A |
| Leakage current | <2.0mA | <3.0mA | <2.0mA | <20mA | <2.0mA |
| Voltage rating | 380/440VAC | 380/440VAC | 250/440VAC | 250/440V AC | 250/440VAC |
| Operating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; Line-ground: 2750VAC |
| insulation resistance | >50MΩ@500VDC |
|
| Climate type | 25/085/21 |
| Connection method | Terminal wiring |
|
