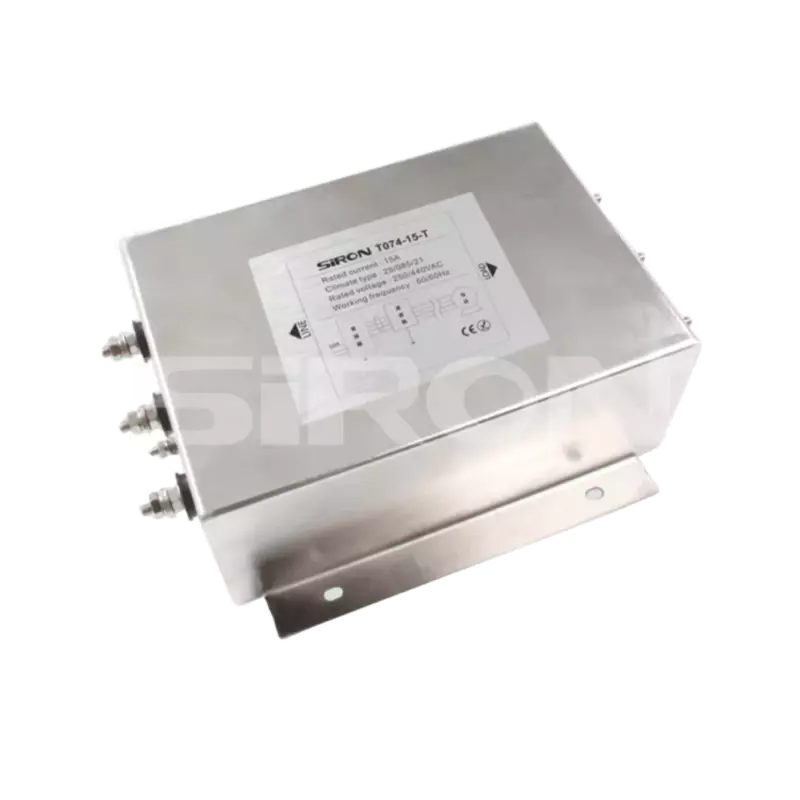

SiRON T074-T Series Three-phase Three-wire Filter (inverter Special, Output)
- Reduce frequency converter electromagnetic interference;inverter output special filter;
Suitable for inverter - UPS and other AC/DC equipment output filtering loss.
Model:T074-T
Brand:SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T074-15-T | T074-25-T | T074-30-T | T074-40-T | T074-50-T |
| Ratedcurrent | 15A | 25A | 30A | 40A | 50A |
| Conve rterpower | 7.5 | 11.0 | 15.0 | 18.5 | 22.0 |
| Model | T074-60-T | T074-80-T | T074-100-T | T074-120-T | T074-150-T |
| Ratedcurrent | 60A | 80A | 100A | 120A | 150A |
|
| Converterpower | 30.0 | 37.0 | 45.0 | 55.0 | 75.0 |
| Volitagerating | 250/440VAC |
| open rating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; Line-ground: 2250VAC |
| insulation resistance | >200MΩ@500VDC |
| cimatetype | 25/085/21 |
| Temperaturerise | <30℃ |
|
| Environmentte temperature | -25～85℃ |
| Ambienthumidity | <85% |
