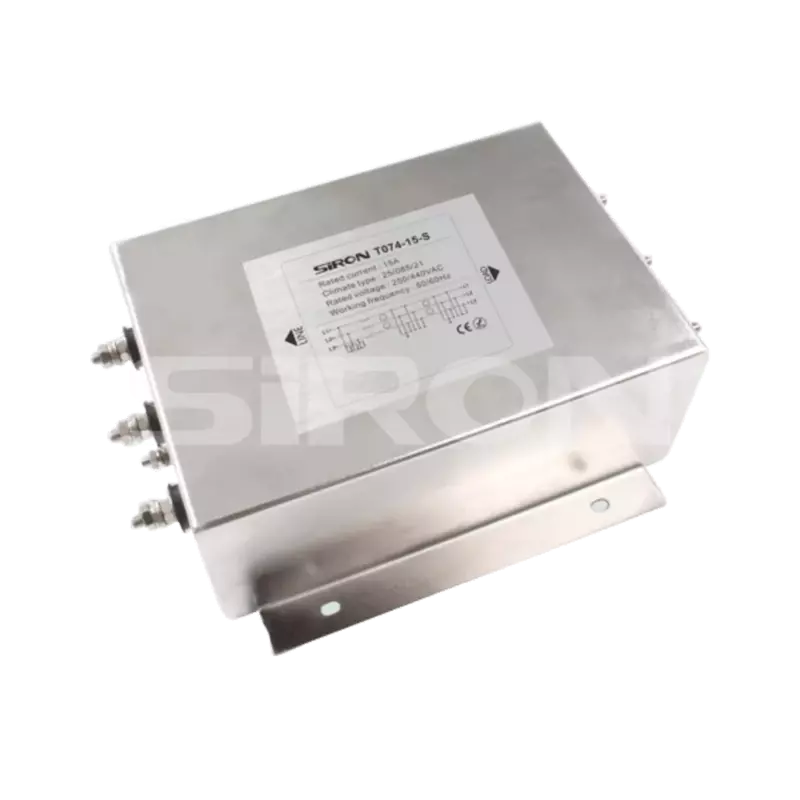

SiRON T074-S Series Three-phase Three-wire Filter (inverter Special, Input)
- Low leakage current;inverter input special filter;
- Has good inhibition effect on common mode and differential mode interference;
- For high performance, strong interference occasions of power filtering, such asfrequency control system.
T074-S
SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T074-15-S | T074-25-S | T074-30-S | T074-40-S | T074-50-S |
| Rated current | 15A | 25A | 30A | 40A | 50A |
| Leakage current | <3.0mA | <5.0mA | <5.0mA | <5.0mA | <5.0mA |
| Converter power | 7.5 | 11.0 | 15.0 | 18.5 | 22.0 |
|
| Model | T074-80-S | T074-100-S | T074-120-S | T074-150-S | / |
| Rated current | 80A | 100A | 120A | 150A | / |
| Leakage current | <20mA | <20mA | <20mA | <20mA | / |
| Converterpower | 37.0 | 45.0 | 50.0 | 75.0 | / |
| Voltage rating | 250/440VAC |
| Operating fre quency | 50/60Hz |
| Testing voltage | Line-line ： 1 5 0 0 V D C ; Line - ground ： 2 2 5 0 V A C |
| insulation resistance | >200MΩ@500VDC |
|
| climate type | 25/085/21 |
| Temperaturerise | <30℃ |
| Environment temperature | -25～85℃ |
|
| Ambient humidity | <85% |
