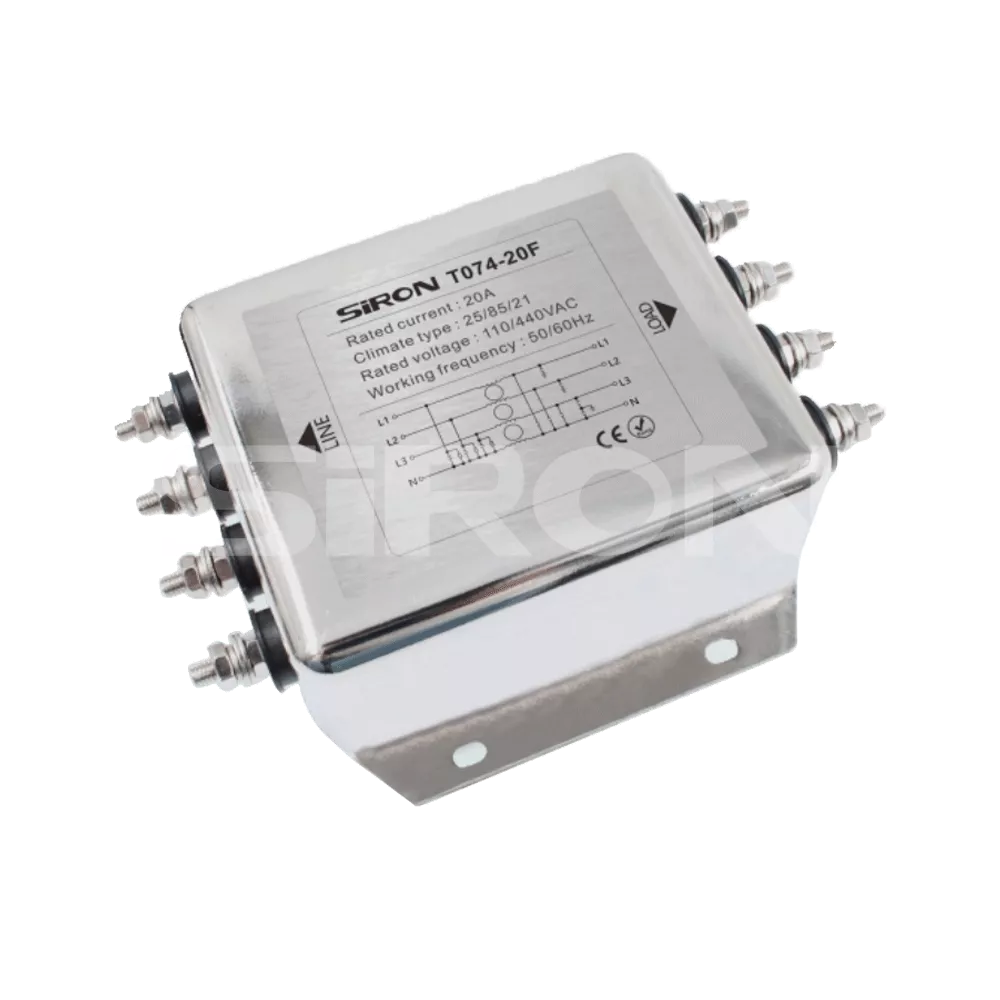

SiRON T074-F/T074-150F Series Three-phase Four-wire Filter(screw)
- Lowleakagecurrent;
- Three-phase four-wire filter;
- Can provide good performance in suppressing both CM and DM noises;
- Available for digital systems,telecom systems,medical equipments and industrial installationsts.
T074-F/T074-150F
Brand:SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T074-10F | T074-20F | T074-30F | T074-40F | T074-50F | T074-60F | T074-80F |
|
| Rated current | 10A | 20A | 30A | 40A | 50A | 60A | 80A |
| Leakage current | <2.0mA | <3.0mA | <5.0mA | <10.0mA |
| Voltage rating | 110/440V |
| Operating frequency | 50/60Hz |
|
| Testing voltage | Wire-wire: 1500VDC; Line-ground: 2750VAC
|
| Insulation resistance | >50MΩ@500VDC |
| Climate type | 25/085/21 |
| Connection method | Screw-fixed type |
|
| Environment temperature | -25~85℃ |
| Ambient humidity | <85% |
|

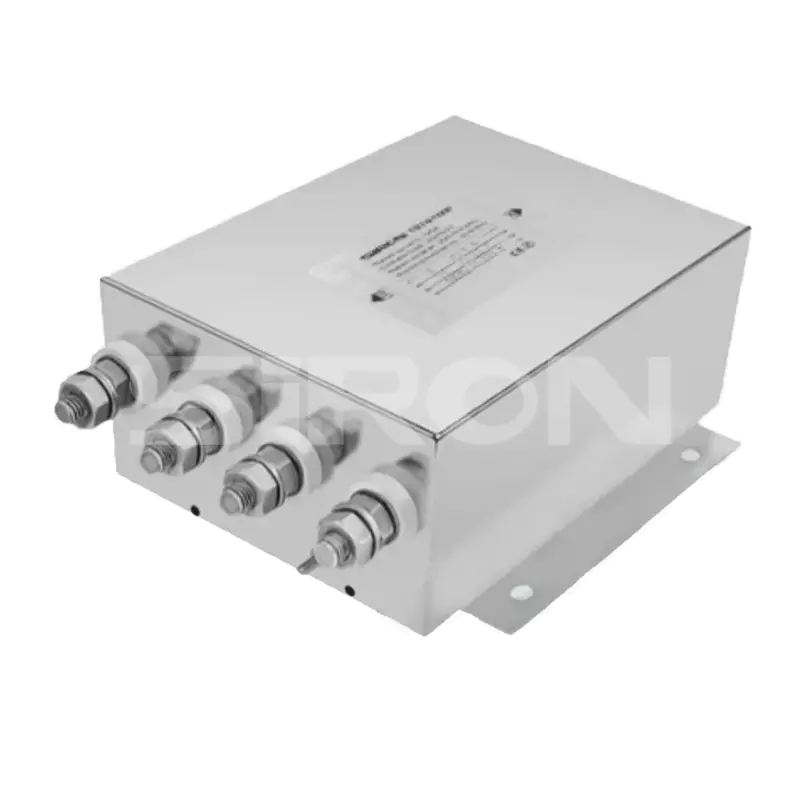

| Model | T074-150F |
| Rated current | 150A |
| Leakage current | <2.0mA |
| Voltage rating | 250/440VAC |
| Operating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; Line - ground：2250VAC |
| Insulation re sistance | >500MΩ@500VDC |
| climate type | 25/085/21 |
| tionmethod | Screw-fixed type |
| Environmenttemperature | -25～85℃ |
| Ambienthumidity | <85% |
