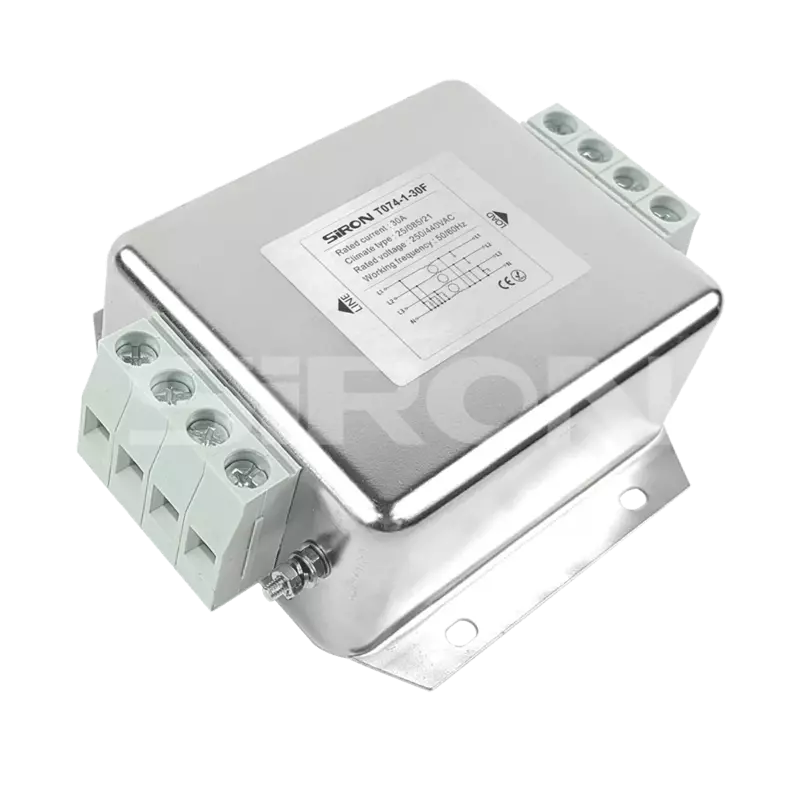

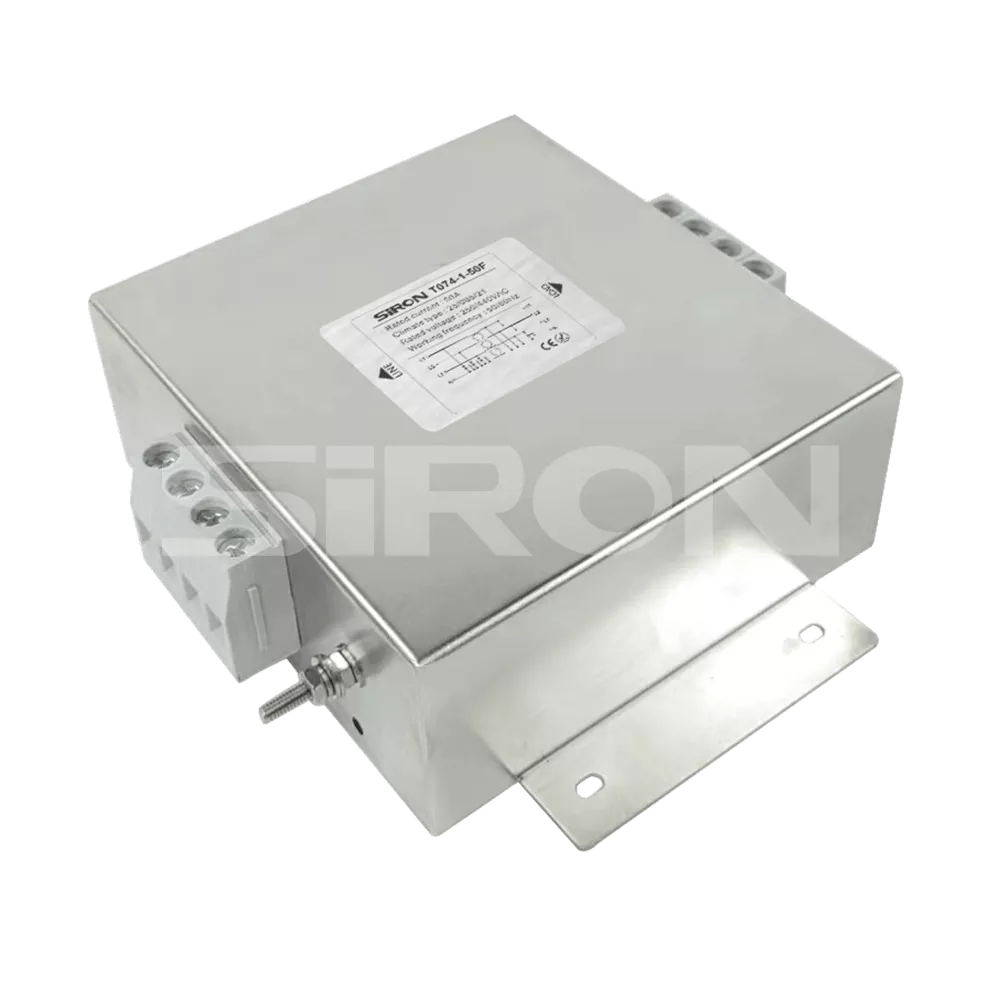

SiRON T074-1-F Series Three-phase Four-wire Filter(terminal)
- Three-phase four-wire AC 250VAC/440VAC power supply noise filter;
- Fast terminal, easy to install, safe;
- Good inhibition of common mode and differential mode interference.
T074-1-F
Brand:SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T074-1-10F | T074-1-20F | T074-1-30F | T074-1-40F | T074-1-50F | T074-1-60F | T074-1-80F |
| Rated current | 10A | 20A | 30A | 40A | 50A | 60A | 80A |
| Leakage current | <2.0mA | <3.0mA | <5.0mA | <10.0mA |
| Voltage rating | 250/440V AC |
| Operating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; Line-ground: 2750VAC
|
| insulationre sistance | >50MΩ@500VDC |
| climate type | 25/085/21 |
tionmethod | Terminal wiring |
|
Environmenttemperature | -25~85℃ |
Ambienthumidity | <85% |
