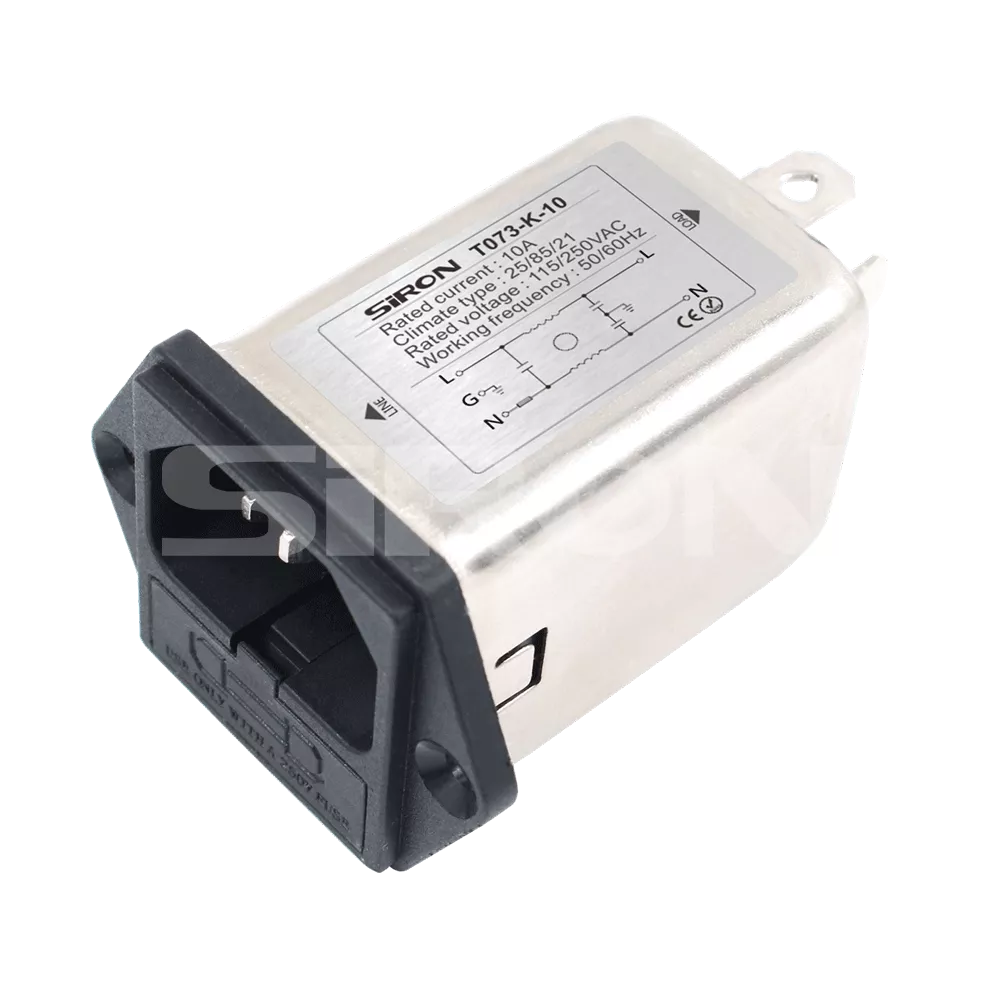

SiRON T073-K/T073-K-B IEC Socket Filter
- High ratio of performance to cost moke.Single-phase AC filters;
- IEC standard receptacle with safety tube;
- Available for mini-electronic equipments and measuring instruments.
T073-K/T073-K-B
Brand:SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T073-K-1 | T073-K-3 | T073-K-6 | T073-K-10 |
| Rated current | 1A | 3A | 6A | 10A |
| Model | T073-K-1B | T073-K-3B | T073-K-6B | T073-K-10B |
| Rated current | 1A | 3A | 6A | 10A |
| Leakage current | 0.5mA |
| Voltage rating | 115/250VAC |
| Operating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; Ground line: 1500VAC |
| Insulation resistance | >50MΩ@500VDC |
| Climate type | 25/085/21 |
| Connection method | Welded terminal type (IEC socket input, pin output.) |
| Environment temperature | -25~85℃ |
| Ambient humidity | <85% |
