- Small size,easy to install;
- Insertion loss DM up to 75dB & CM up to 50dB;
- High surge suppression capacity 2kV/4kV, 4kV/6kV;
- UItra-wide input power range: 0-305VAC/0-430VDC.
T073-E2-3~10
Brand:SiRON
Code:8536901100
Non-returnable
₹5,000.00
Product Details
Product Description

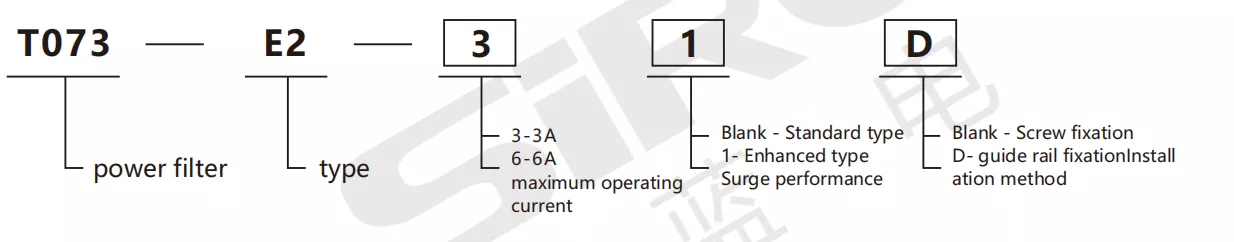

Order
Selection reference
Model | ( V A C )Operating voltage | (A) Working current | Surge performance | ||
| Nominal (range value) | Maximum value | ||||
| T073-E2-3 | T073-E2-3D | 230(0-305) | 310 | 3.0 | wire-to-wire ±2kV, wire-to-ground ±4kV |
| T073-E2-31 | T073-E2-31D | 230(0-305) | 310 | 3.0 | wire-to-wire±4kV,wire-to-ground 土6kV |
| T073-E2-6 | T073-E2-6D | 230(0-305) | 310 | 6.0 | wire-to-wire±2kV,wire-to-ground ±4kV |
| T073-E2-61 | T073-E2-61D | 230(0-305) | 310 | 6.0 | wire-to-wire±4kV,wire-to-ground 土6kV |
| Model | ( V A C )Operating voltage | (A) Working current | Surge performance | ||||||||||||
| Nominal (range value) | Maximum value | ||||||||||||||
| T073-E2-10 | T073-E2-10D | 115/230(0-305) | 310 | 10.0 | wire-to-wire±2kV,wire-to-ground±4kV | ||||||||||
| T073-E2-101 | T073-E2-101D | 115/230(0-305) | 310 | 10.0 | wire-to-wire±4kV,wire-to-ground土6kV | ||||||||||
Product Attributes
| Operating temperature | Operating temperature: -40 to +85℃ Storage temperature: -40 to +105℃ |
| Storage humidity | Max 95%RH |
| Isolation Voltage | 2000VAC(IN(L)~PE,IN(N)~PE, test time 1 minute, leakage current <3.5mA) |
Standard type: 3000VACIN(L)~PE,IN(N)~PE, test time 1 minute, leakage current <5mA | |
| Enhanced type: 2000VACIN(L)~PE,IN(M)~PE, test time 1 minute, leakage current <5mA | |
| Insertion loss(CM/DM) | 25～30dB(150kHz~1MHz) |
| 30~35B/PMHz~10MHz) | |
| 18～20dB(10MHz~30MHz) | |
| Stamping and vibration test | 10 to 50Hz,5G,30 Min. Along the X,Y,Z directions |
| Altitude | ≤5000m(atmospheric pressure 80-110kPa) |
EMC characteristics
| EMI | Conduction disturbance | CLASS B | |
| Radiation disturbance | CLASS B | ||
| EMS | Electrostatic discharge | Contact discharge: ±8kV, air discharge: ±15kV | perf.Criteria A |
| Radiation immunity | 10V/m | perf.Criteria A | |
| Pulse group immunity | ±4kV，5KHz 5/50ns ±4kV | perf.Criteria A | |
| Surge immunity | wire-to-wire ±2kV, wire-to-ground ±4kV | perf.Criteria A | |
| wire-to-wire±4kV,wire-to-ground ±6kV | perf.Criteria B | ||
| Conducted disturbance immunity | 10V r.m.s | perf.Criteria A | |
| Power frequency field immunity | 50/60Hz 30A/m | perf.Criteria A | |
