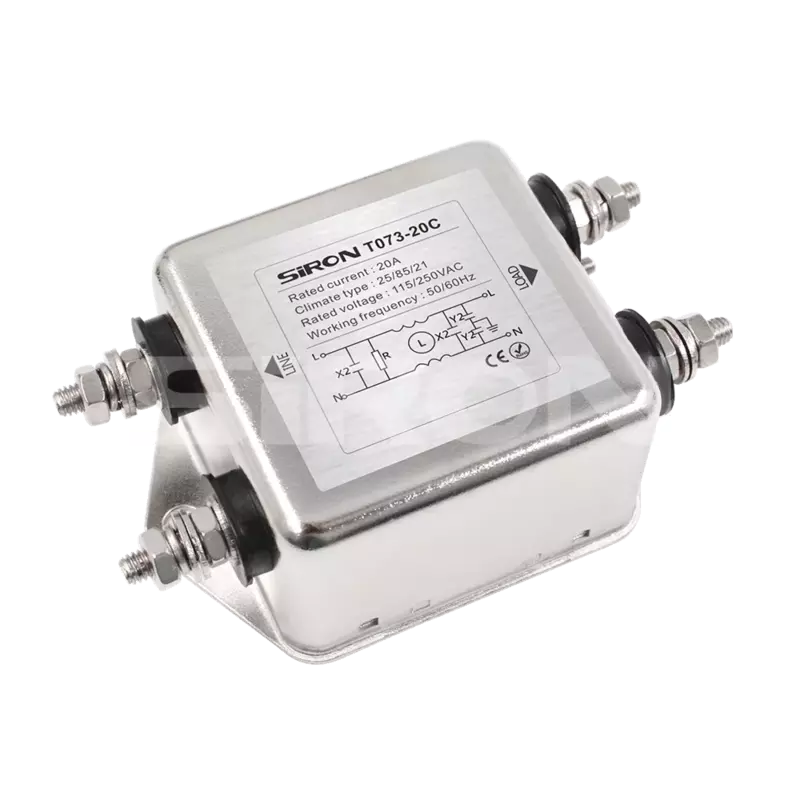

SiRON T073-C AC Single-phase Filter
- General purpose;
- Feature compact,Easy to install;
- Three-phase AC filters;
- Available for three phases,threelines series power supply equipments.
T073-C
Brand:SiRON
Code:8536901100
Product Details
Product Description
Specifications
| Model | T073-10C | T073-20C | T073-30C |
| Rated current | 10A | 20A | 30A |
| Leakage current | 0.5mA |
| Voltage rating | 115/250VAC |
| Operating frequency | 50/60Hz |
| Testing voltage | wire-wire: 1500VDC; wire-ground: 2150VAC |
| Insulation resistance | >50MΩ@500VDC |
| Climate type | 25/085/21 |
| Connection method | Screw-fixed type |
Environment temperature | -25～85℃ |
| Ambienthumidity | <85% |
| Model | T073-40C | T073-50C | T073-60C | T073-80C | T073-100C |
| Rated current | 40A | 50A | 60A | 80A | 100A |
| Leakage current | <2.0mA |
| Voitage rating | 115/250VAC |
| Operating frequency | 50/60Hz |
| Testing voltage | Wire-wire: 1500VDC; wire-ground: 2150VAC |
| Insulation resistance | >50MΩ@500VDC |
| climate type | 25/085/21 |
| Temperature rise | <30℃ |
| Connection method | Screw-fixed type |
| Environment temperature | -25～85℃ |
