- 1.5 times overcurrent capacity, remote switch, DC OK, RS485 communication;
- Support parallel (2+1 current sharing) and series, output short circuit, over current, over voltage, overtemperature protection;
- High efficiency, high reliability, output with LED indicator, 150% peak power lasts 4s;

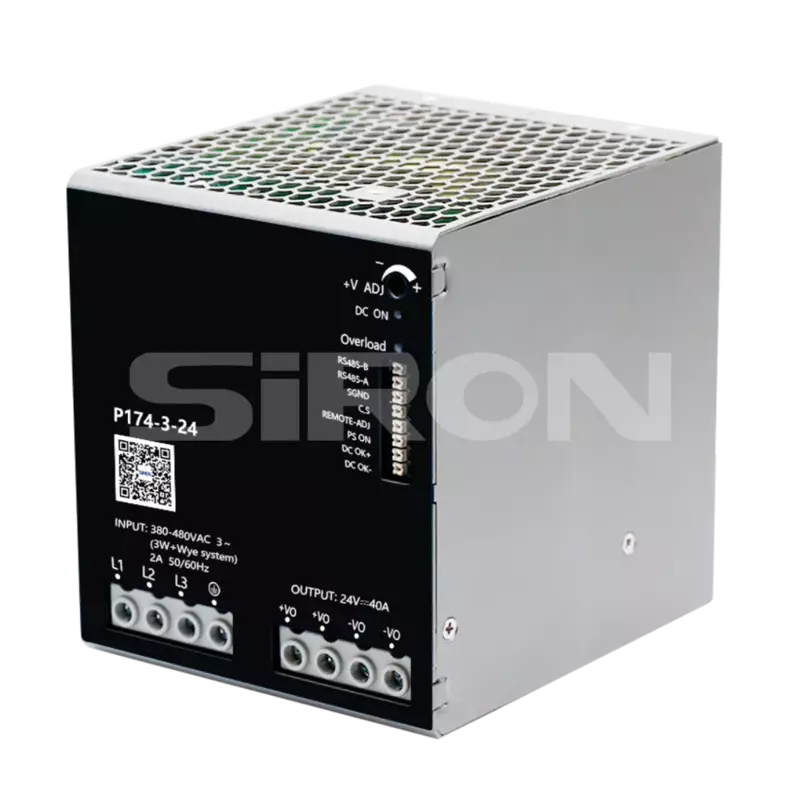

P174-3
Brand:SiRON
Code:8504401400
Non-returnable
Product Details
Product Description
Order
Selection reference
| Model | Rated output | Type | (uF) Maximum capacitiveload | ||
| Power | Voltage/current | Voltage adjustable range | |||
| P174-3-24 | 960W | 24V/40A | 24-28V | 95.3% | 40000 |
| P174-3-36 | 36V/26.6A | 36-42V | 95.4% | 20000 | |
| P174-3-48 | 48V/20A | 48-56V | 95.4% | 20000 | |
Product Attributes
| P174-3series | ||
| (@480VAC) Electric shock | Constant current protection | |
| Overcurrent Protection | Constant current protection | |
| Short circuit protection | It has long-term short-circuit protection and self-recovery | |
| solation withstand voltage | Input-output: 4kVAC, input-PE: 2.5kVAC (Test for 1 minute) Output -PE: 0.5kVAC, output -DC OK: 0.5kVAC leakage current <10mA | |
| Operating temperature | -30℃to+70℃ | |
| performance | EMI | CISPR32/EN55032 Class B;IEC/EN61000-3-2 |
| EMS | IEC/EN61000-4-2 Contact±8KV;IEC/EN61000-4-3100V/m IEC/EN61000-4-4+2KV/±4KV;IEC/EN61000-4-620 Vr.m.s IEC/EN61000-4-5/11;MS-SOP-DQC-007 | |
| Safety standard | IEC/EN/UL/BS EN62368-1,UL/EN61010-1,UL508, ANSI/ISA71.04-2013 | |

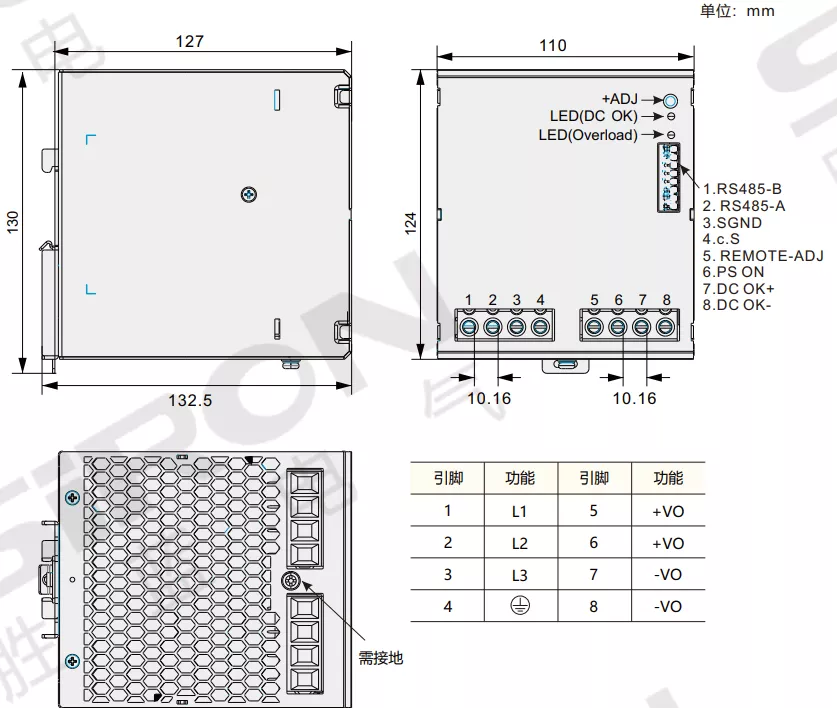

| Dimensions | 124×110×127 | |
