- 50% peak power, active PFC, DC OK function;
- Double-sided anti-paint, anti-salt spray, explosion-proof, output short-circuit, over-current, over-voltage, over-temperature protection;
- Meet 5000m altitude applications;

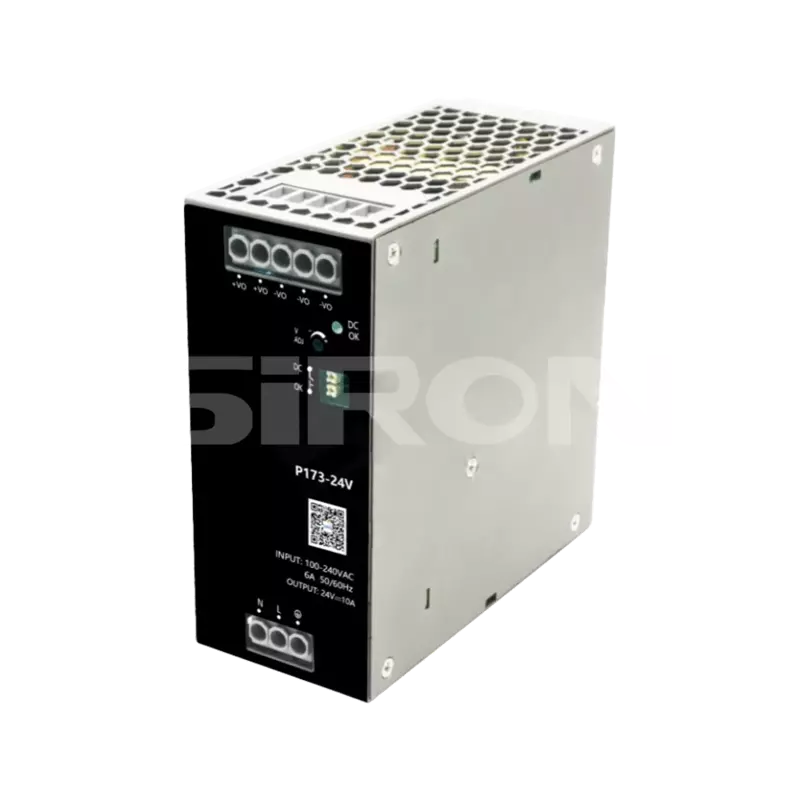

P173
Brand:SiRON
8504401400
Non-returnable
₹5,000.00
Product Details
Product Description
Order
Selection reference
Model | Rated output | Type | (uF) Maximum capacitiveload | ||
| Power | Voltage/current | Voltage adjustable range | |||
| P173-24V | 480W | 24V/5A | 24-28V | 95.0% | 100000 |
| P173-48V | 48V/2.5A | 48-56V | 95.5% | 25000 | |
Product Attributes
| Model | P171 series | |
| (@480VAC) Electric shock | Cold Start，35A | |
| Overcurrent Protection | Radius | 115%-140%lo |
| Type | Hiccupping type, self-recovering | |
| Short circuit protection | Constant current belching type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE: 2.5kVAC Output -PE: 1.5kVAC | |
| Operating temperature | -40℃to+85℃ | |
| E M C performance | EMI | CISPR32/EN55032 Class A and Class B; IEC/EN61000-3-2 Class A and Class D;EN61000-3-3 |
| EMS | IEC/EN61000-4-2 Contact±8KV,IEC/EN61000-4-320V/m, IEC/EN61000-4-4±4KV/±2KV.IEC/EN61000-4-60.15-80MHz 20Vr.m.s, IEC/EN61000-4-830A/m,IEC/EN61000-4-5/11,IEC61000-4-13 Class 3 | |
| Safety standard | IEC/EN/UL/BS EN62368-1,UL61010-1,UL508,IEC60079-0, IEC60079-7,IEC60079-15,EN60335-1,EN62477-1,ANSI/ISA71.04-2013 | |
| Wiring diameter | 16-10AWG | |
| Connector torque | Max 0.5N.m | |
| Dimensions | 124×55×127 | |
Outline
Note
Unit of size: mm[inch]ADJ: Output adjustable resistor
Wiring range: Input :20-6AWG
Output: 20-6AWG
Input terminal fastening torque: maximum 1.2N-m
Output terminal fastening torque: maximum 1.2 N-m
Guide rail type: TS35. The guide rail needs to be grounded
Unmarked tolerance: ± 1.00
