- Short circuit protection, over current protection, over voltage protection;
- International voltage input range:90 ~ 264VAC;
- Natural air cooling; Work efficiency up to 87%;
- 100% full load burn test.

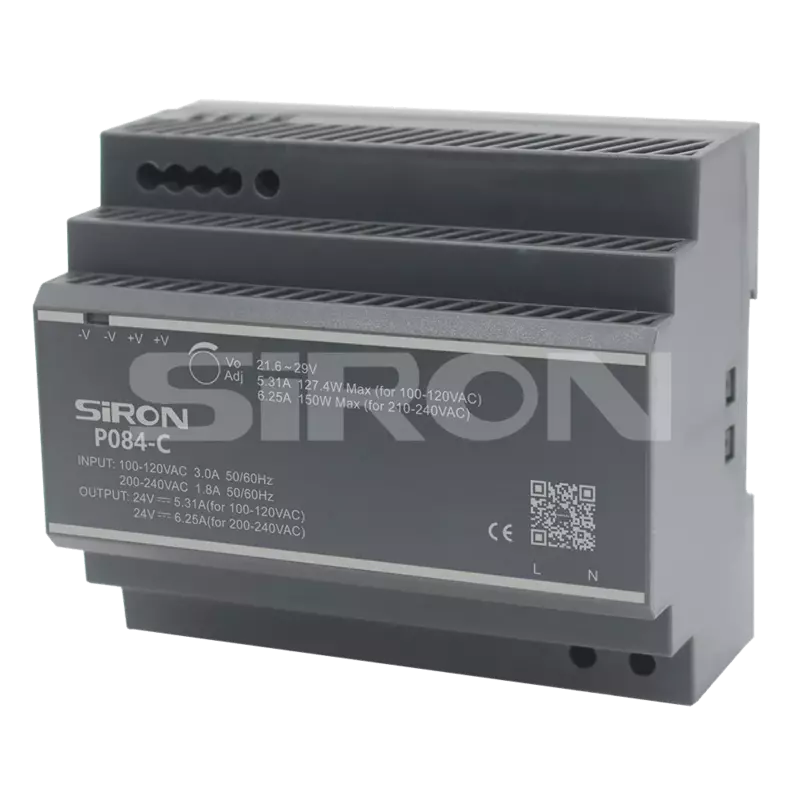

P084-C/P084-12-C
Brand:SiRON
Code:8504401400
Non-returnable
₹5,000.00
Product Details
Product Description
Order
Product Attributes
| Model | P084-C | P084-12-C |
| Dc output voltage | 24V | 12V |
| Rated current | 6.25A | 11.3A |
| Ripple &Noise(Max) | 150mVp-p | 120mVp-p |
| Voltage regulation range | 21.6~27.5V | 10.2~13.8V |
| Start&rise time | 1500ms,30ms/230VAC;2000ms,30ms/115VAC(full load) | |
| Holding time | 30ms/230VAC;10ms/115VAC(full load) | |
| Input parameter | 90~264VAC/120~373VDC;50/60Hz | |
| Efficiency | 90% | 88% |
| Input current | 3A/115VAC;1.6A/230VAC | |
| Power factor | 0.65/115VAC;0.5/230VAC | |
| Inrush current | 70A/230VAC | |
| Leakage current | <1.0mA/240VAC | |
Overload protection | 105% to 150% of the rated power | |
| Protection mode: When the output voltage is less than 50%, it is in hiccup mode. It can automatically recover after the abnormal load conditions are removed | ||
| The output voltage is in constant current mode when it is between 50% and 100%, and it can automatically recover after the abnormal load conditions are removed | ||
| Overvoltage protection | Have | |
| Protection mode: Hiccup protection | ||
| Shortcircuit protection | Short circuit between the positive and negative terminals of the output | |
| Protection mode: Hiccup mode, automatically recovers after abnormal conditions are removed | ||
| Operating environment | -30℃~70℃(Refer to the reduction curve) | |
With stand voltage | Input to output: 1000VAC; Input to ground: 1500VAC; Output to ground: 500VAC | |
| Insulation impedance | Input to output, input to ground, output to ground：100M Ohms/500VDC/25℃/70%RH | |
| Electromagnetic compatibility | GB9254 CLASS A | |
| Safety specification | Reference GB4943.1-2011 | |
| Product size | 105×90×54.5(W×H×D) | |
| Package | 0.31g;32pcs/11kg/1.0CUFT | |
Note: 1. All parameters are measured under the conditions of 230V AC input, rated load, and 25℃.
2. Ripple and noise voltages are measured when a 12-inch twisted pair with 0.1u and 47u capacitors is connected at the end of the oscilloscope in a 20 MHz bandwidth.
3. Accuracy: includes setting error, linear adjustment rate, and load adjustment rate.
4. In low input voltage conditions, the output should be reduced. Please refer to the static characteristic curve diagram for details.
5. Startup time is measured under the condition of a cold machine startup. Frequent power on/off operations may increase the startup time.
