- Short circuit protection, over current protection, over voltage protection;
- International voltage input range:90 ~ 264VAC;
- Natural air cooling; Work efficiency up to 87%;
- 100% full load burn test.

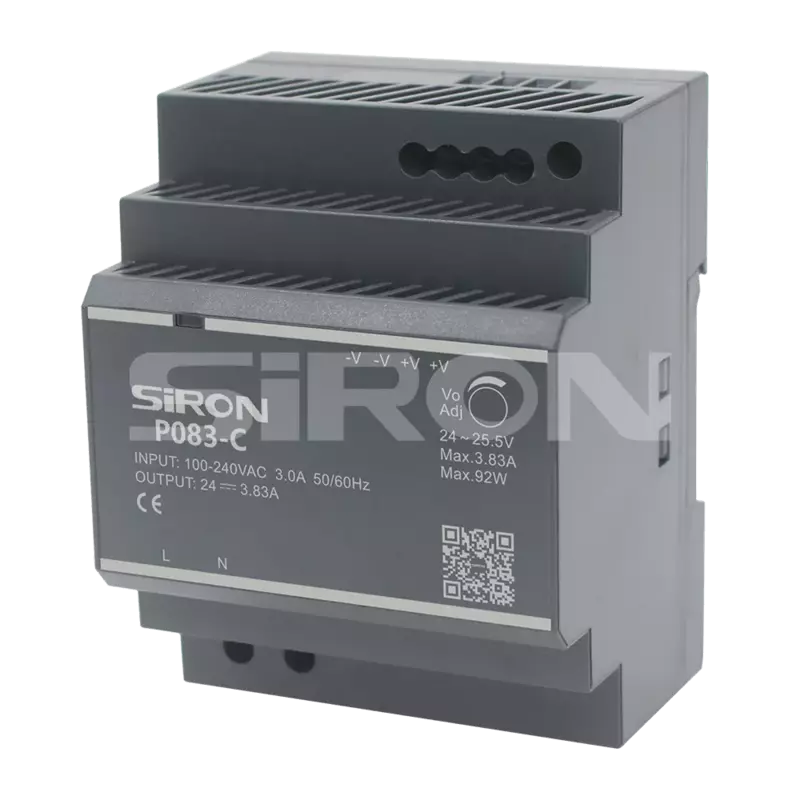

Model:P083-C/P083-12-C
Brand:SiRON
Code:8504401400
Non-returnable
₹5,000.00
Product Details
Product Description
Order
Product Attributes
| Model | P083-C | P083-12-C |
| Dc output voltage | 24V | 12V |
| Rated current | 3 . 8 3 A | 7 . 1 A |
| Current range | 0 ～ 3 . 8 3 A | 0 ～ 7 . 1 A |
| Rated power | 9 2 W | 8 5 . 2 W |
| Ripple &Noise(Max) | 2 0 0 m V p - p | 1 5 0 m V p - p |
| Voltage regulation range | 2 1 . 6 ～ 2 6 . 4 V | 1 0 . 8 ～ 1 3 . 8 V |
| Start &rise time | 2 0 0 0 m s ， 3 0 m s / 1 1 5VA C (full load) ; 1 5 0 0 m s ， 3 0 m s / 2 3 0VA C | |
| Holding time | 30ms/230VAC;10ms/115VAC(full load) | |
| Input voltage | 8 5 ～ 2 6 4VA C ； 1 2 0 ～ 3 7 0 V D C | |
| Input frequency | 4 7 ～ 6 3 H z | |
| Efficiency | 8 8 % | 85% |
| Input current | 0 . 8 8 / 1 1 5VA C ; 0 . 4 8 / 2 3 0VA C | |
| Power factor | 0 . 6 5 / 2 3 0VA C(full load) | |
| Inrush current | 4 0 A / 2 3 0VA C Cold start | |
Overload protection | Rated power1 1 0%～ 1 3 0 % | |
| Protection mode: When the output voltage is less than 50%, it is in hiccup mode. It can automatically recover after the abnormal load conditions are removed | ||
| Overcurrent protectio | 110% to 130% of the rated power | |
| Protection mode: Hiccup protection, automatic recovery after abnormal conditions are removed. | ||
| Short circuit protection | Output terminal positive and negative poles short circuit | |
| Protection mode: Hiccup mode, automatically recovers after abnormal conditions are removed | ||
| Operating environment | -30℃~70℃(Refer to the reduction curve) | |
| Working humidity | 20 - 90% RH without condensation | |
| Store temperature/humidity | -40 ℃ ~ 85 ℃, 10% ~ 95% relative humidity, no condensation | |
| Vibration resistance | 10 - 500 Hz, 5 G 10 minutes per cycle, X, Y, Z each 60 minutes | |
| Withstand voltage | Input to Output: 800VA C | |
| Insulation impedance | Input to Output:1 0 0 M h m s / 5 0 0 V D C / 2 5℃/ 7 0 % R H | |
| Product size | 7 0 × 9 0 × 5 4 . 5 mm ( L × W × H ) | |
| Package | 0 . 2 7 k g / p c s | |
Note: 1. All parameters are measured under the conditions of 230V AC input, rated load, and 25℃.
2. Ripple and noise voltages are measured when a 12-inch twisted pair with 0.1u and 47u capacitors is connected at the end of the oscilloscope in a 20 MHz bandwidth.
3. Accuracy: includes setting error, linear adjustment rate, and load adjustment rate.
4. In low input voltage conditions, the output should be reduced. Please refer to the static characteristic curve diagram for details.
5. Startup time is measured under the condition of a cold machine startup. Frequent power on/off operations may increase the startup time.
