Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;
The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiffness;
Do not need to remove the steel belt, can be fixed from the top down or from the bottom up fixed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

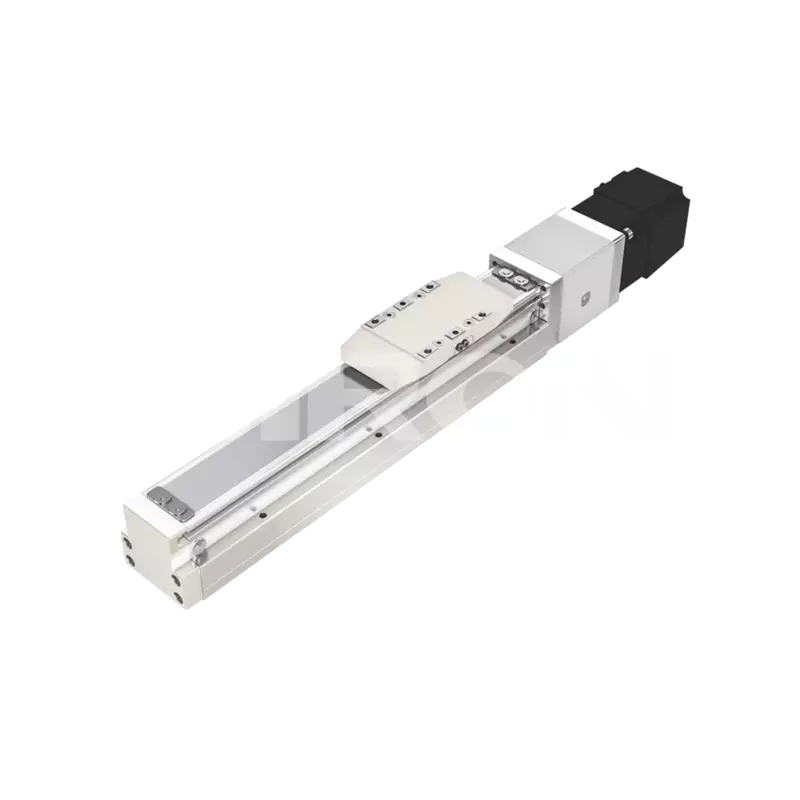

Model:M310
Brand:SiRON
Code:9001909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Selection example: M310-2-50-BC-M05B-E5 is M310 series, guide 2mm, stroke 50, motor exposed, Mitsubishi 50W with brake, no origin sensor, no limit sensor;
Note: If you need other styles, please consult our sales staff.
Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;
Product specification
| Project | Specification | ||||
| Specifications | The motor power | 50W/100W | |||
| Repeatability(mm) | ±0.01 | ||||
| Ball screw lead(mm) | 2 | 5 | 10 | ||
| Maximum speed(mm/s) | 100 | 250 | 500 | ||
| Maximum payload(kg) | Horizontal | 25 | 20 | 12 | |
| Vertical | 8 | 8 | 3.5 | ||
| Rated thrust(n) | 424 | 141 | 71 | ||
| Stroke pitch(mm) | 50-850mm/50 interval | ||||
| Sarts | AC Servo motor output(w) | 100 | |||
| Can be equipped with stepping motor | 42/57 | ||||
| Ball screw(mm) | C7φ10 | ||||
| Coupling(mm) | 7×8 | ||||
| Home sensor | Outside | K017-A6 | |||
Installation method
Allowable overhang
Static loading moment
| MY | 79 |
| MP | 79 |
| MR | 61 |
Suitable motor brand
| Brand | The motor mark | Whether the brakes | Motor capacity | voltage Motor model | voltage |
Mitsubishi | M | Nobrakes(horizontalstyle) | 100 | 220 HG-KR13 | MR-J4-10A |
| With brake(vertical style) | 100 | 220 HG-KR13B | |||
Panasonic | P | Nobrakes (horizontalstyle) | 100 | 220 MSMD012G1U | MADHT1505 |
| With brake (vertical style) | 100 | 220 MSMD012G1V | |||
| Delta | T | Nobrakes (horizontalstyle) | 100 | 220 ECMA-C20401ES | ASD-B20121-B |
| With brake(vertical style) | 100 | 220 ECMA-C20401FS |
