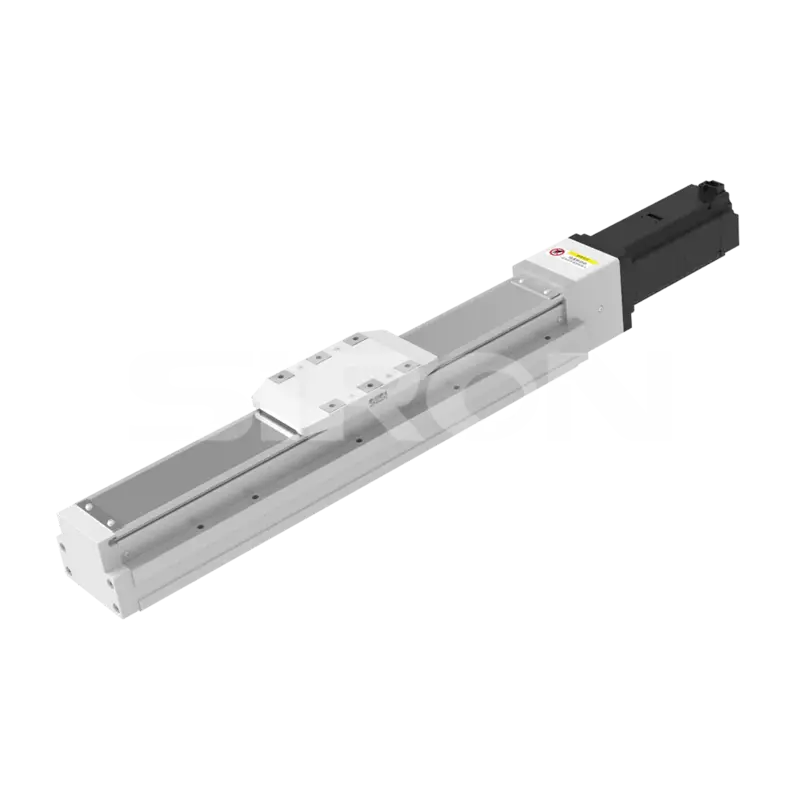

Do not need to remove the steel belt, can be fixed from the top down or from the bottom up fixed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;
About selection
Selection example: M303(C)-5-50-BC-T10B-E5 is M303(C) series, lead range 5mm, stroke 50, motor direct connection,delta 100W with brakes, no origin sensor, no limit sensor；
Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;
Product specification
| Project | Specification | ||||
| Spcifications | Repeatability(mm) | ±0.01 | |||
| Ball ScrewLead(mm) | 5 | 10 | 20 | ||
| Maximum speed(mm/s) | 250 | 500 | 1000 | ||
| Maximum payload(kg) | Horizontal | 50 | 30 | 10 | |
| Vertical | 15 | 10 | 2.5 | ||
| Rated thrust(n) | 683 | 341 | 174 | ||
| Stroke pitch(mm) | 50~1100mm/50mm interval | ||||
| Sarts | AC Servo motor output(w) | 200 | |||
| Ball Screw o(mm) | C7φ16 | ||||
| Coupling(mm) | 10×14 (11) | ||||
| Home Sensor | Outside | EE-SX674(NPN)EE-SX674P(PNP) PM-Y45(NPN)PM-Y45P(PNP) | |||
Installation method
Suitable motor brand
| Brand | The motormark | Whether the brakes | Motor capaity | voltage | Motormodel | voltage |
| Delta | T | No brakes (horizontalstyle) | 200 | 220 | ECMA-C20602RS | ASD-B2-0221-B |
| With brake (vertical style) | 200 | 220 | ECMA-C20602SS | ASD-B2-0221-B | ||
Panasonic | P | No brakes (horizontlstyle) | 200 | 220 | MHMF022L1U2M | MADLN15SG |
| With brake (verticalstyle) | 200 | 220 | MHMF022L1V2M | MADLN15SG | ||
Yaskawa | Y | No brakes(horizontal style) | 200 | 220 | SGM7J02AFC6S | SGD7S1R6A00A002 |
| With brake (verticalstyle) | 200 | 220 | SGM7J02AFC6E | SGD7S1R6A00A002 |
Allowable overhang
Static loading moment
| MY | 318 |
| MP | 318 |
| MR | 626 |
The data indicated by the torque represents the center of gravity.
Under standardized usage conditions, the product has a service life of 10,000 kilometers.
The standard specifications cannot be followed when using the inverted hoist.
If you have any needs, please consult our sales staff.
