1.2° step angle;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
It can realize precise control and convenient adjustment.
Model:M271-C
Brand:SiRON
Code:8501109990
Non-returnable
Product Details
Product Description
About selection

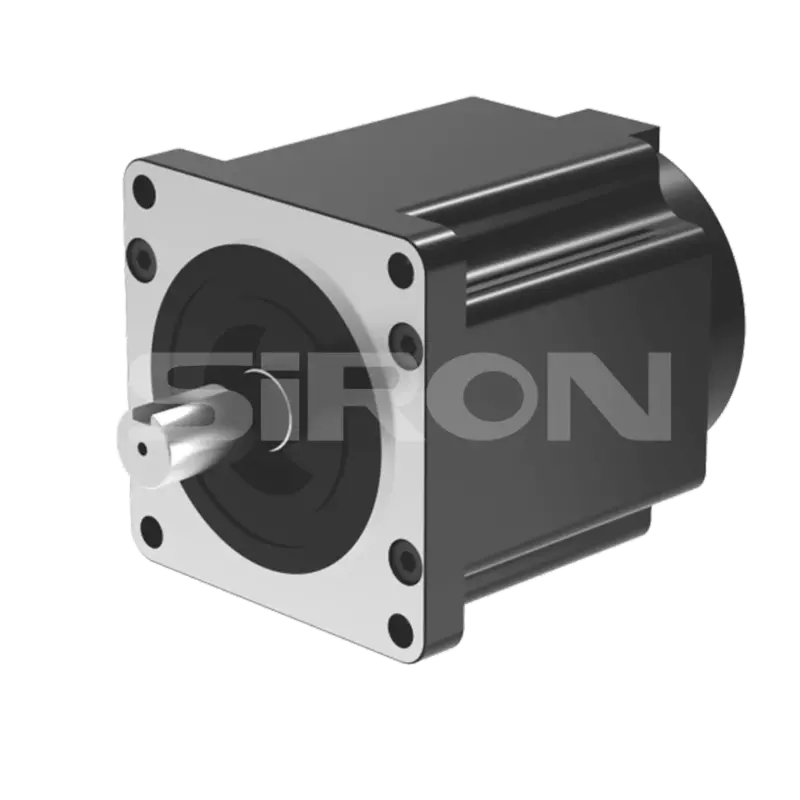

Selection example: M271-57-0451-C represents the M271 series three-phase open-loop hybrid stepping motor, with a frame size of 57mm, a holding torque of 0.45N.m, single-axis, and an economical type
| 0.45N.m～50N.m | ||||||||
Code | 045 | 09 | 15 | 20 | 30 | 40 | 60 | 80 |
Torque | 0.45N.m | 0.9N.m | 1.5N.m | 2.0N.m | 3.0N.m | 4.0N.m | 6.0N.m | 8.0N.m |
Code | 10 | 12 | 15 | 16 | 20 | 28 | 35 | 50 |
Torque | 10N.m | 12N.m | 15N.m | 16N.m | 20N.m | 28N.m | 35N.m | 50N.m |
Electrical properties
| Project | Parameter | Project | Parameter |
| StepAngle Accuracy | ±5%(synchronizing) | Voltage resistance | 500V AC1 minute |
| Resistance accuracy | ±10%(20℃) | Radial Play | 0.02mm Max(450g load) |
| Inductance accuracy | ±20%(1KHZ) | Axial Play | 0.08mm Max(450g load) |
| Temperature rise | 80C max(Rated current,2 is connected) | Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~50℃ |
Specification
Ⅰ.57 series
| Machine base number | 57 Series | |||
| Model | M271-57-0451-C | M271-57-091-C | M271-57-152-C | M271-57-202-C |
| Adapter drive | M281-580-C | |||
| StepAngle | 1.2° | |||
| Holding torque | 0.45 | 0.9 | 1.5 | 2.0 |
| Cument per phase | 5.2 | 5.6 | 5.8 | 5.8 |
| Eachresistance | 0.242 | 0.24 | 0.29 | 0.376 |
| Eachinductance | 0.22 | 0.267 | 0.39 | 0.5 |
| Momentof inertia | 100 | 220 | 380 | 530 |
| Number of lead wires | 3 | |||
| weiaht | 0.5 | 0.75 | 1.1 | 1.57 |
| Body lenath | 41 | 54 | 76 | 100 |
| Shaft diameter D(mm) | φ6.35 | φ8 | φ8 | φ8 |
| Axis extension(mm) | Mounting Flange 0.5×10 | Mounting Flange 0.5x10 | Key 3x15 | Key 3x15 |
| Axis length (mm) | 21 | |||
| Max.radial force | 75N(20mm away from the flange) | |||
| Max.axial force | 15N | |||
