1.2° step angle, three-phase stepper motor;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.

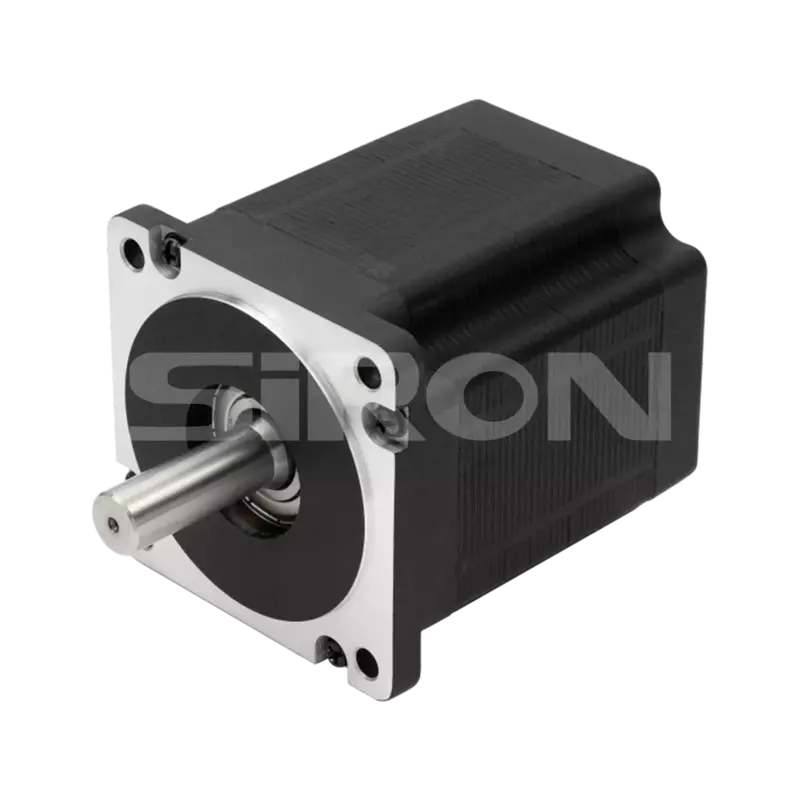

M271-86
Brand:SiRON
8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M271-86-2002 represents the M271 series three-phase stepping motor, with a frame size of 86mm, a holding torque of 2N.m, and a single-axis key.
Specification
| Model | M271-86 Series | ||
| Radial Play | 0.025mm@500g | Step Angle | 1.2° |
| Axial Play | 0.075mm@1000g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 220N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 60N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 1200VAC/1s | Insulation Class | Class B |
Electrical properties
| Model | M271-86-2002 | M271-86-4522 | M271-86-4522A | M271-86-6782 | M271-86-6782A |
| Adapter drive | M281-3722 | M281-3722 | M281-3606 | M281-3722 | M281-3606 |
| Current per phase | 1.75 | 2 | 5.8 | 2.25 | 5.2 |
| Hokding torque | 2 | 4.52 | 4.52 | 6.78 | 6.78 |
| Positioning torque | 0.08 | 0.15 | 0.15 | 0.26 | 0.26 |
| Each resistance | 4.25 | 5.8 | 0.97 | 9 | 1.8 |
| Each inductance | 11 | 23 | 3.2 | 41 | 8 |
| Numberof lead wires | 6 | 6 | 6 | 6 | 6 |
| Moment of inerfia | 1120 | 2200 | 2200 | 3300 | 3300 |
| weight | 1.65 | 2.7 | 2.7 | 3.8 | 3.8 |
| Body length | 67 | 97 | 97 | 127 | 127 |
