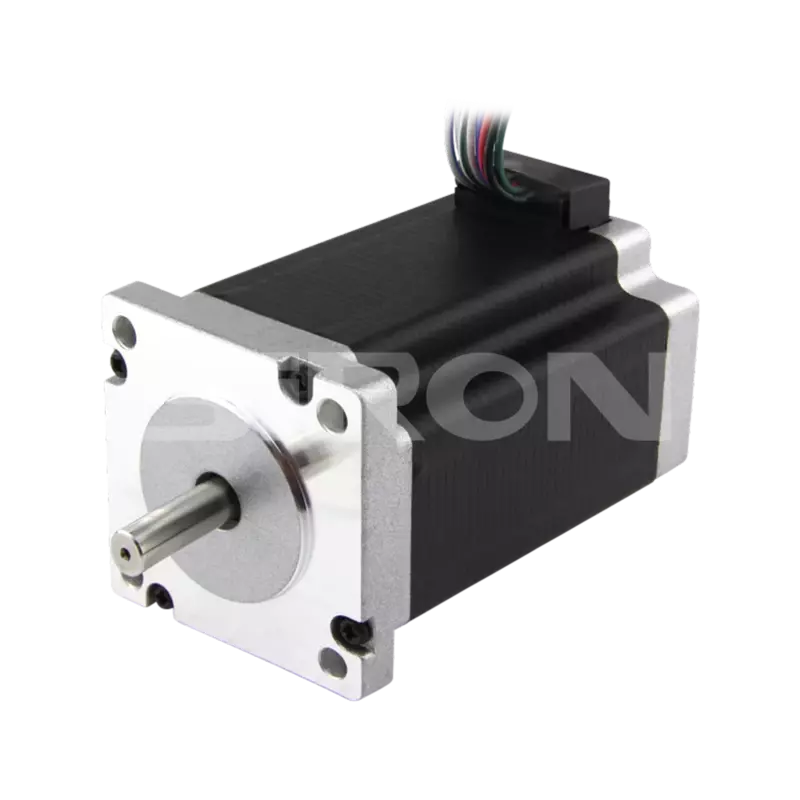

1.2° step angle, three-phase stepper motor;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
M271-60
SiRON
Code:8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M271-60-0801 represents the M271 series three-phase stepping motor, with a frame size of 60mm, a holding torque of 0.8N.m, and a single axis.
Specification
| Model | M271-60 Series | ||
| Radial Play | 0.02mm@450g | Step Angle | 1.2° |
| Axial Play | 0.08mm@450g | Step A ngle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 75N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 15N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 600VAC/1s | Insulation Class | Class B |
Electrical properties
| Model | M271-60-0801 | M271-60-1102 |
| Adapter drive | M281-3606 | M281-3606 |
| Current per phase | 1.5 | 1.5 |
| Hokding torque | 0.8 | 1.1 |
| Positioning torque | 0.07 | 0.09 |
Each resistance Each inductanoe | 4.1 9.5 | 4.410 |
| Number of lead wires | 3 | 3 |
| Moment ofinertia | 260 | 460 |
| weight | 0.8 | 1.3 |
| Body length | 53.5 | 77.5 |
