0.9° step angle;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.

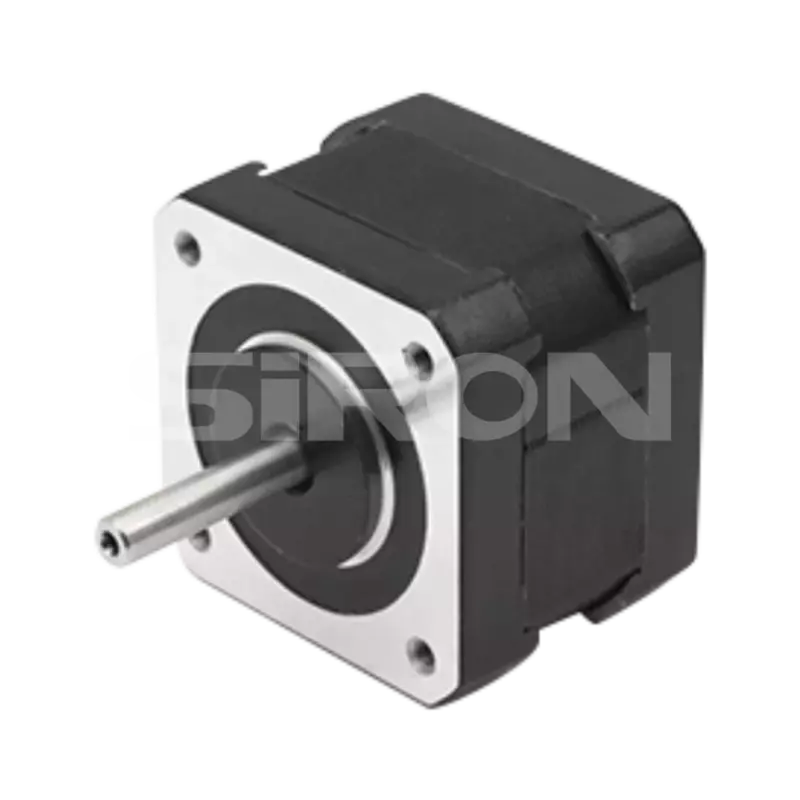

M271-42
SiRON
8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M271-42-0080 represents the M271 series three-phase stepping motor, with a frame size of 42mm, a holding torque of 0.08N.m, and a single axis.
Electrical properties
| Project | Parameter | Project | Parameter |
| StepAngle Accuracy | ±5%(synchronizing) | Voltage resistance | 500V AC1 minute |
| Resistance accuracy | ±10%(20℃) | Radial Play | 0.02mm Max(450g load) |
| Inductance accuracy | ±20%(1KHZ) | Axial Play | 0.08mm Max(450g load) |
| Temperaturerise | 80℃ max(Rate curent,2is comected) | Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~50℃ |
Specification
| Model | M271-42 Series | ||
| Radial Play | 0.02mm@450g | Step Angle | 1.2° |
| Axial Play | 0.08mm@450g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 28N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 10N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 600VAC/1s | Insulation Class | Class B |
