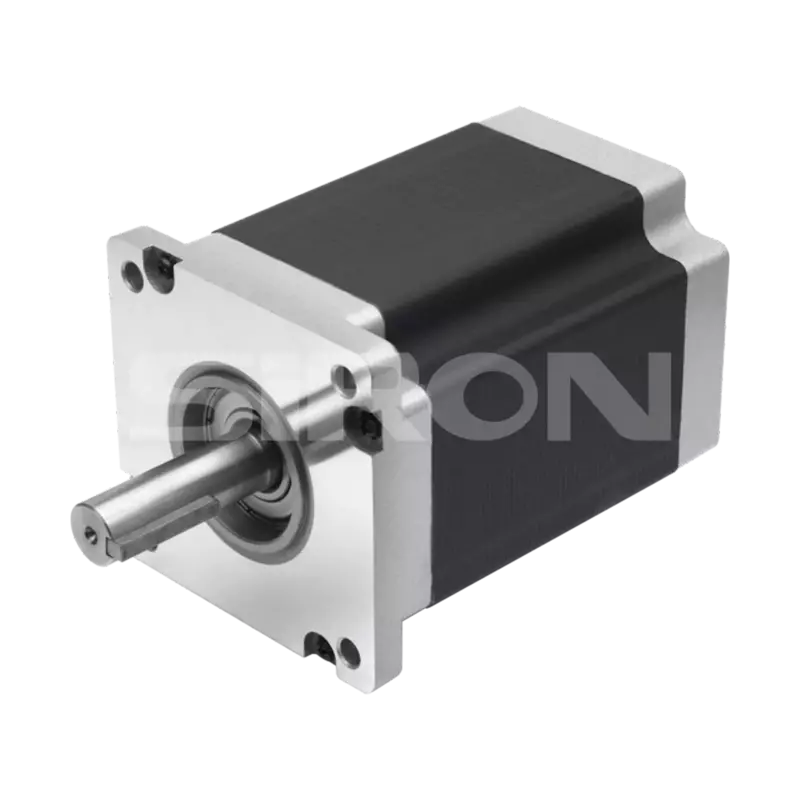

1.2° step angle, three-phase stepper motor;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
M271-110
Brand:SiRON
Code:8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M271-110-1393 represents the M271 series three-phase stepping motor, with a frame size of 110mm, a holding torque of 13.92N.m, and a single axis.
Specification
| Model | M271-110-1393 | ||
| Radial Play | 0.02mm@450g | Step Angle | 1.2° |
| Axial Play | 0.08mm@450g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 330N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 100N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 1800VAC/1s | Insulation Class | Class B |
Electrical properties
| Model | M271-110-1393 |
| Adapterdrive | M281-3606 |
| Current per phase | 4.1 |
| Halding torque | 13.92 |
| Positioning torque | 1.01 |
| Each resistance | 1.96 |
| Each inductance | 18 |
| Number of lead wires | 6 |
| Moment of inartia | 10500 |
| weight | 8 |
| Body length | 173 |
