0.9° step angle;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment

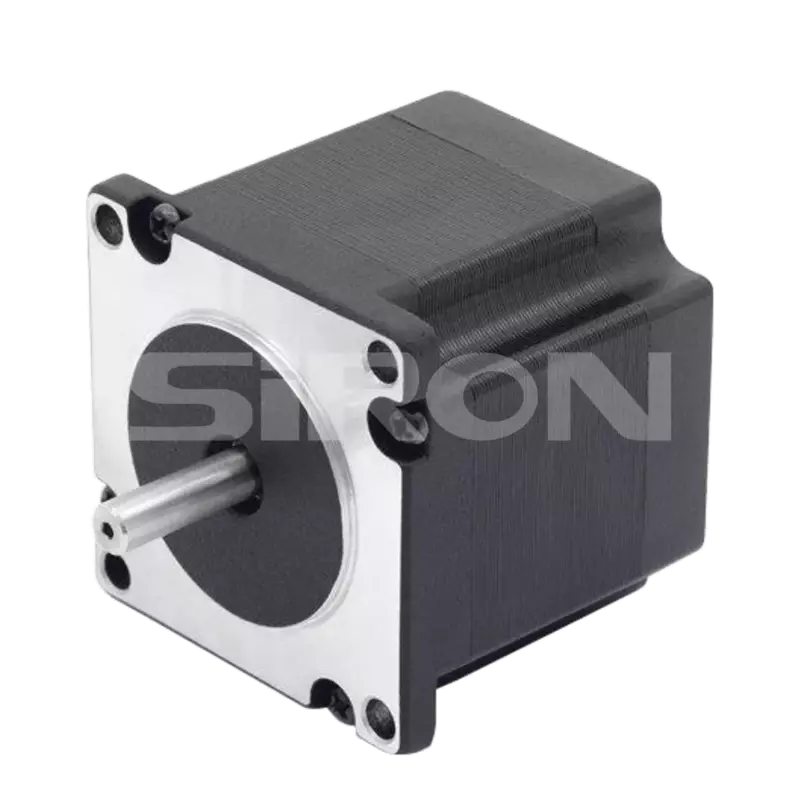

Model:M270-57
Brand:SiRON
8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M270-57-0391 represents the M270 series two-phase stepping motor, with a frame size of 57mm, a holding torque of 0.39N.m, and a 0.9° single-axis.
Table 1
| Code | 039 | 055 | 090 | 120 | 135 | 180 |
| Holdingtorque | 0.39N.m | 0.55N.m | 0.9N.m | 1.2N.m | 1.35N.m | 1.8N.m |
Specification
| Model | M270-57 Series | ||
| Radial Play | 0.02mm@450g | Step Angle | 0.9° |
| Axial Play | 0.08mm@450g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 75N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 15N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 600VAC/1s | Insulation Class | Class B |
Electrical properties
| Model | M270-57-0391 | M270-57-0551 | M270-57-0901 | M270-57-1202 | M270-57-1352 | M270-57-1802 |
| Adapter drive | M280-556 | M280-556 | M280-556 | M280-556 | M280-556 | M280-556 |
| Curent per phase | 2 | 2.8 | 2 | 2.8 | 2 | 2.8 |
| Hokding torque | 0.39 | 0.55 | 0.9 | 1.2 | 1.35 | 1.8 |
| Positioning torque | 0.021 | 0.021 | 0.04 | 0.04 | 0.068 | 0.068 |
| Eachresistance | 1.4 | 0.7 | 1.8 | 0.9 | 2.25 | 1.13 |
| Eachinductance | 2.2 | 2.2 | 4.5 | 4.5 | 5.6 | 5.6 |
| Number of leadwires | 6 | 4 | 6 | 4 | 6 | 4 |
| Momentofinertia | 120 | 120 | 300 | 300 | 480 | 480 |
| weight | 0.45 | 0.45 | 0.7 | 0.7 | 1 | 1 |
| Body length | 41 | 41 | 56 | 56 | 76 | 76 |
