0.9° step angle;
High resolution, low noise;
High torque, low vibration, high efficiency;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment
It can realize precise control and convenient adjustment
M270-42
Brand:SiRON
8501109990
Non-returnable
Product Details
Product Description
About selection

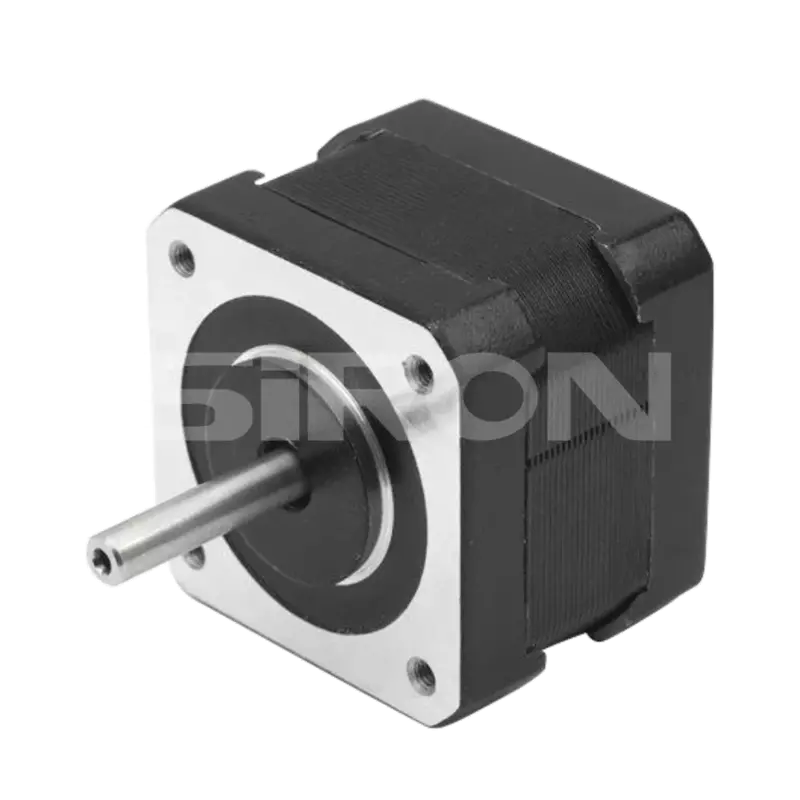

Selection example: M270-42-0151 represents the M270 series two-phase stepping motor, with a frame size of 42mm, a holding torque of 0.158N.m, and a 0.9° single-axis.
Table 1
| Code | 015 | 022 | 025 | 033 | 031 | 040 |
| Holding torque | 0.158N.m | 0.22N.m | 0.259N.m | 0.33N.m | 0.317N.m | 0.4N.m |
Specification
| Model | M270-42 Series | ||
| Radial Play | 0.02mm@450g | Step Angle | 0.9° |
| Axial Play | 0.08mm@450g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 28N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 10N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 600VAC/1s | Insulation Class | Class B |
Electrical properties
| Model | M270-42-0151 | M270-42-0221 | M270-42-0251 | M270-42-0331 | M270-42-0311 | M270-42-0401 |
| Adapter drive | M280-430 | M280-430 | M280-430 | M280-430 | M280-430 | M280-430 |
| Current per phase | 0.95 | 1.33 | 1.2 | 1.68 | 1.2 | 1.68 |
| Holding torque | 0.158 | 0.22 | 0.259 | 0.33 | 0.317 | 0.4 |
| Positioning torque | 0.02 | 0.02 | 0.022 | 0.022 | 0.025 | 0.025 |
| Each resistance | 4.2 | 2.1 | 3.5 | 1.8 | 3.3 | 1.8 |
| Each inductance | 4 | 5.1 | 4.1 | 4.1 | 4.9 | 5.5 |
| Number oflead wires | 6 | 4 | 6 | 4 | 6 | 4 |
| Moment of inertia | 35 | 35 | 54 | 54 | 68 | 68 |
| weight | 0.22 | 0.22 | 0.28 | 0.28 | 0.35 | 0.35 |
| Body length | 33.5 | 33.5 | 39.5 | 39.5 | 47.5 | 47.5 |
