0.9° step angle;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment

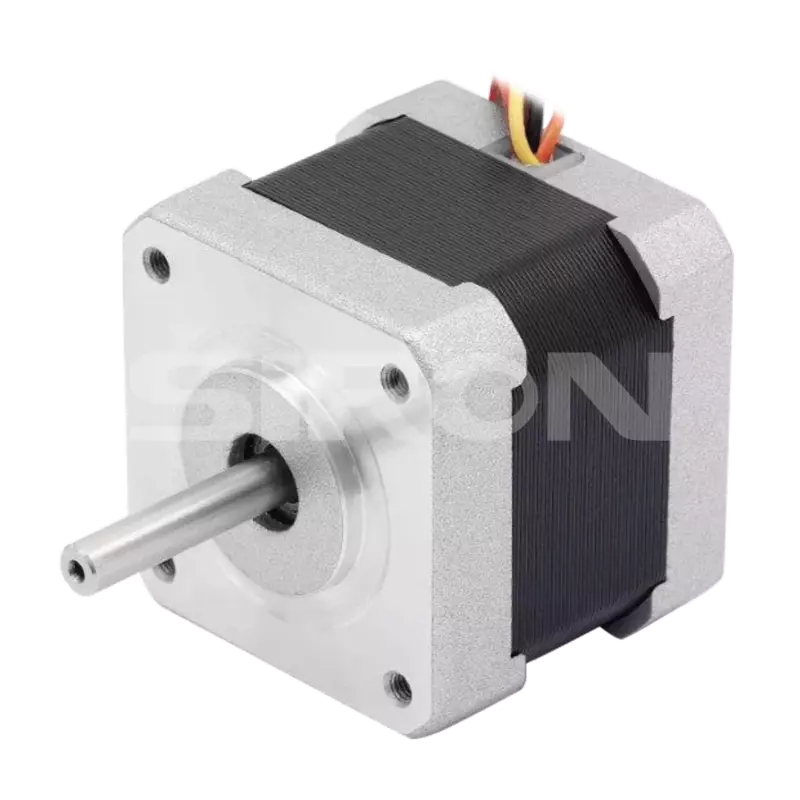

Model:M270-39
Brand:SiRON
Code:8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M270-39-0291 represents the M270 series two-phase stepping motor, with a frame size of 39mm, a holding torque of 0.297N.m, and a 0.9° single-axis.
Specification
| Model | M270-39-0291 | ||
| Radial Play | 0.02mm@450g | Step Angle | 0.9° |
| Axial Play | 0.08mm@450g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 28N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 10N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 600VAC/1s | Insulation Class | Class B |
Electrical properties
Model | M270-39-0291 |
Adapter drive | M280-430 |
Current per phase | 0.28 |
Holding torque | 0.297 |
Positioning tonque | 0.02 |
Each resistance | 60 |
Each inductance | 145 |
Numberoflead wires | 4 |
Moment of inertia | 36 |
weight | 0.29 |
Body length | 44.5 |
