0.9° step angle;
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.
High resolution, low noise;
High torque, low vibration, high efficiency;
Precise position control;
It can realize precise control and convenient adjustment.

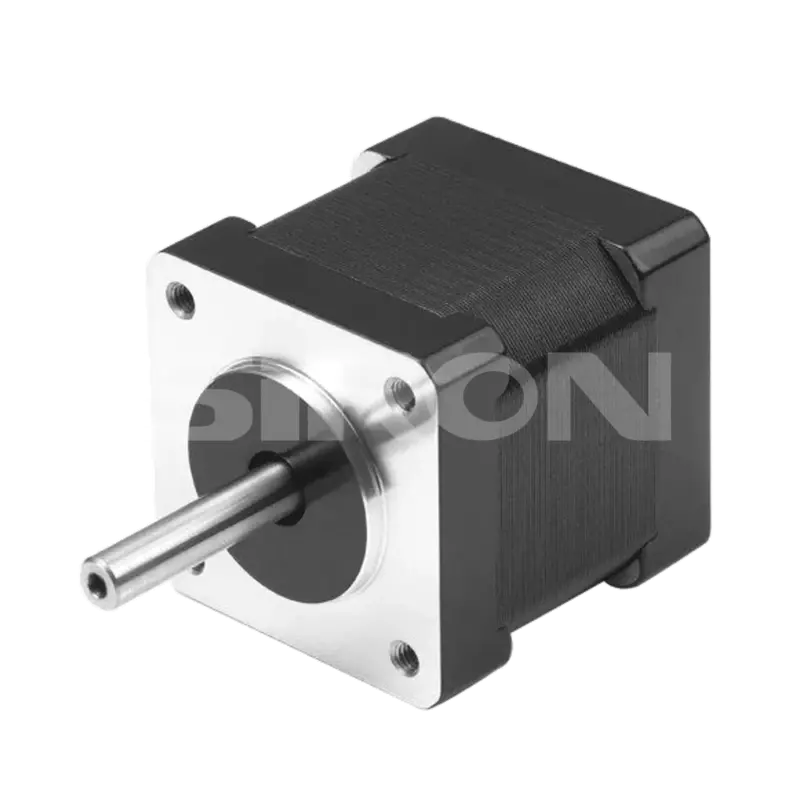

M270-35
Brand:SiRON
Code:8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M270-35-0050 represents the M270 series two-phase stepping motor, with a frame size of 35mm
Specification
| Model | M270-35 Series | ||
| Radial Play | 0.02mm@400g | Step Angle | 0.9° |
| Axial Play | 0.08mm@400g | Step Angle Accuracy | ±5%(The entire step is unloaded) |
| Max.radial force | 28N(20mm away from the flange） | Insulation Resistance | 100MΩ,500VDC |
| Max.axial force | 10N | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 600VAC/1s | Insulation Class | Class B |
Electrical properties
| Model | M270-35-0050 | M270-35-0090 |
| Adapter drive | M280-430 | M280-430 |
| Curren per phase | 1 | 0.5 |
| Holdingtorque | 0.05 | 0.09 |
| Positioning torque | 0.005 | 0.008 |
| Each resistance | 10 | 6.1 |
| Each inductance | 8.5 | 6.9 |
| Number of lead wires | 4 | 4 |
| Moment of inertia | 8 | 11 |
| weight | 0.1 | 0.15 |
| Body length | 20 | 26 |
