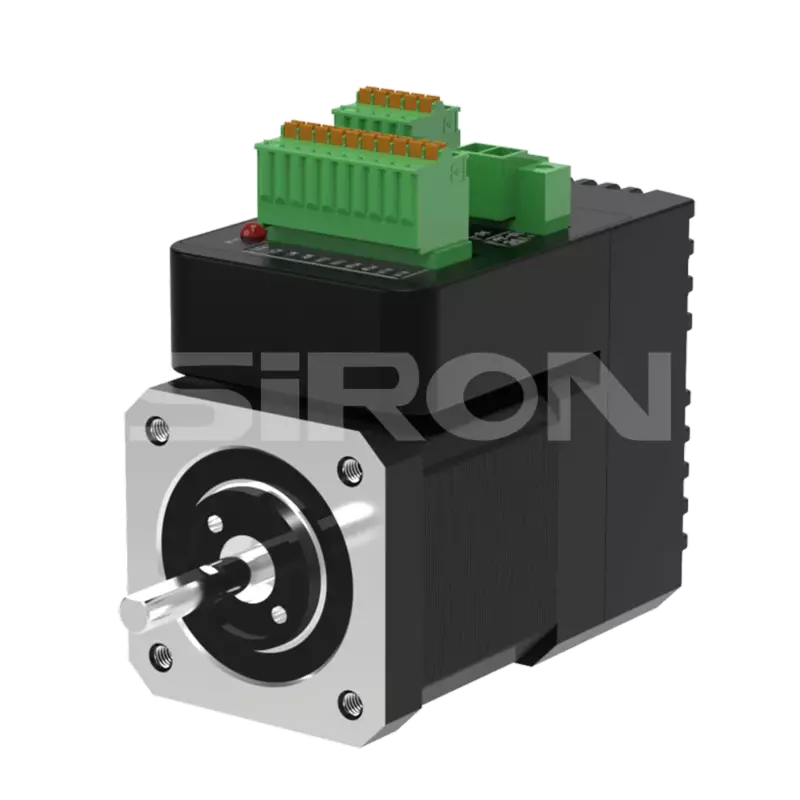

The integrated stepper servo drive motor integrates the servo drive into the stepper motor, and the two are perfectly integrated into one.
The product adopts an optical encoder, with high-speed sampling bit feedback every 50us. Once there is a positional deviation, the positional deviation can be immediately corrected.
The dual advantages of compatibility with stepper technology and servo technology include low heat generation, low vibration, and fast acceleration.
The product adopts an optical encoder, with high-speed sampling bit feedback every 50us. Once there is a positional deviation, the positional deviation can be immediately corrected.
The dual advantages of compatibility with stepper technology and servo technology include low heat generation, low vibration, and fast acceleration.
M260
Brand:SiRON
8501109990
Non-returnable
Product Details
Product Description
About selection
Selection example: M260-42-24-0481 represents the M260 series integrated stepping servo drive motor, with a frame size of 42mm, a rated voltage of 24V, a holding torque of 0.48N.m, and input control mode pulse + direction
Dial code setting
| Pluse/rew | Default | 800 | 1600 | 3200 | 6400 | 2800 | 25600 | 51200 | 1000 | 2000 | 4000 | 5000 | 8000 | hooo0 | 20000 | 40000 |
| SW1 | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF |
| SW2 |  ON | ON | OFF | OFF | ON | ON | OFF | OFF | ON | ON | OFF | OFF | ON | ON | OFF | OFF |
| SW3 | ON | ON | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | ON | OFF | OFF | OFF | OFF |
| SW4 | ON | ON | ON | ON | ON | ON | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
Specification
Ⅰ.42 series(24V)
| Machine base number | 42 Series | |
| Model | M260-42-24-0481 | M260-42-24-0721 |
| StepAngle | 1.8° | |
| Supply voltage | 24 | |
| Holding torque | 0.48 | 0.72 |
| Each resistance | 3.1 | 4.0 |
| Each inductance | 7.9 | 10 |
| Current per phase | 1.2 | |
| Moment ofinertia | 7.7 | |
| Body length | 75 | 88 |
Ⅱ.57 series (36V)
| Machine base number | 57 series | ||
| Model | M260-57-36-122 | M260-57-36-202 | M260-57-36-302 |
| StepAngle | 1.8° | ||
| Supply woltage | 36 | ||
| Holding torque | 1.2 | 2.0 | 3.0 |
| Eachreslstance | 0.44 | 0.37 | 0.48 |
| Eachinductanoe | 1.4 | 1.7 | 2.0 |
| Ourrentper phase | 4.0 | 5.0 | 4.0 |
| Moment ofinerdia | 28 | 48 | 78 |
| Body length | 87 | 108 | 143 |
Ⅲ.60 series(36V)
| Machine base number | 60 series | |
| Model | M260-60-36-202 | M260-60-36-302 |
| StepAngle | 1.8° | |
| Supply votage | 36 | |
| Halding torgue | 2.0 | 3.0 |
| Each reslstance | 1.0 | 0.43 |
| Eachinductanoe | 0.8 | 2.0 |
| Ourrent per phase | 5.0 | |
| Moment ofinerfa | 310 | 690 |
| Body length | 97 | 117 |
Ⅳ.86 series(60/80V)
| Machine base number | 86 series | ||
| Model | M260-86-60-452 | M260-86-80-852 | M260-86-80-123 |
| StepAngle | 1.8° | ||
| Supplyvottag | 60 | 80 | 80 |
| Hokaing toroue | 4.5 | 8.5 | 12 |
| Eachresistance | 0.43 | 0.55 | 0.76 |
| Eachinductanoe | 2.7 | 7.1 | 8.4 |
| Curent per phase | 6.0 | ||
| Momentofineria | 180 | 290 | 400 |
| Body length | 121 | 141 | 201 |
