Fast operation speed and high positioning accuracy;
Easy to debug, support load inertia identification function, shorten the product debugging process and save man-hours.
Stable operation, equipped with two sets of notch filters, adjustable and notch depth, effectively overcome low-frequency
resonance and vibration at the end of the machine;
Easy to debug, support load inertia identification function, shorten the product debugging process and save man-hours.
Stable operation, equipped with two sets of notch filters, adjustable and notch depth, effectively overcome low-frequency
resonance and vibration at the end of the machine;

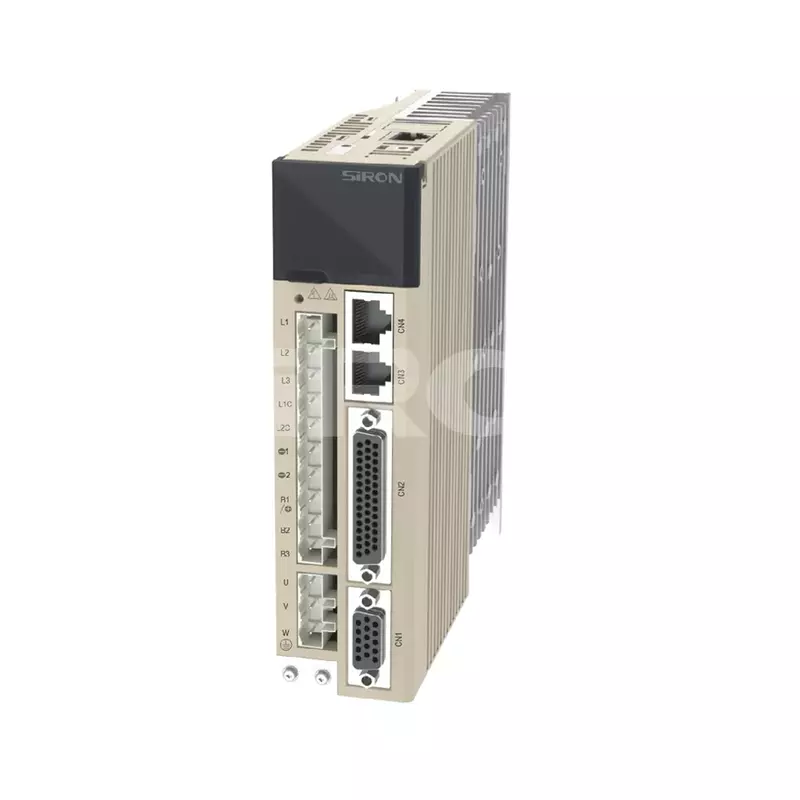

M214
Brand:SiRON
Code:8503009090
Non-returnable
Product Details
Product Description
About selection
Note: 1. Power supply voltage AC220V: The power selectable range is 400 to 3000W.The M214 series serv o drives can be matched with M203 and M203 series servo motors.
Selection example: M214-AS04AB represents the M214 series servo driver, with a power supply voltage of AC220V, single-axis output mode, power of 400W, input signal of pulse, and encoder type of absolute value.
Table 1: Power
| Code | 04 | 08 | 15 | 22 | 30 |
| Power | 400W | 750W | 1500W | 2200W | 3000W |
| Rated current | 2.8A | 5.5A | 10A | 16A | 16A |
Specification
| Name | M214 series servo drive | |
| Iudutpower | Control method | Three-phase PWM converter sinusoidal wave drive |
| Main circuit power supply | Three-phase 220V AC(-15～+10%,50～60Hz) | |
| Control power | Single-phase 220V AC(-15～+10%,50～60Hz) | |
| Rated current | 0.4kW/2.8A,0.75kW/5.5A,1.5kW/10A,2.2kW/12A,3kW/16A | |
| Encoder feedback | Serial encoder,supporting the Tama River protocol | |
Tmperatureandhumidityenvironment | Use environment temperature | 0～45℃ |
| Storage temperature | -20～65℃ | |
| Use environment humidity | Below 20 to 85%RH(no condensation) | |
| Storage environment humidity | Below 20 to 85%RH(no condensation) | |
| Use to preserve ambient air | Indoors(without direct sunlight),free from corrosive gases,flammable gases,oil mists and dust | |
| Altitude | Below 1,000 meters in altitude | |
| Vibration | Below 5.8m/s 2(0.6G),10～60Hz(cannot be used continuously at resonant frequency) | |
| Insulation withstand voltage IO input | 8 inputs (DC24V optocoupler isolation) can be selected based ON parameters for input functions: servo ON, P action, prohibition of forward rotation, prohibition of reverse rotation, alarm reset, forward rotation torque limit, reverse rotation torque limit, control mode switching, zero position fixed, deviation reset, internal set speed switching *2, motor selection direction switching | |
| Functon introducton | IO output | 4-channel optocoupler isolated output; The output functions can be selected based on parameters: alarm outp ut, positioning proximity, consistent speed detection, motor rotation detection, servo preparation, torque limit, speed limit, and brake release |
| Pulse input | Differential input: 500K; Collector open circuit: 200K Supports pulse + direction, AB orthogonal pulse CW+CCW pluse | |
| Internal speed command | Phase A and Phase B: Differential output, with arbitrary frequency division. Phase Z: Differential output or collector open-circuit output through input | |
| Overload capacity | The terminal is allocated with three speeds | |
| Analog input | Maximum three times the torque | |
| Communication function | Modbus Communication | |
| Control mode | 12 control modes: Position control, speed control, torque control, internal speed, position/speed control, position/torque control, speed/torque control, internal speed/position, internal speed/speed, internal speed/torque, speed/zero clamping, position control/command prohibition | |
| Regenerative resistance | 400W: No external regenerative resistor; Over 750W: Yes |
