17 bit magnetic encoder for single coil absolute value/17 bit magnetic encoder for multi coil absolute value can be selected;
Adopting new technology, compact structure, short body and small size;
Applied to automation equipments and instruments in the field of operation and control, for example: 3D printing equipments, lithium battery liquid injection machine, labeling machine, robot, CNC machine tools, etc.
Adopting new technology, compact structure, short body and small size;
Applied to automation equipments and instruments in the field of operation and control, for example: 3D printing equipments, lithium battery liquid injection machine, labeling machine, robot, CNC machine tools, etc.

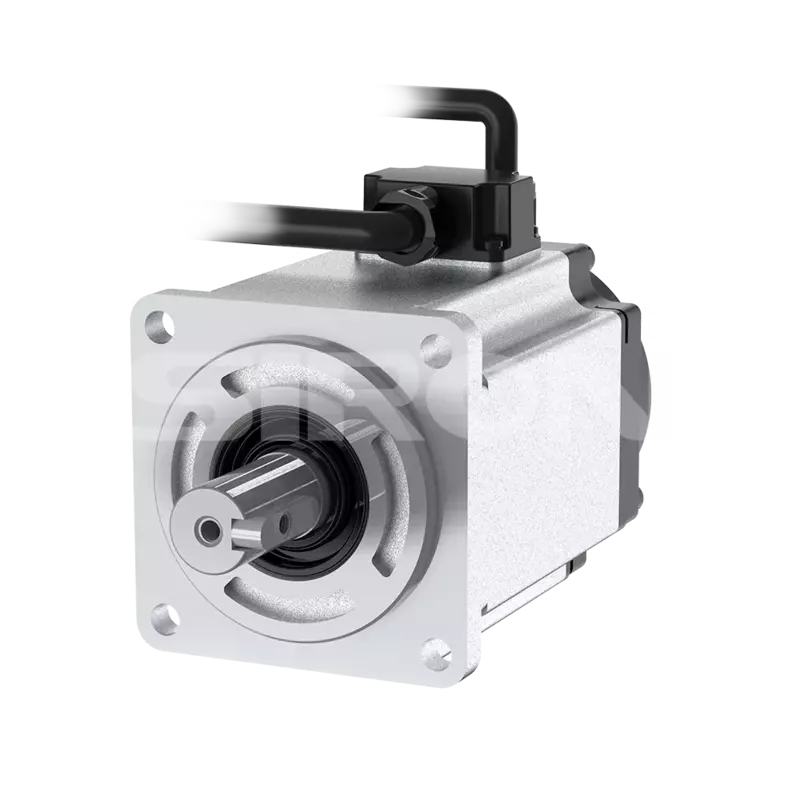

M206
SiRON
Code:8503009090
Non-returnable
Product Details
Product Description
About selection
Selection example: M206-40S-A101K30-R1-B represents the M206 series servo motor, with a flange size of 40mm, an inertia specification of low inertia, a rated voltage of AC220V, a power of 100W, a rated speed of 3000r/min, a 1 7-bit magnetic coding incremental type, and a brake.
Note: 1. 220V: The power selectable range is 100W to 1000W.
2. The M206 series servo motors can be matched with the M216E series servo drivers
Table 1: Flanges
| Code | 40 | 60 | 80 | |||
| Flange size | 40mm | 60mm | 80mm | |||
Table 2:Power
100W～1000W
| Code | 10 | 20 | 40 | 60 | 75 | 10 |
| Power | 100W | 200W | 400W | 600W | 750W | 1000W |
Table 3:Encoder Types
| Code | R1 | D11 | ||||
| Encodertype | 17-bit magnetic coding single-turn absolute value | 17-bit magnetic coding multi-turn absolute value | ||||
Specification
Ⅰ、40 flanges (220V )
| Flange series | 40 Flange series | |
| Motor model | M206-40S-A101K30-R1 | M206-40S-A101K30-D11 |
| Rated power | 0.10 | |
| Rated current | 1.1 | |
| Rated speed | 3000 | |
| Rated torque/Peak torque | 0.32/0.95 | |
| Back electromotive force | 20 | |
| Torque coefficient | 0.29 | |
| Rotor inertia(without brake) | 0.06×10⁻⁴ | |
| Winding(line to line)resistance | 10.5 | |
| Winding(line to line)inductance | 8.9 | |
| Electrical constant | 0.85 | |
| Weight | 0.8 | |
| Polar logarithm | 5 | |
| Motor insulation level | Class F | |
| Protection level | IP65 | |
| L without/with brake | 86.5/119.5 | |
| Inertia type | low-inertia motor | |
Ⅱ、60 flanges(220V )
Flange series | 60 Flange series | |||||
| Motor model | M206-60S-A201K30-R1 | M206-60S-A201K30-D11 | M206-60S-A401K30-R1 | M206-60S-A401K30-D11 | M206-60S-A601K30-R1 | M206-60S-A601K30-D11 |
Rated power | 0.20 | 0.40 | 0.60 | |||
| Rated current | 1.6 | 2.5 | 3.3 | |||
| Rated speed | 3000 | 3000 | 3000 | |||
| Rated torque/Peak torque | 0.637/1.92 | 1.27/3.81 | 1.91/5.73 | |||
| Back electromotive force | 29.3 | 31.2 | 34.5 | |||
| Torque coefficient | 0.4 | 0.5 | 0.75 | |||
| Rotor inertia(without brake) | 0.3×10⁻⁴ | 0.52×10⁴ | 0.58×10⁻⁴ | |||
| Winding(line to line)resistance | 8.9 | 3.5 | 3.4 | |||
| Winding(line to line)inductance | 13.5 | 5.8 | 6.4 | |||
| Electrical constant | 1.52 | 1.66 | 1.88 | |||
| Weight | 0.72 | 1.06 | 1.2 | |||
| Polar logarithm | 5 | |||||
| Motor insulation level | Class F | |||||
| Protection level | IP65 | |||||
| Lwithout /with brake | 72/120 | 90/120 | 97/130 | |||
| Inertia type | low-inertia motor | |||||
Ⅲ、80 flanges(220V )
| Flange series | 80 Flange series | |||
| Motor model | M206-80S-A751K30-R1 | M206-80S-A751K30-D11 | M206-80S-A102K25-R1 | M206-80S-A102K25-D11 |
| Rated power | 0.75 | 1.0 | ||
| Rated current | 4.5 | 4.6 | ||
| Rated speed | 3000 | 2500 | ||
| Rated torque/Peak torque | 2.39/7.17 | 4.0/11.46 | ||
| Peak current | 13.5 | 13.8 | ||
| Back electromotive force | 32.8 | 50.8 | ||
| Torque coefficient | 0.53 | 0.83 | ||
| Rotor inertia(without brake) | 1.5×10⁻⁴ | 2.2×10⁴ | ||
| Winding(line to line)resistance | 1.2 | 23 | ||
| Winding(line to line)inductance | 4.2 | 9.6 | ||
| Electrical constant | 3.5 | 4.2 | ||
| Weight | 2.05 | 2.75 | ||
| Polar logarithm | 5 | |||
| Motor insulation level | Class F | |||
| Protection level | IP65 | |||
| Lwithout /with brake | 96/133 | 116/143 | ||
| Inertia type | low-inertia motor | |||
