Multiple encoder types to choose from
Adopt new technology, compact structure, short body and small volume;
Used in joint robots, reclaiming robots, high-end electronic equipment and CNC engraving and milling
Adopt new technology, compact structure, short body and small volume;
Used in joint robots, reclaiming robots, high-end electronic equipment and CNC engraving and milling

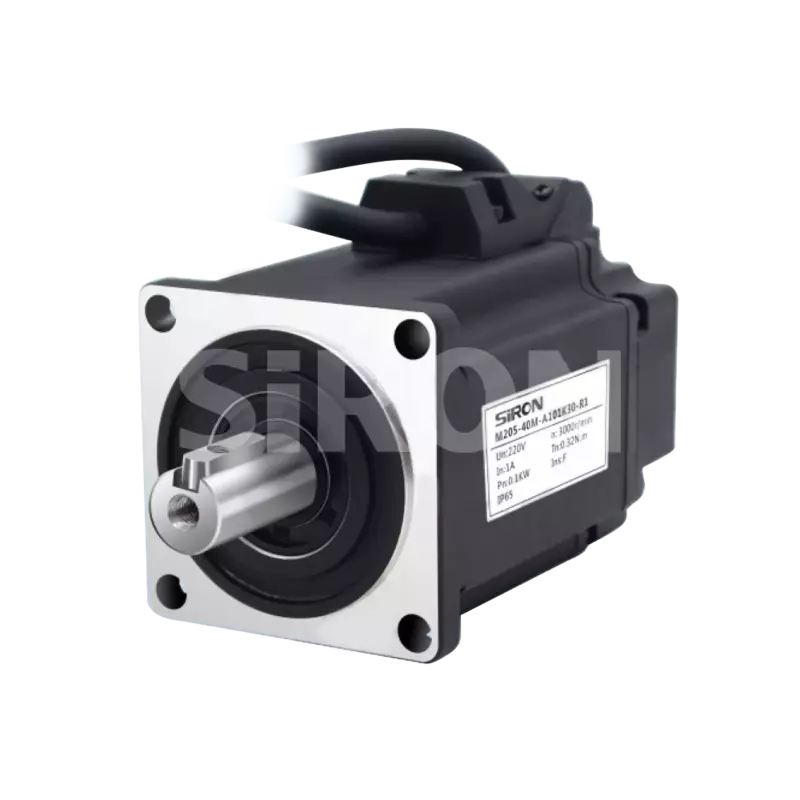

M205
Brand:SiRON
8503009090
Non-returnable
Product Details
Product Description
About selection
selection exemple: M205-40S-A101K30-R1-B represents the M205 series servo motor, with a flange size of 40mm, an inertia specification of low inertia, a rated voltage of AC220V, a power of 100W, a rated speed of 3000r/min, an incremental 17-bit type, and a brake.
Table 1: Flanges
| Code | 40 | 60 | 80 | 130 | 180 |
| Flange size | 40mm | 60mm | 80mm | 130mm | 180mm |
Table 2:Power
100w～850w
| Code | 10 | 20 | 40 | 75 | 85 | |||||
| Power | 100W | 200W | 400W | 750W | 850W | |||||
1.0kw~1.5kw
| Code | 10 | 13 | 15 | 18 | 20 | 29 | 30 | 44 | 55 | 75 |
| Power | 1.0kW | 1.3kW | 1.5kW | 1.8kW | 2.0kW | 2.9kW | 3.0kW | 4.4kW | 5.5kW | 7.5kW |
Table 3:Encoder Types
| Code | R1 | D11* | D10 |
| Encoder type | 17-bit absolute value | 17-bit absolute value | 23-bit absolute value |
Specification
Ⅰ、40 flanges (220V )
Flange series | 4 0 Flange series | |
Motor model | M205-40M-A101K30-R1 | M205-40M-A101K30-D10 |
Rated power | 0.10 | |
Rated/Maximum torque | 0.32/0.96 | |
Rated/Maximum speed | 3000/6000 | |
Rated/Maximum current | 1/3.1 | |
Torque constant | 0.32 | |
Line Back EMF Constant | 19 | |
Number of pole pairs | 5 | |
Insulation class | ClassF | |
Rotor inertia(without brake) | 0.053×10⁴ without brake: 0.05×10⁴ | |
Lwithout /with brake | 79.5/112.5 | |
Inertia type | Medium Inertia | |
