The high and low frequency of the outgoing signal can be selected;
The width of the output voltage pulse (that is, the lighting time of the light source) can be set to 0-999μs;
It can work in external trigger mode, and set the light source time as needed;
It can also work in internal trigger mode, lighting the light source time according to the set frequency;
When the load is over-current and short-circuited, the controller will automatically protect it, stop the output, and restore it after troubleshooting and re-powering.
The width of the output voltage pulse (that is, the lighting time of the light source) can be set to 0-999μs;
It can work in external trigger mode, and set the light source time as needed;
It can also work in internal trigger mode, lighting the light source time according to the set frequency;
When the load is over-current and short-circuited, the controller will automatically protect it, stop the output, and restore it after troubleshooting and re-powering.
K792 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection

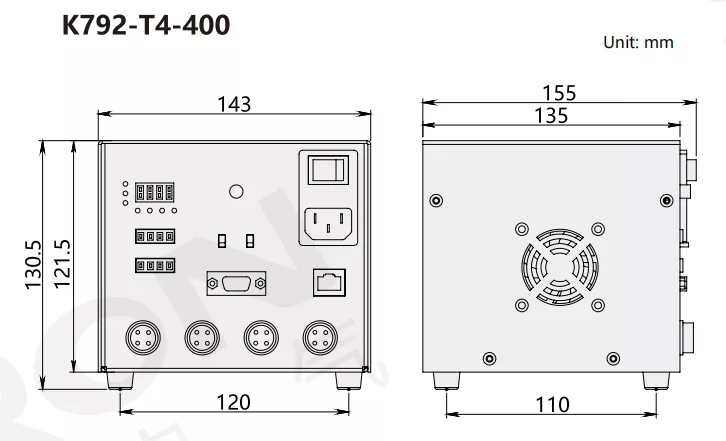

Selection example: K792-T4-400 represents the K792 series, with 4 channels and a total output power of 400W.
Specifications
Name | Strobe controller | |
Model | K792-T4-200 | K792-T4-400 |
| Appearance |  | |
The output voltage | 24V | |
Total output current | 2.5A | |
Externaltrigger voltage | 5～24V | |
Output Power | 200W/400W | |
Over current protection | >2.5A | |
The most electric current on the single road | 2.5A | |
nput power | 100～240VAC | |
Trigger delay time | <7μs | |
Adjustable brightness level | 0～999μs adjustable | |
communication method | R S 2 3 2 / Ethernet | |
Environment humidityn | 0～40℃ | |
Communication parameters
Baudrate | 19200 |
Data bit | 8 |
Stop bit | 1 |
Check Digit | NO |
Communication protocol | R S 2 3 2 / Ethernet |
Commands can be sent via the communication serial port, and the communication protocol is as follows:
Commands for each channel can be sent individually or simultaneously.
Example:
Sending the command SA0100# will set the lighting time of the 1st channel light source to 100μs.
Sending the command SA0150# SB0320# SC0280# SD0999# will set:
1st channel lighting time: 150μs
2nd channel lighting time: 320μs
3rd channel lighting time: 280μs
4th channel lighting time: 999μs
Note:
A = Channel 1
B = Channel 2
C = Channel 3
D = Channel 4
