Small size, easy to install;
Infinitely adjustable brightness, simple structure and good stability;* With external trigger function and short circuit protection function;
The appearance logo is concise and easy to operate.
Infinitely adjustable brightness, simple structure and good stability;* With external trigger function and short circuit protection function;
The appearance logo is concise and easy to operate.
K790 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection

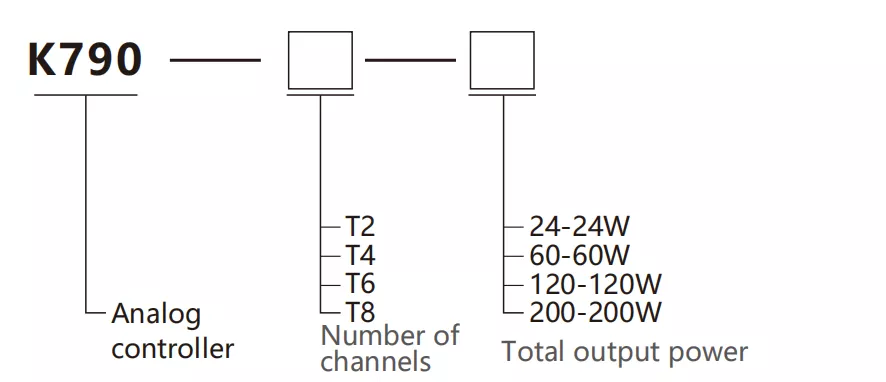

Selection example: K790-T2-60 indicates the K790 series, with 2 channels and a total output power of 60W.
Specifications
Name | Analog controller | |||||
Model | K790-T2-10 | K790-T2-24 | K790-T2-60 | K790-T4-60 | K790-T6-120 | K790-T8-120 |
| K790-T2-120 | K790-T4-120 | K790-T6-200 | K790-T8-200 | |||
Appearance |  | |||||
The output voltage | 5V | Maximum 24V DC | ||||
External trigger voltage | 12～24V | 5~24V DC | ||||
Output Power | 10W | 24W | 60W/120W | 60W/120W | 120W/200W | 120W/200W |
Input power | 100～240VAC 50/60Hz | 100~200VAC 50Hz | ||||
Bright adjustment | PWM | Knob manual adjustment | ||||
Control state | / | Constant on/constant off mode switching | ||||
Ambient temperature | / | 20～85%RH | ||||
Environment humidityn | -5~50℃ | 0～60℃ | ||||
Trigger delay time | <100μs | / | ||||
Maximum output current of a single channel | 1A | / | ||||
Mode switching | Constant on (MANU)/constant off (REMO) mode switching: Switch by toggling the switch. In constant on mode, the light source output is turned on, and the light source output is turned off when an external trigger signal is given; In constant off mode, the light source output is turned off, and the light source output is turned on when an external trigger signal is given. | |||||
