Use a special condenser lens to converge the high-brightness LED into a linear light with high brightness;
Illuminated by a special lens to keep the light bright and even and soft;
Illuminated by a special lens to keep the light bright and even and soft;
Suitable for detecting objects with high reflectivity or printing surfaces.

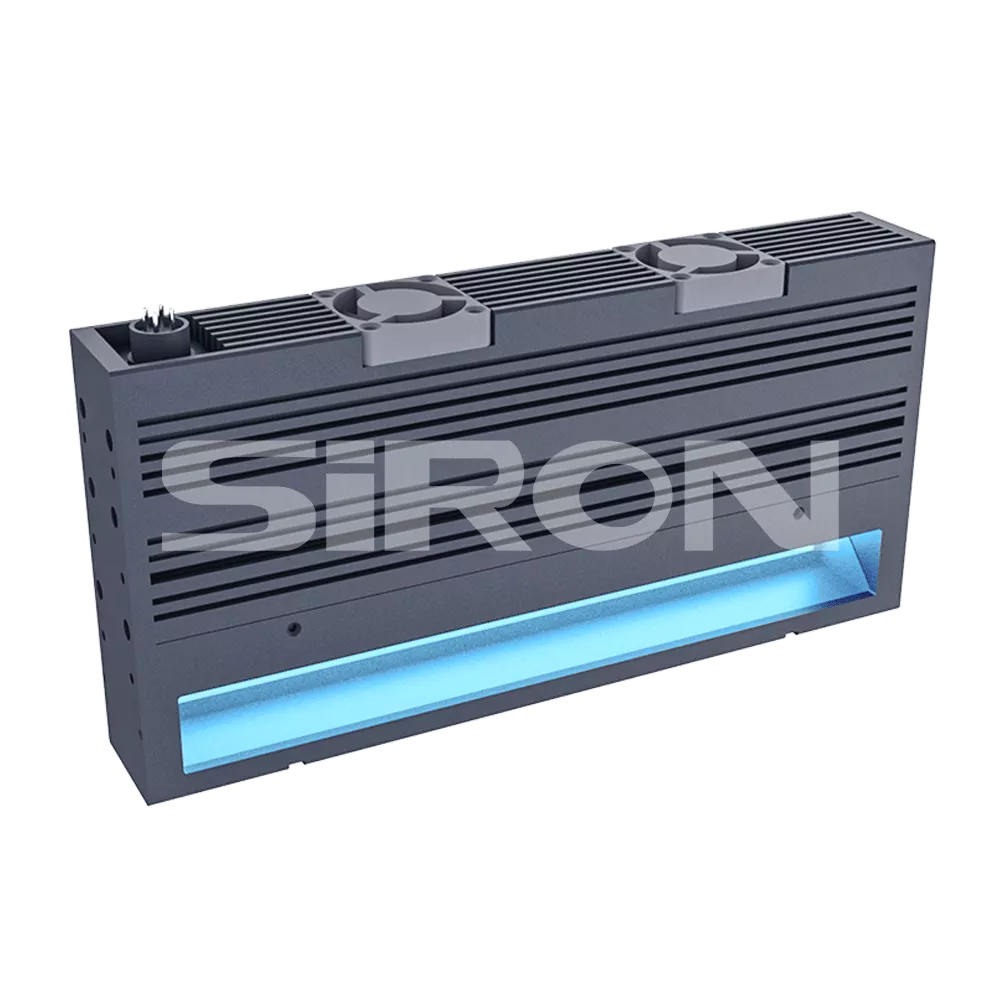

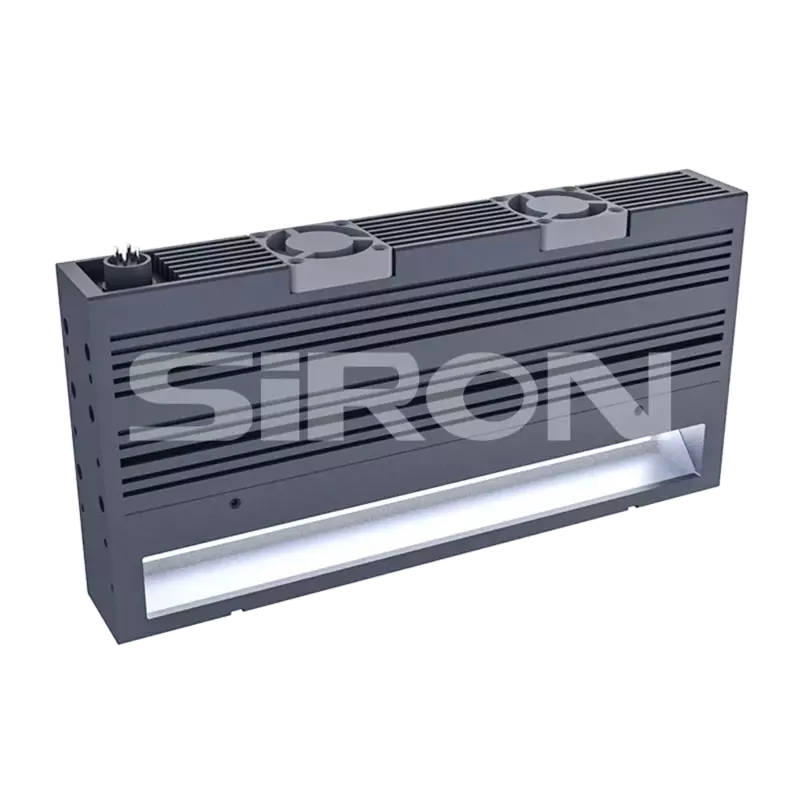

K734 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description

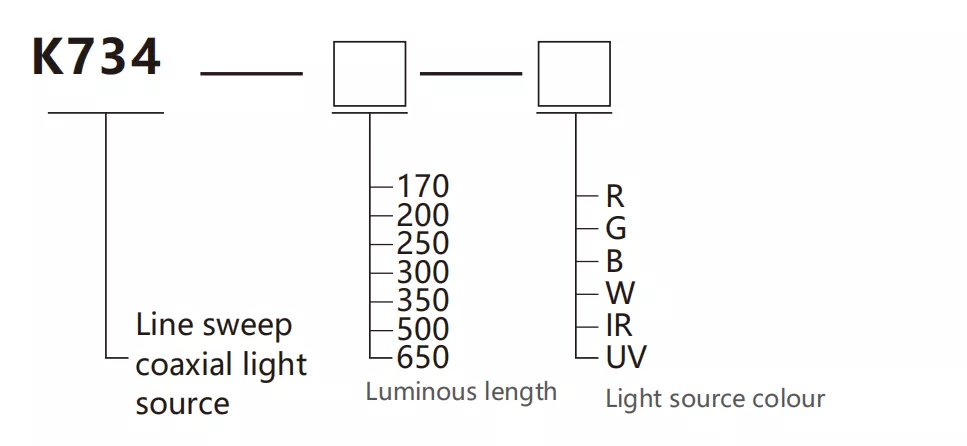

About selection
Selection example:
K734-170-R indicates the K734 series,the luminous length is 170mm, and the light source color is red.
Note: 1. R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
Specifications
| Name | Line scan coaxial light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | High power 24V constant current controller |
| Scope of application | Mobile phone screen detection industry;Steel plate testing industry;Glass scratch detection industry |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
