Use a special condenser lens to converge the high-brightness LED into a linear light with high brightness;
Illuminated by a special lens to keep the light bright and even and soft;
Suitable for detecting objects with high reflectivity or printing surfaces.
Suitable for detecting objects with high reflectivity or printing surfaces.

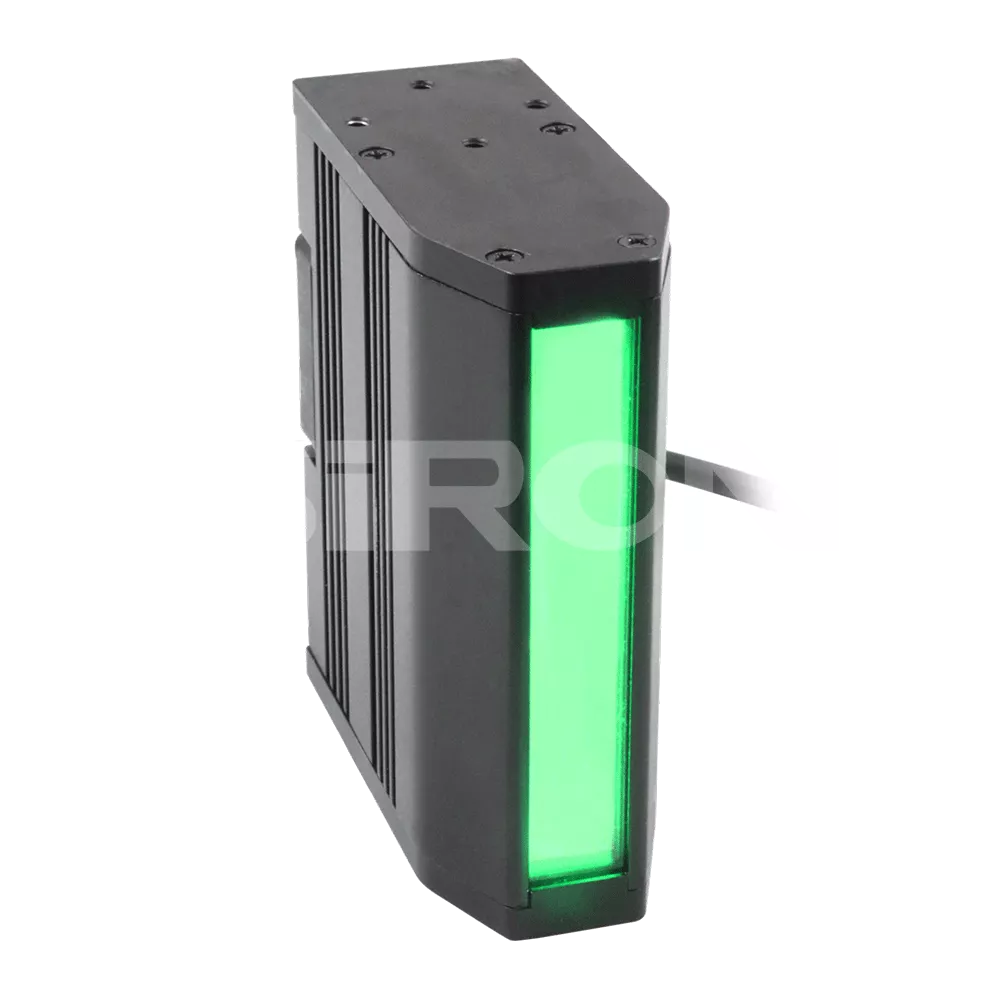

K733 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection

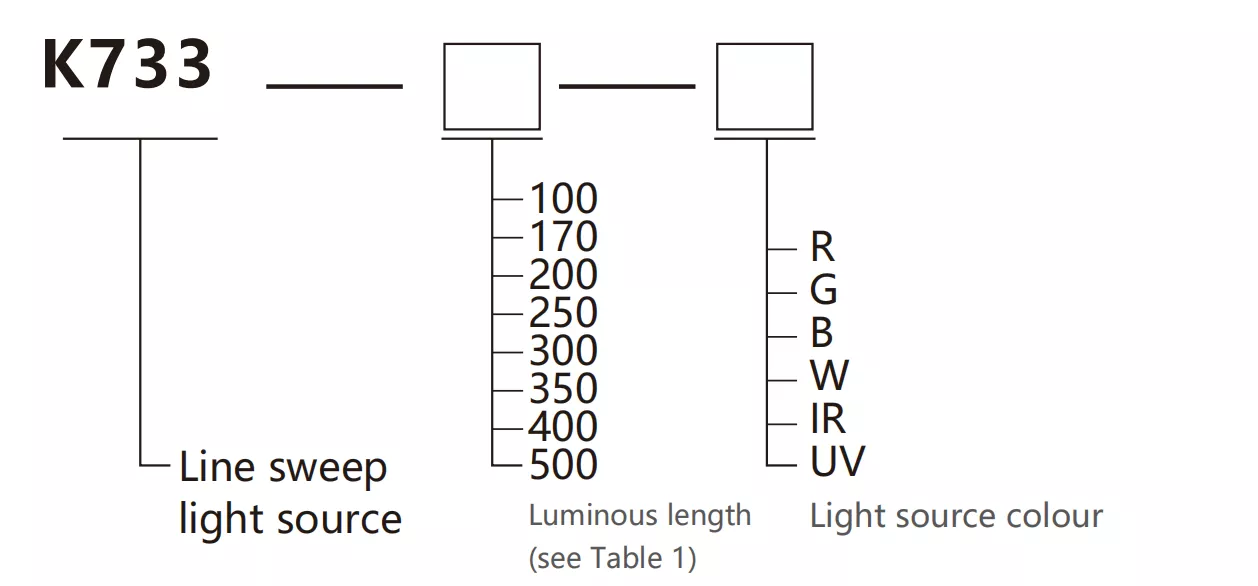

Selection example: K733-100-R indicates the K733 series, the luminousleng this 100mm,the light source color is red.
Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet. mm

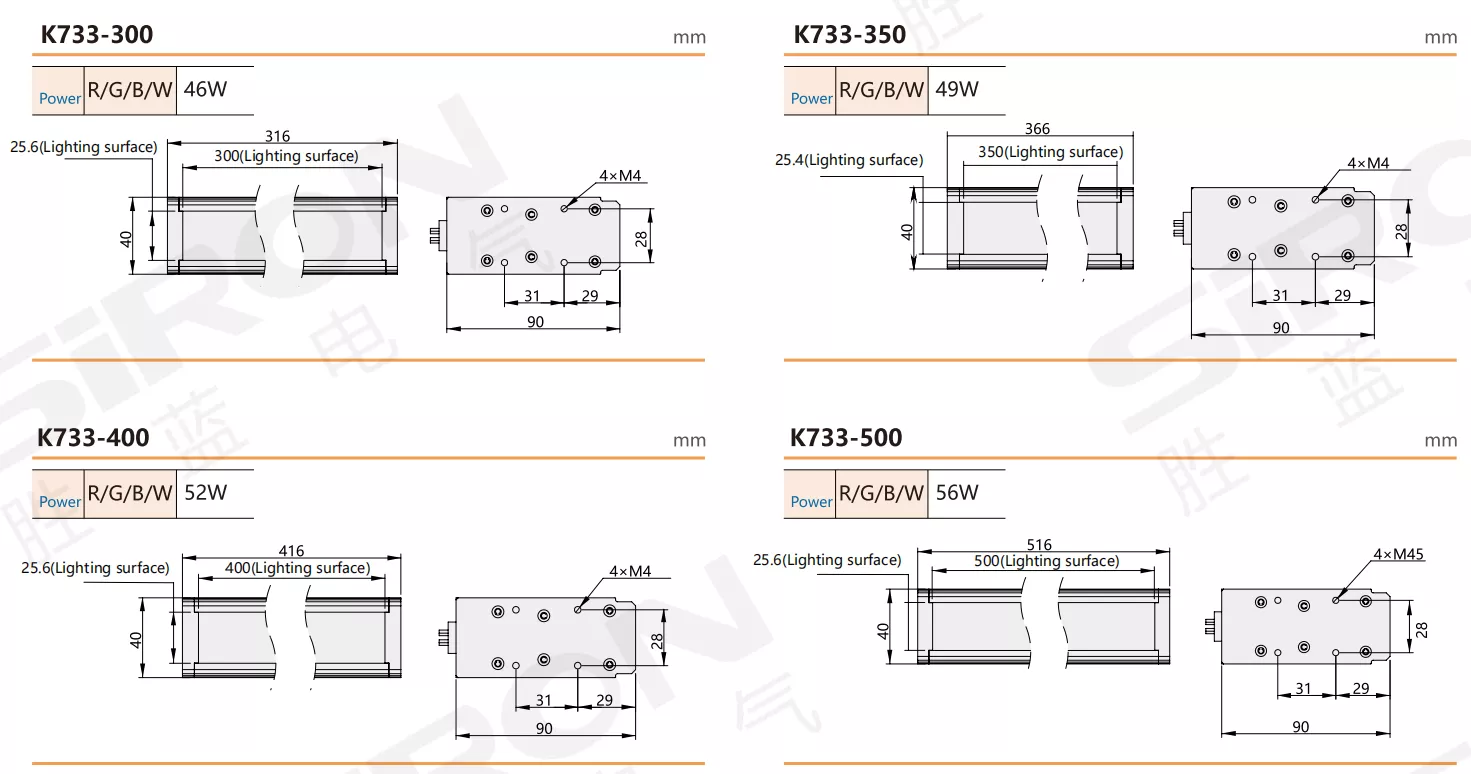

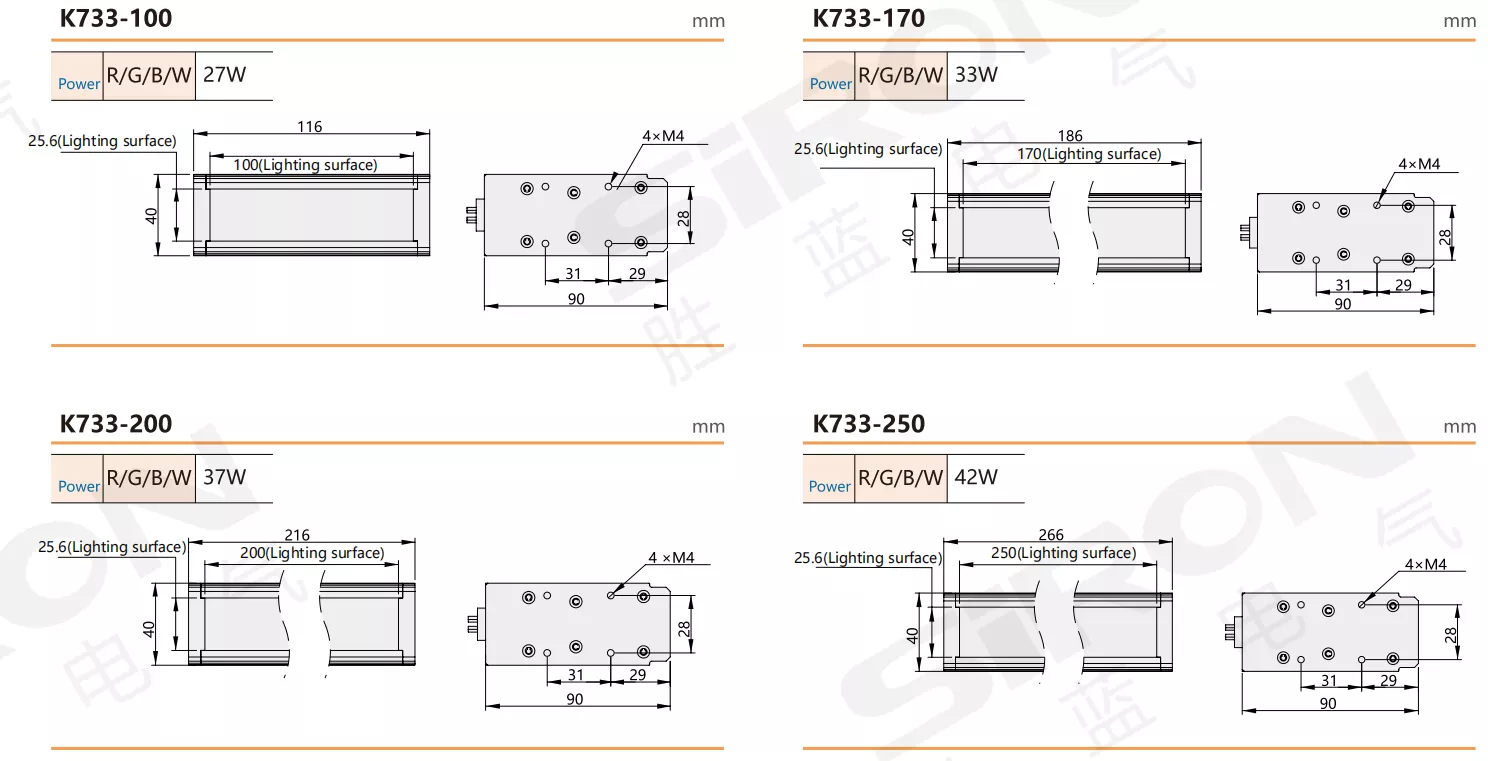

| Model number | K733-100 | K733-170 | K733-200 | K733-250 | K733-300 | K733-350 | K733-400 | K733-500 |
| Lighting surface | 94 | 164 | 194 | 250 | 294 | 344 | 394 | 494 |
Specifications
| Name | Line scan light source |
| Appearance | White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | High power 24V constant current controller |
| Scope of application | Mobile phone screen detection industry;Steel plate testing industry;Glass scratch detection industry |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
