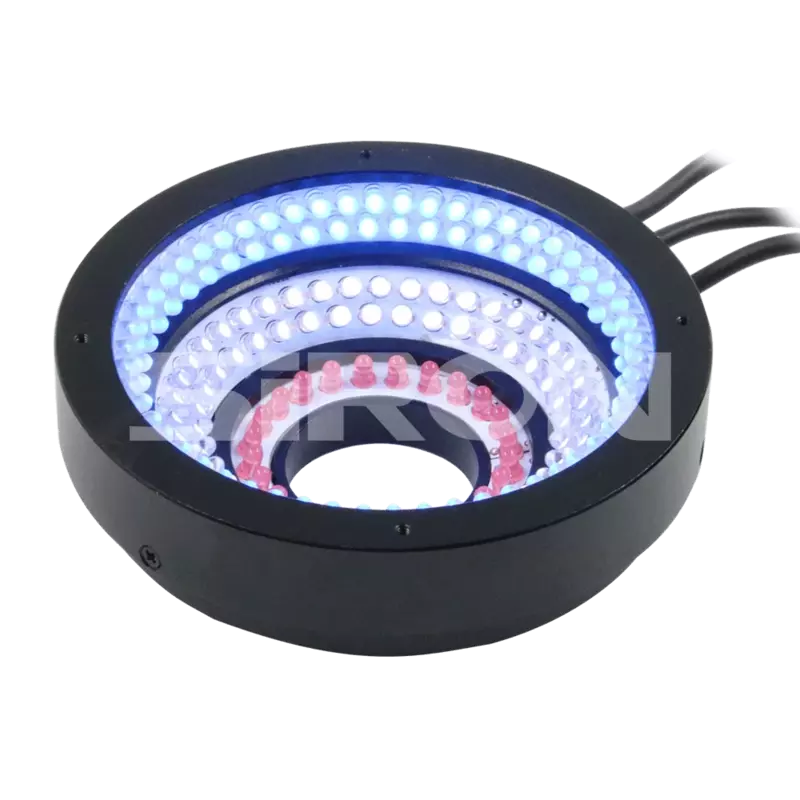

AOI dedicated light source, using RGB three-color high-brightness LED array;
Different angles and different colors illuminate the object, which can highlight the three-dimensional information of the object;
Detect defects such as missing parts, wrong parts, missing soldering, false soldering, and wrong polarity on the PCB board.* Optional coaxial light for supporting use.
Different angles and different colors illuminate the object, which can highlight the three-dimensional information of the object;
Detect defects such as missing parts, wrong parts, missing soldering, false soldering, and wrong polarity on the PCB board.* Optional coaxial light for supporting use.
K732 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description

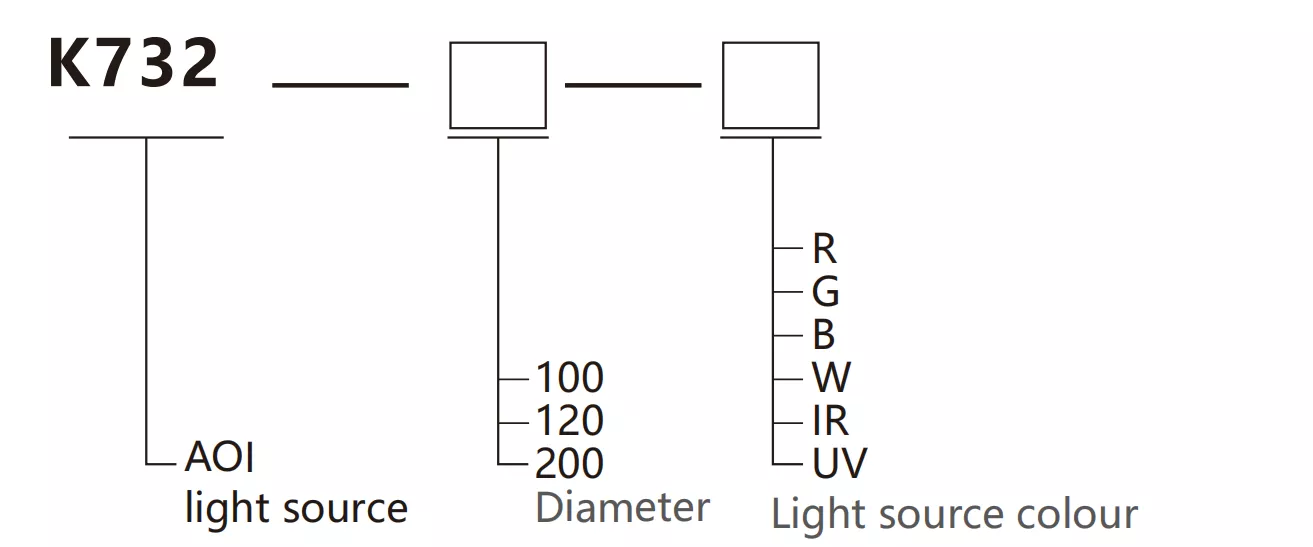

About selection
Selection example:
K732-100-RWB indicates the K732 series,with a diameter of 100mm,and the color of the light source is red,white and blue from the inside out.
Note: 1. R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
2. RGBW four colors can be mixed.
3. choosethelight sourcelampfull color: from insideto outside.
Specifications
| Name | AOllight source |
| Appearance |  |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Point light source 24V constant current controller |
| Scope of application | Check the welding quality of circuit board components;PCB board welding defect detection;Printed character detection |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
