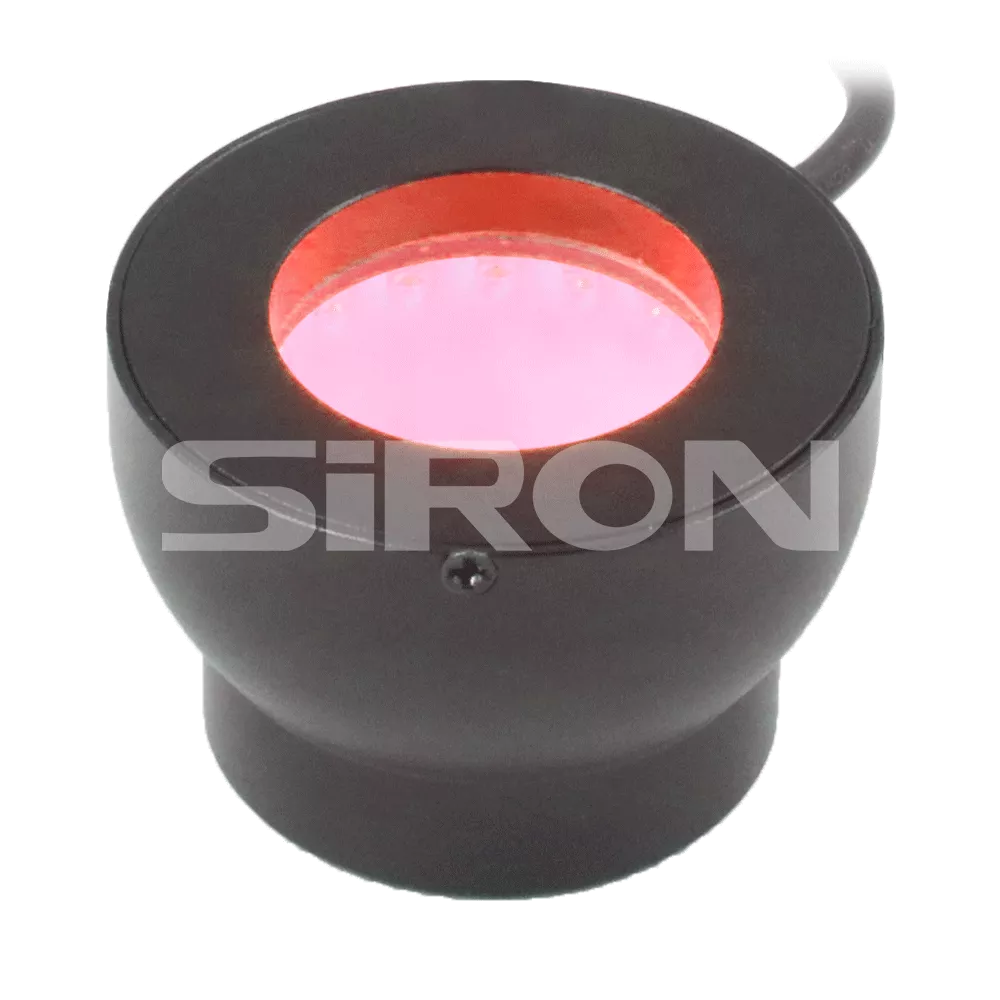

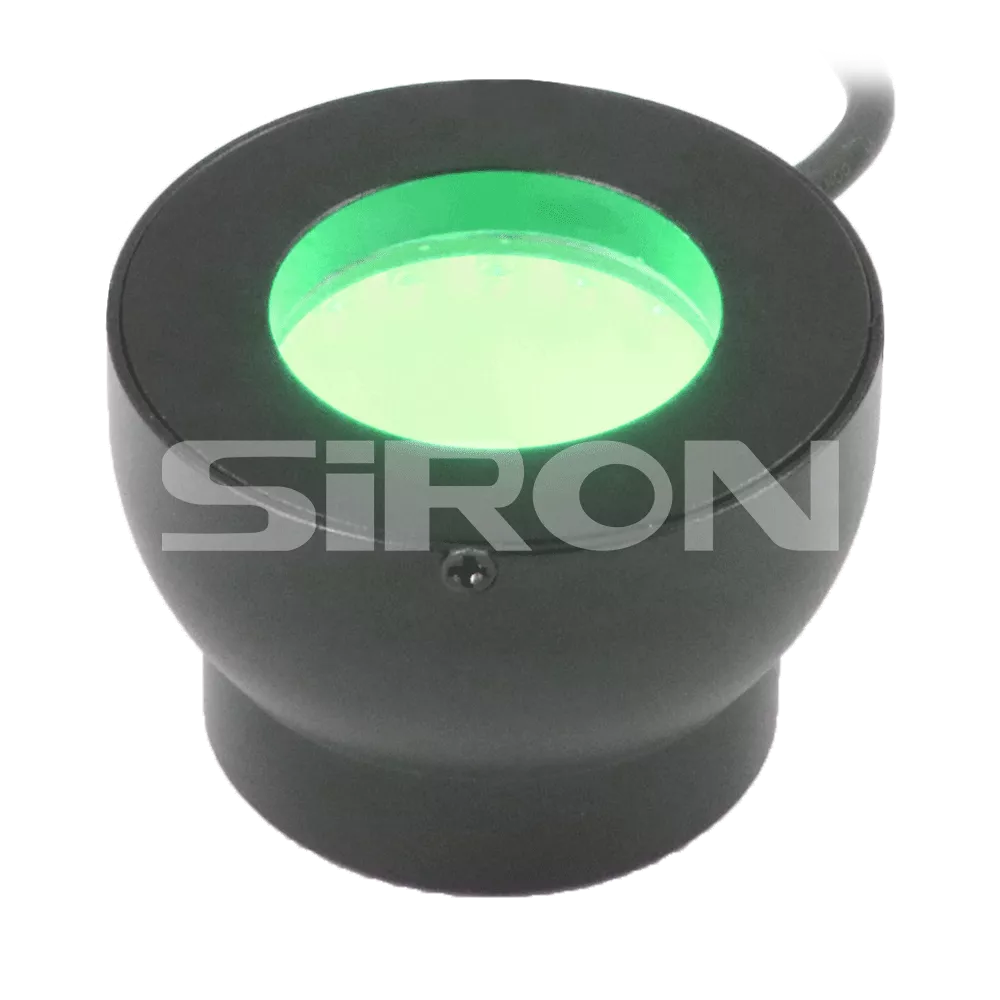

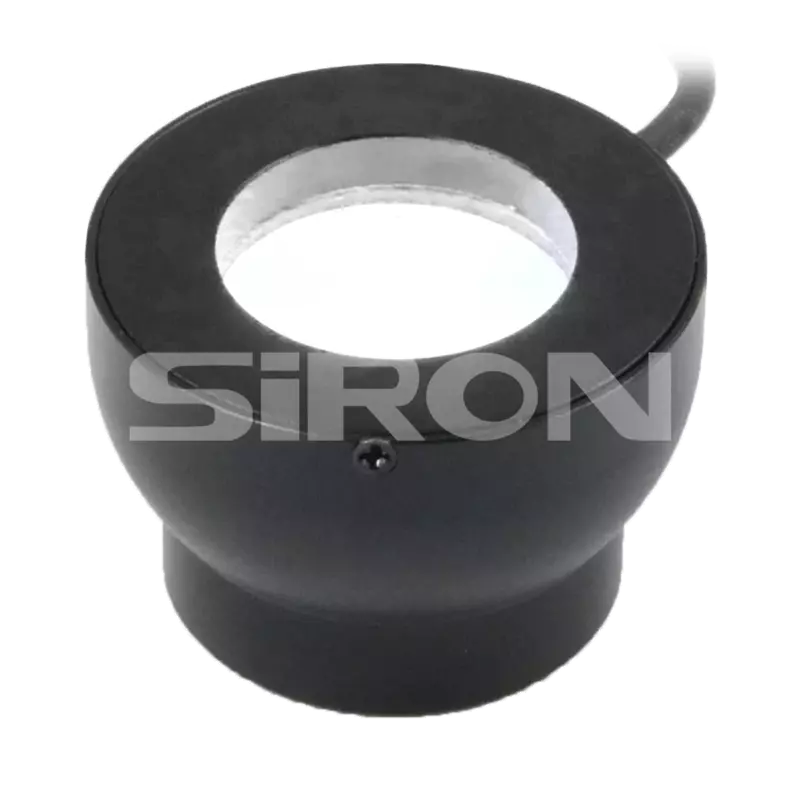

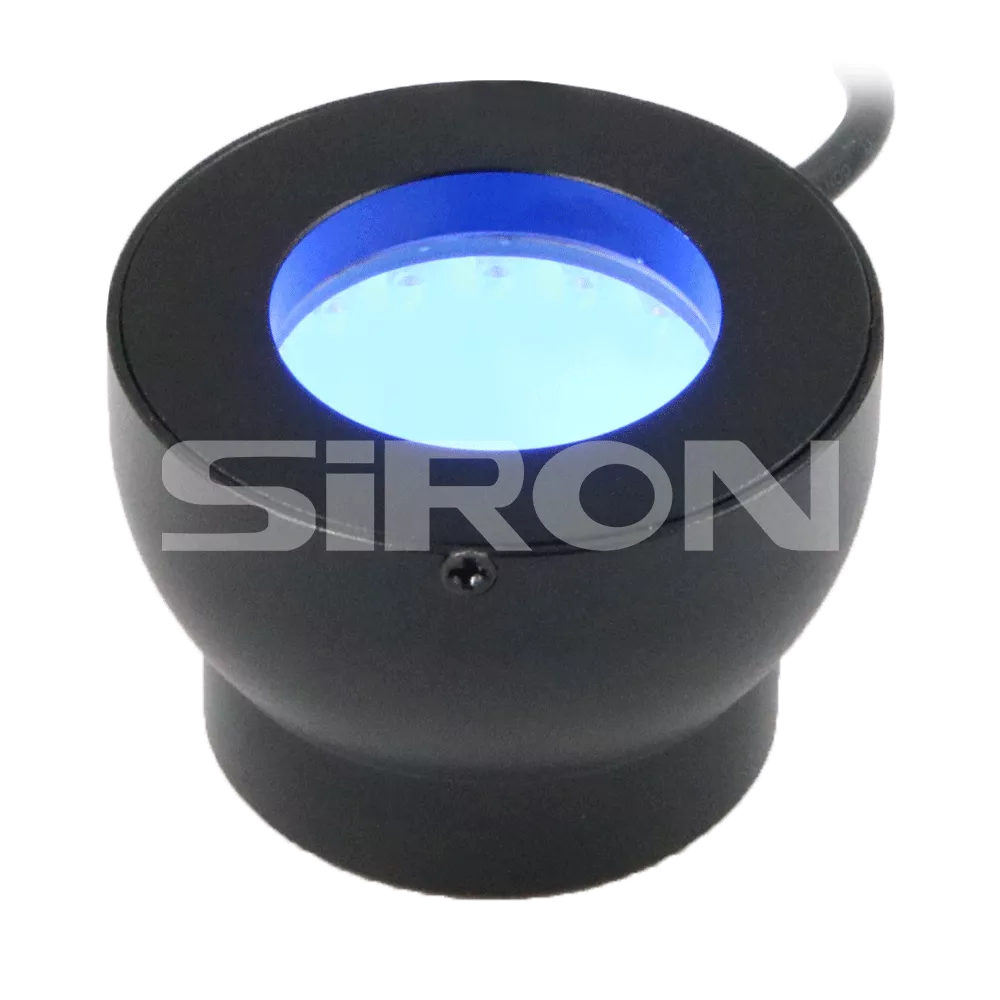

The bowl light source is a highly uniform light source;
The light emitted by the LED forms a uniform light after being emitted from the spherical surface;
The light emitted by the LED forms a uniform light after being emitted from the spherical surface;
Suitable for detecting objects with reflective surfaces and uneven surfaces.
Model:K730 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Selection example:

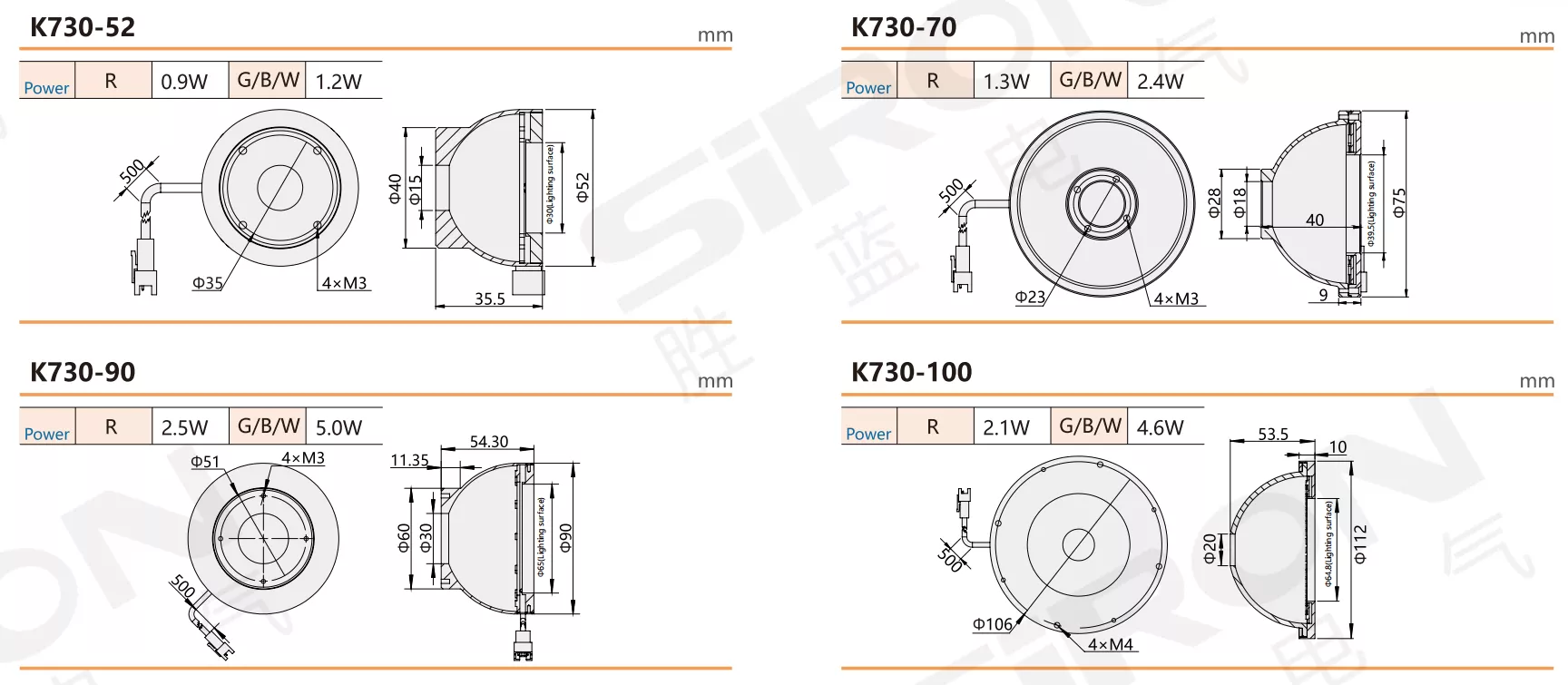

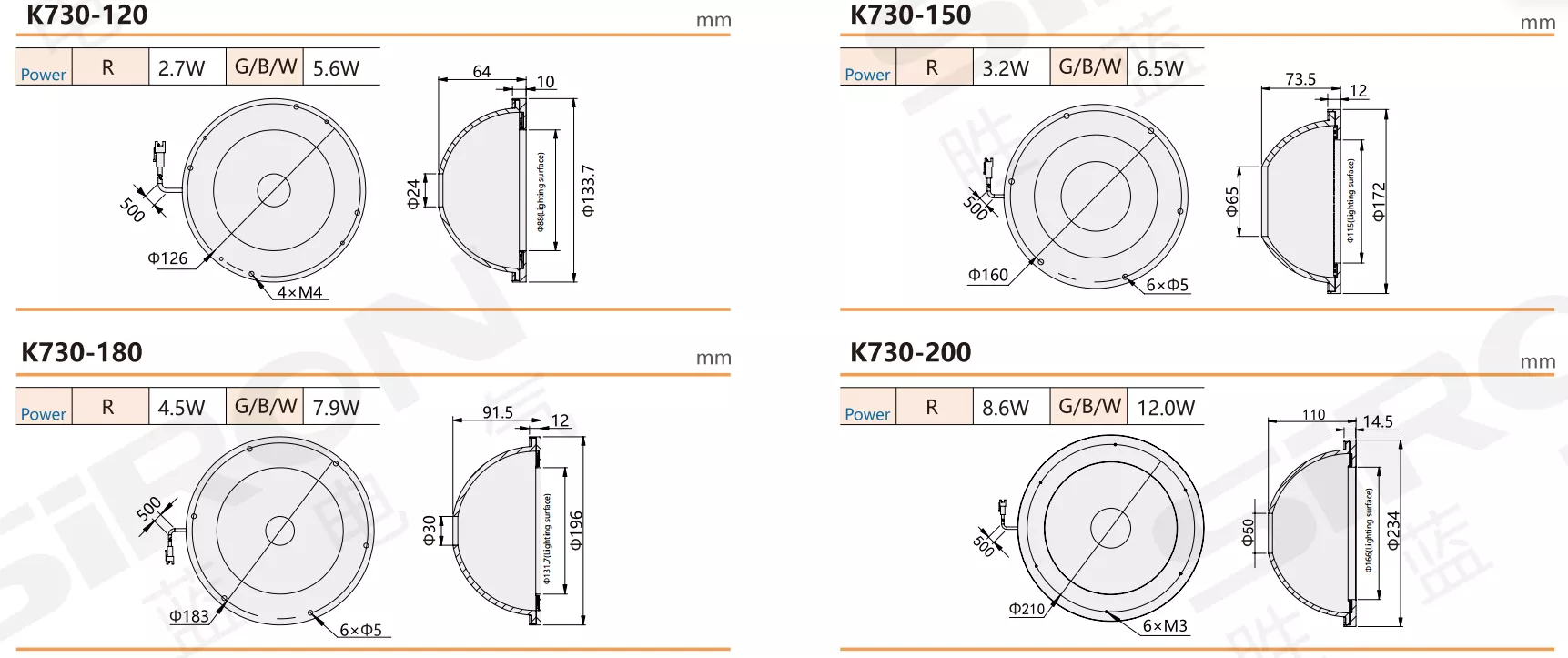

K730-52-R indicates the K730 series, the hemisphere diameter is 52mm, the light source color is red. mm
| Model number | K730-52 | K730-70 | K730-90 | K730-100 | K730-120 |
| Light Emitting Surface (Diameter) | 30 | 39.5 | 70 | 64.8 | 88 |
| Model number | K730-150 | K730-180 | K730-200 | K730-240 | K730-300 |
| Light Emitting Surface (Diameter) | 115 | 131.7 | 166 | 192 | 252 |
Specifications
| Name | Bowl light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Reflective object surface detection;Surface uneven object detection;Metal surface scratch detection |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
