The emitted light is on the same axis as the CCD camera after passing through the special lens;
About selection

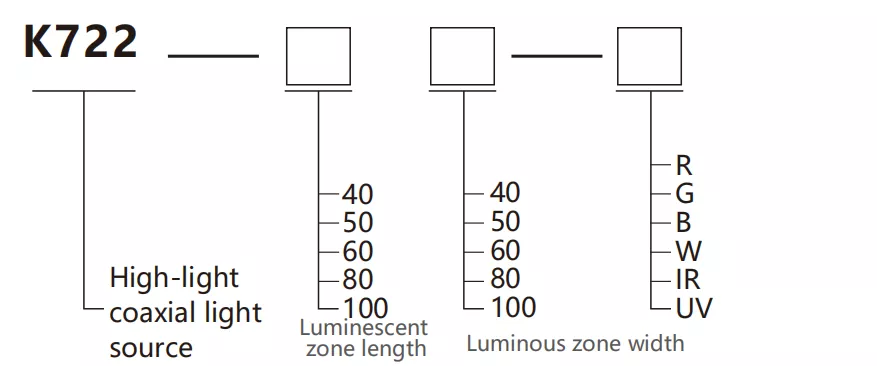

Selection example:
K722-4040-R indicates the K722 series,the lengthof the luminous area is 40mm,the width of the luminous area is 40mm,and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet. mm

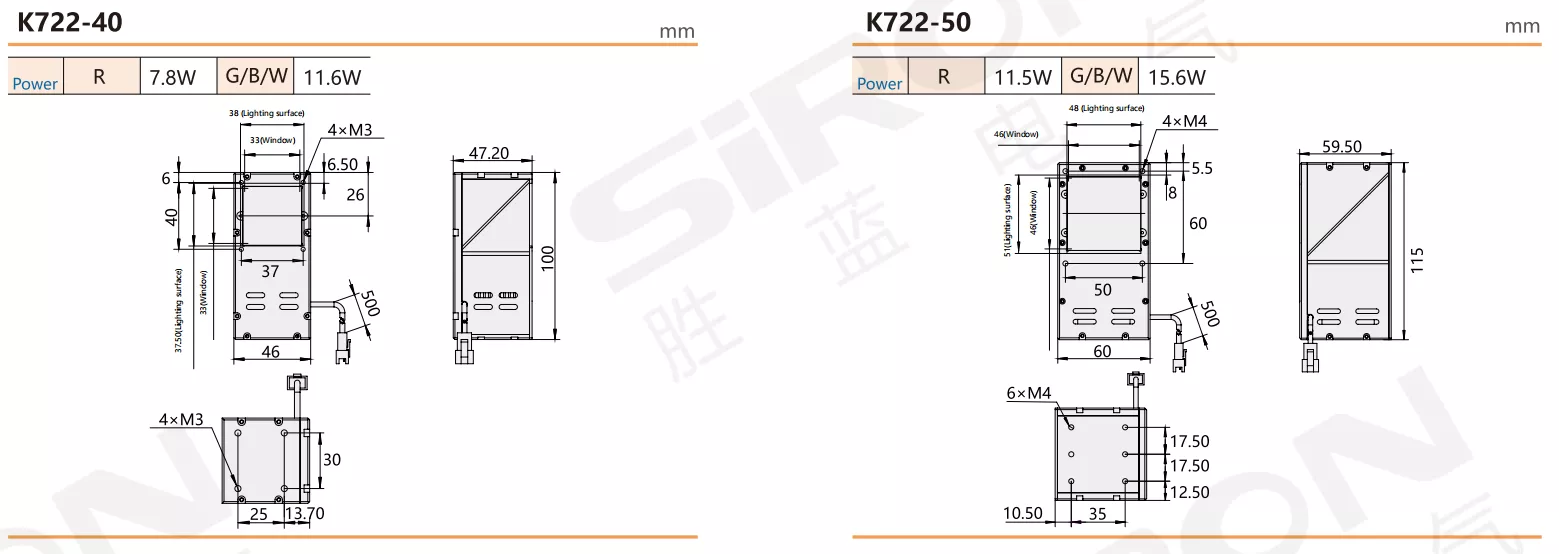

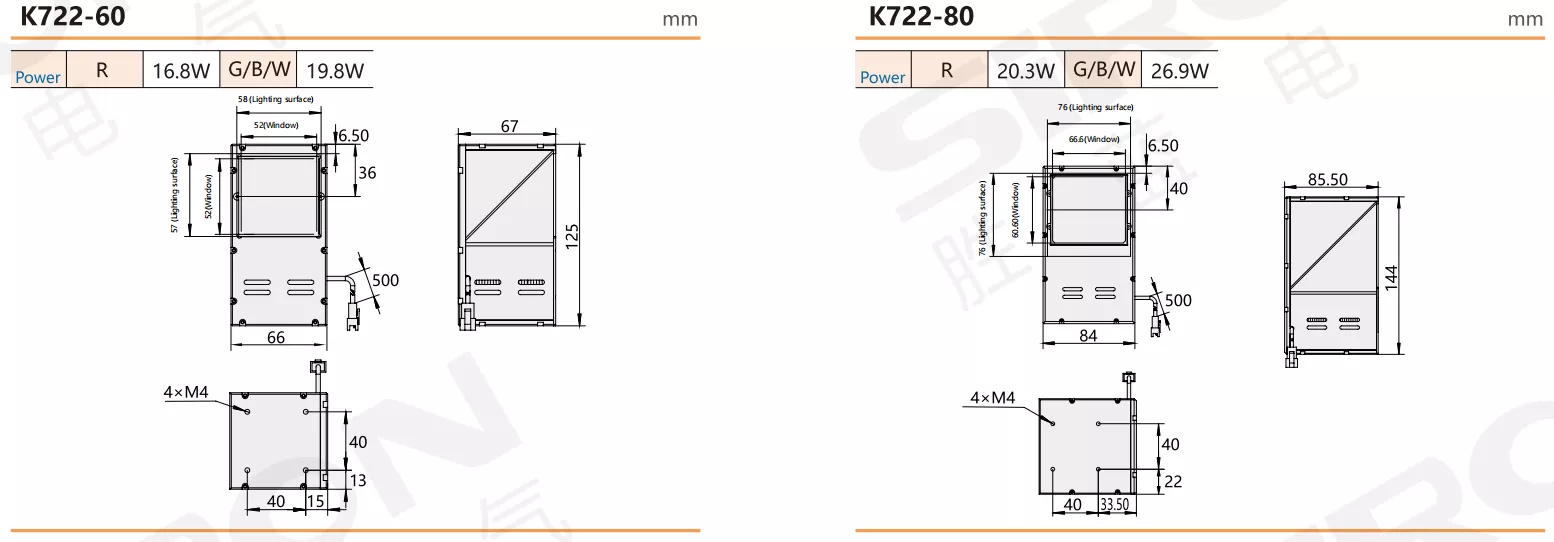

| Model number | K722-4040 | K722-5050 | K722-6060 | K722-8080 | K722-100100 |
| Lighting surface | 38×37.5 | 51×48 | 57×58 | 76×76 | 100×100 |
Specifications
| Name | Bright coaxial light source |
| Appearance |

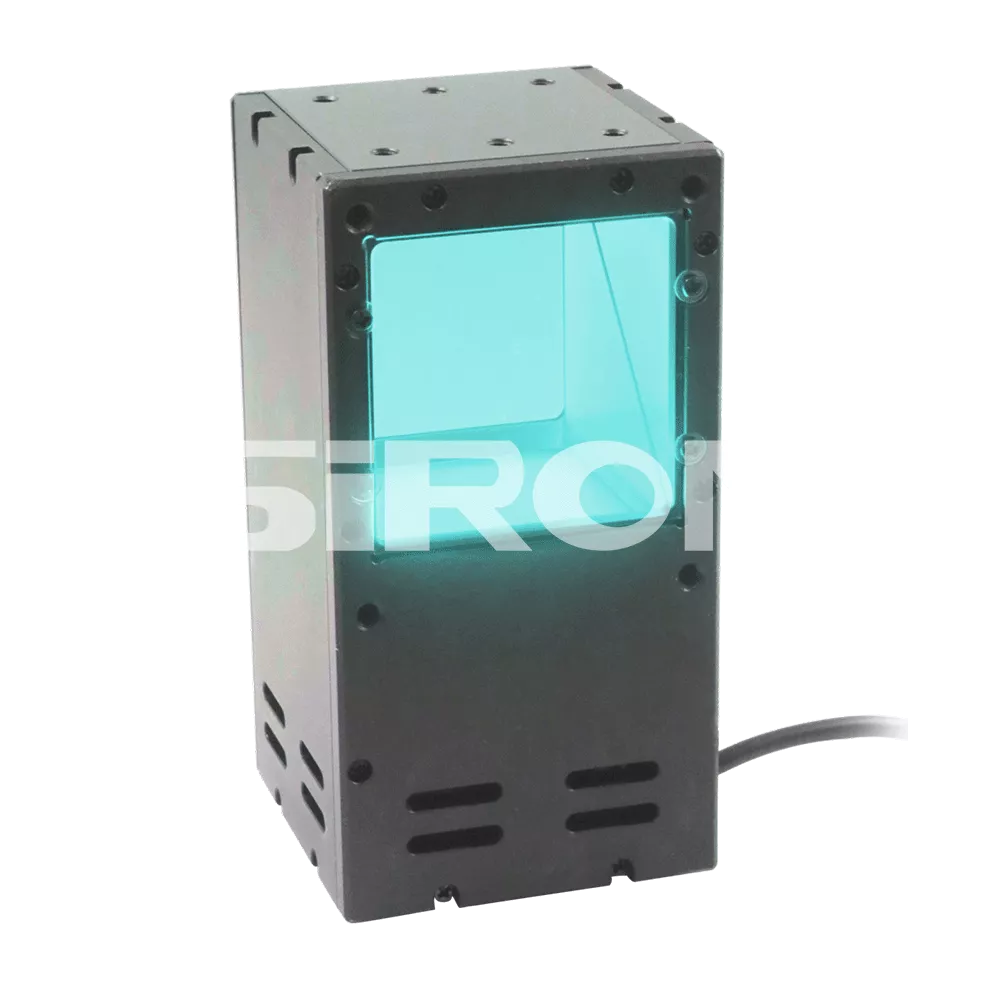

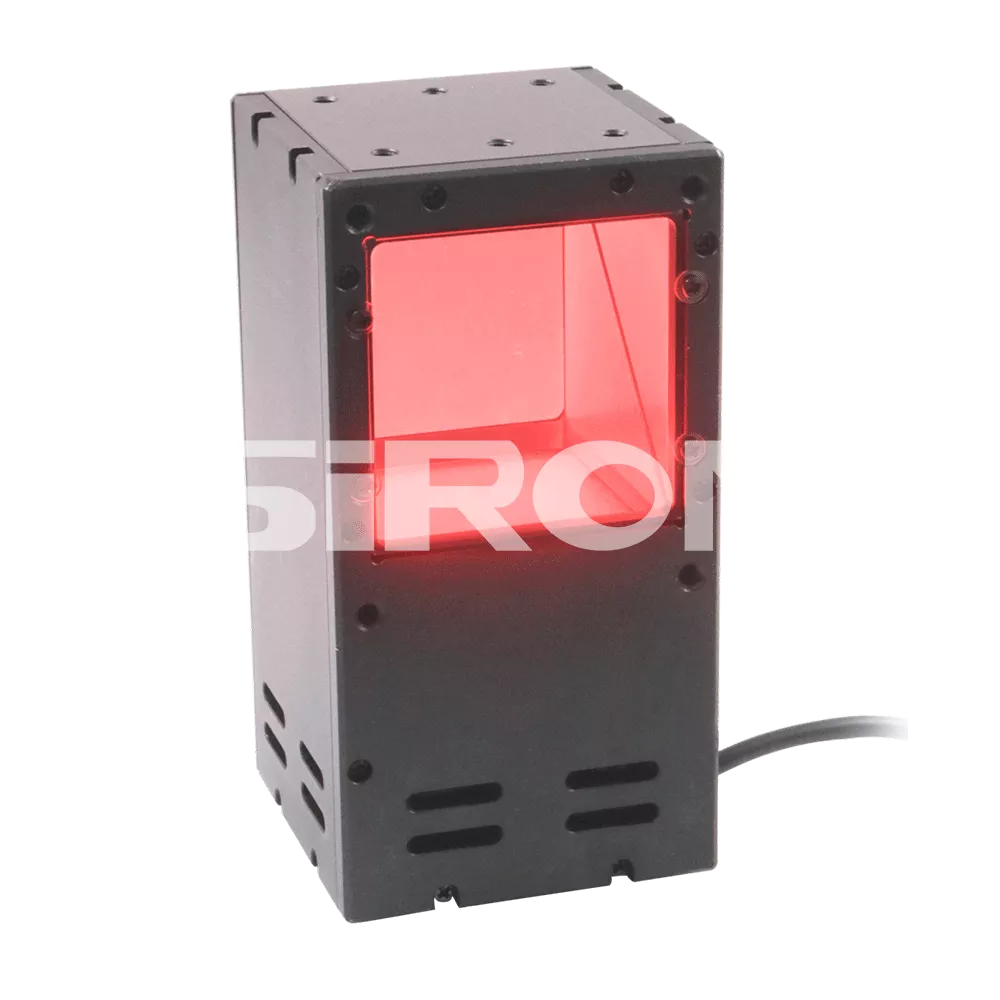

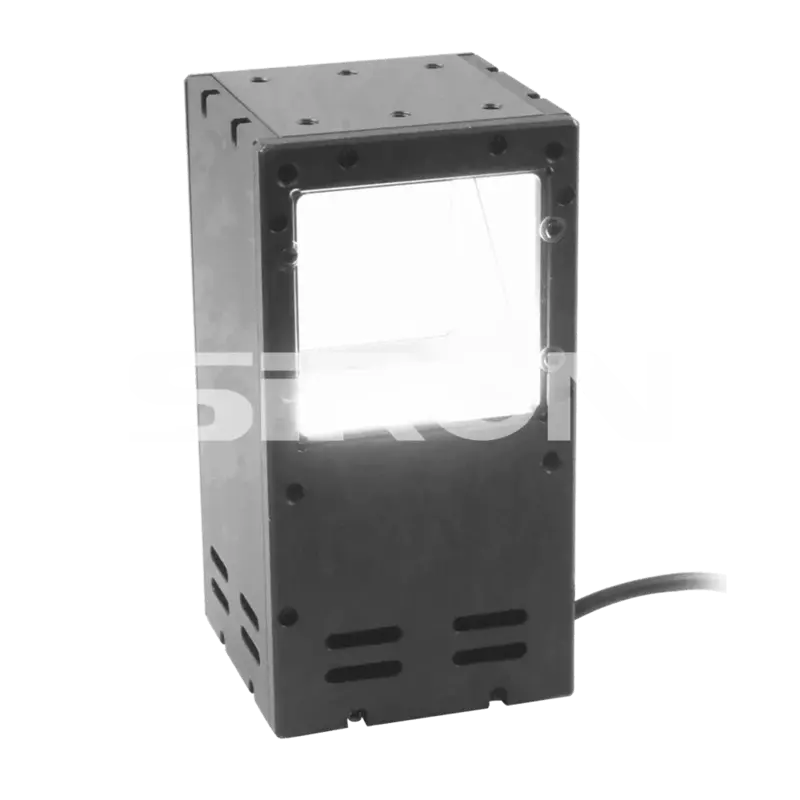

White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Reflective object surface detection;Surface uneven object defect detection;Metal surface scratch detection |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
