It can clearly detect defects such as scratches and gaps on the light-emitting surface, and has higher parallelism than ordinary coaxial light.
About selection
Selection example:
K721-4040-R indicates the K721 series,the length of the luminous area is 40mm, the width of the luminous area is 40mm,and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
2、Thevoltageof K721-100100 is 5V mm

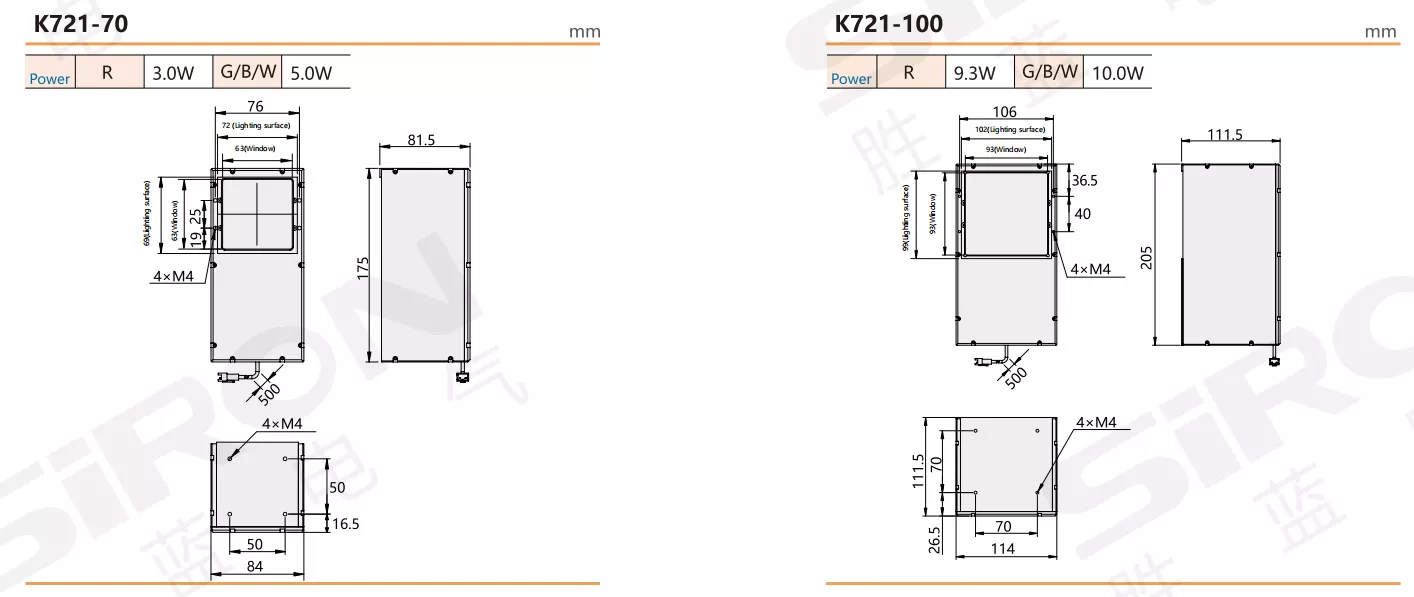

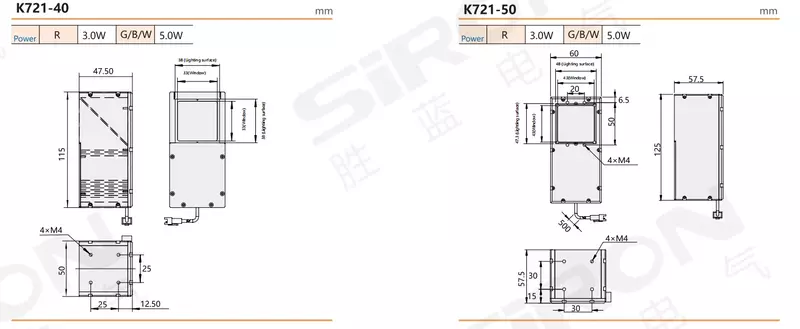

| Model number | K721-4040 | K720-5050 | K720-7070 | K720-100100 |
| Lighting surface | 38×38 | 48×47 | 72×69 | 102×99 |
Specifications

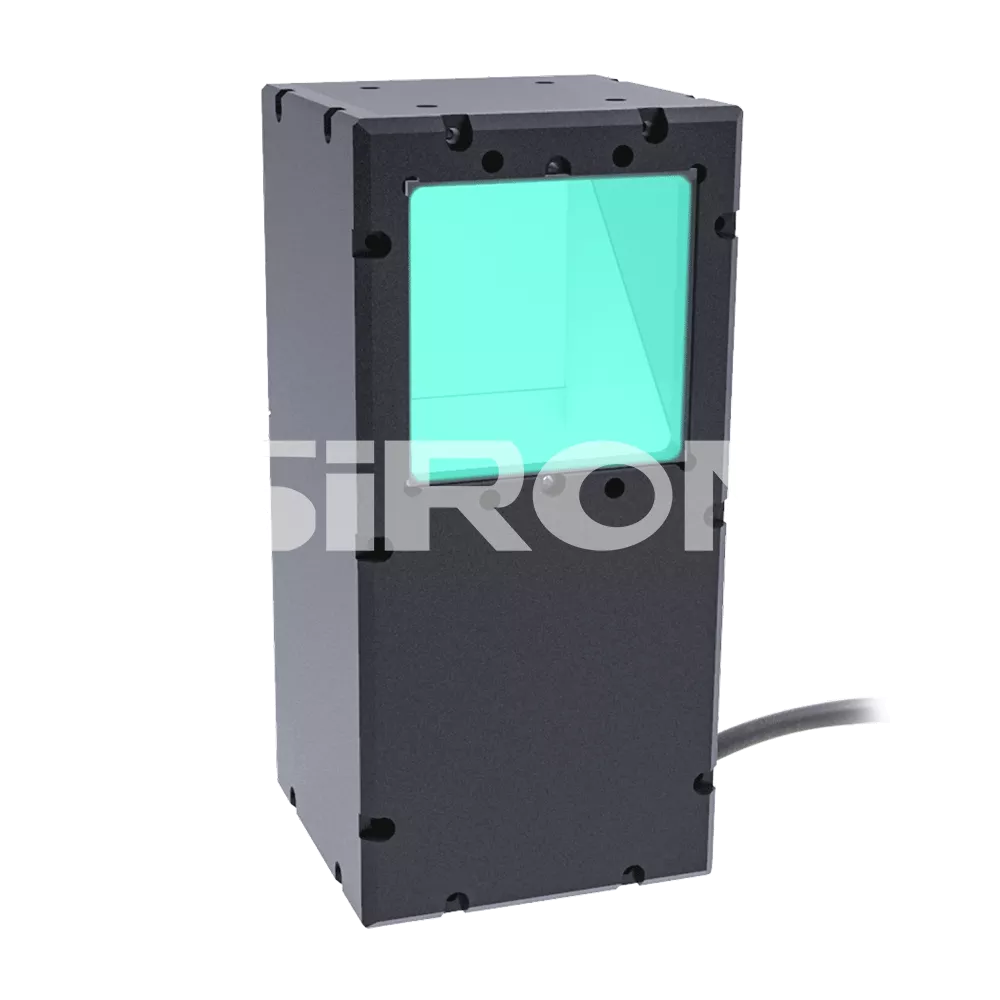

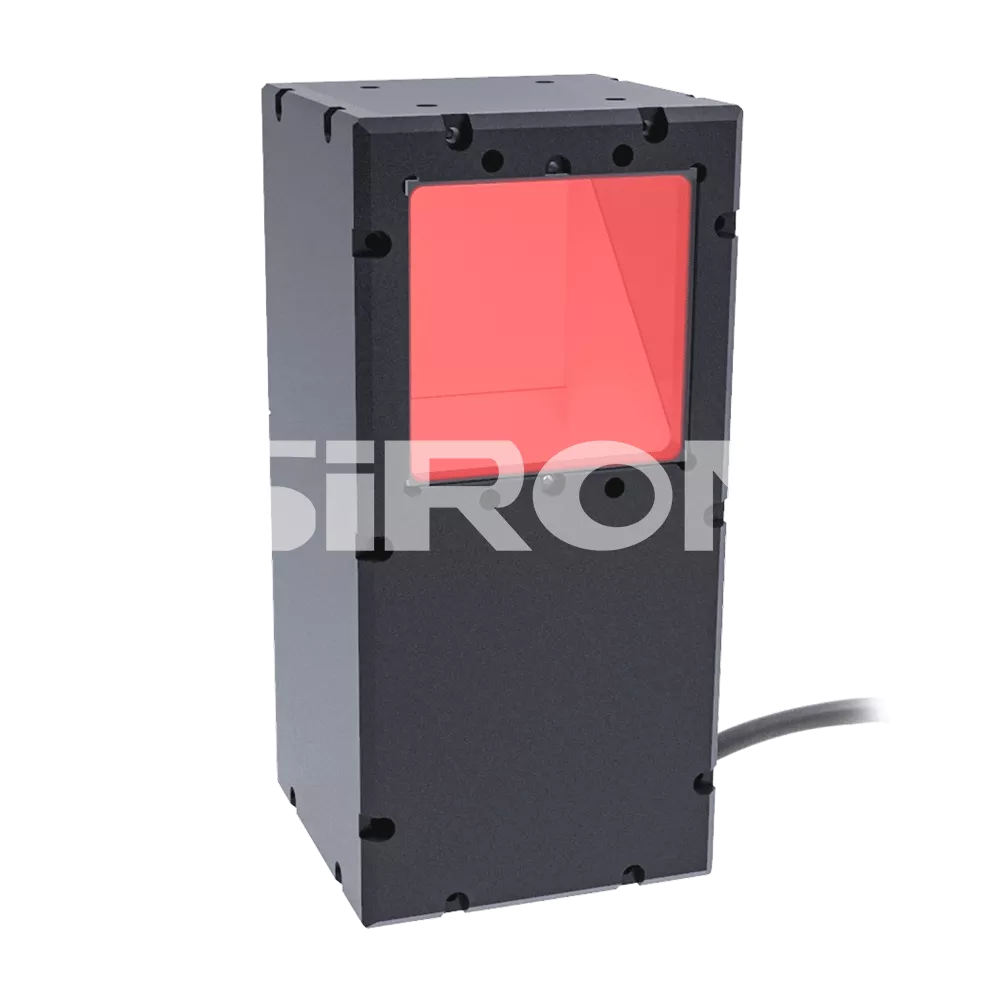

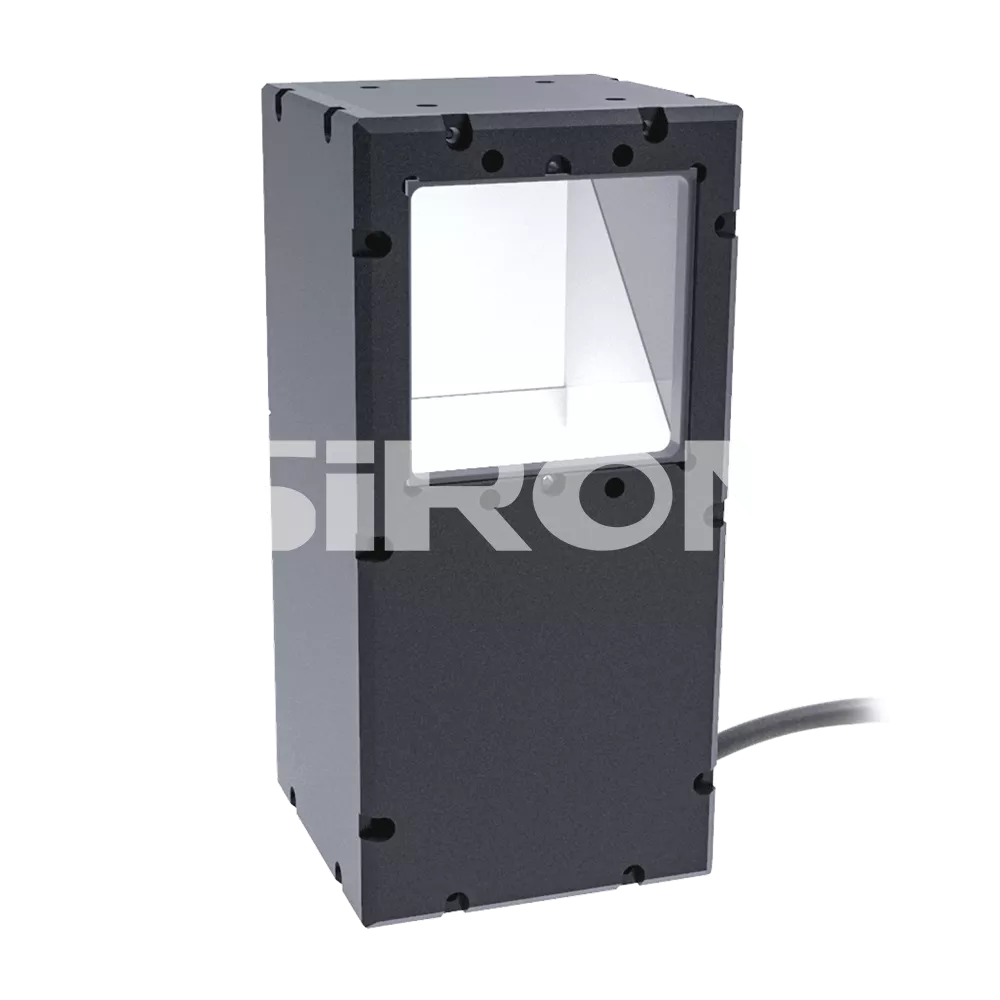

| Name | Parallel coaxial light source |
| Appearance |
White Red Green Blue |
| Voltage | 5V |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Metal surface defect detection;Glass inspection;Optical disc scratch detection |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
