It has good luminous intensity and uniform diffusion and illumination effect;
The size can be customized freely, which is convenient for customers to choose.

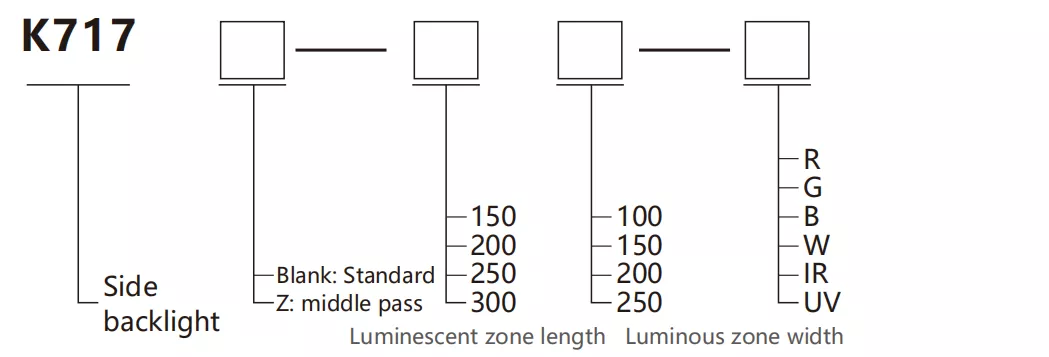

About selection
Selection example:
K717Z-150100-R indicatesthe K717 series,witha middlepass,the length of the luminous zone is 150mm, the width of the luminous zone is 100mm,and the color of the light source is red.
Note: 1, R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet

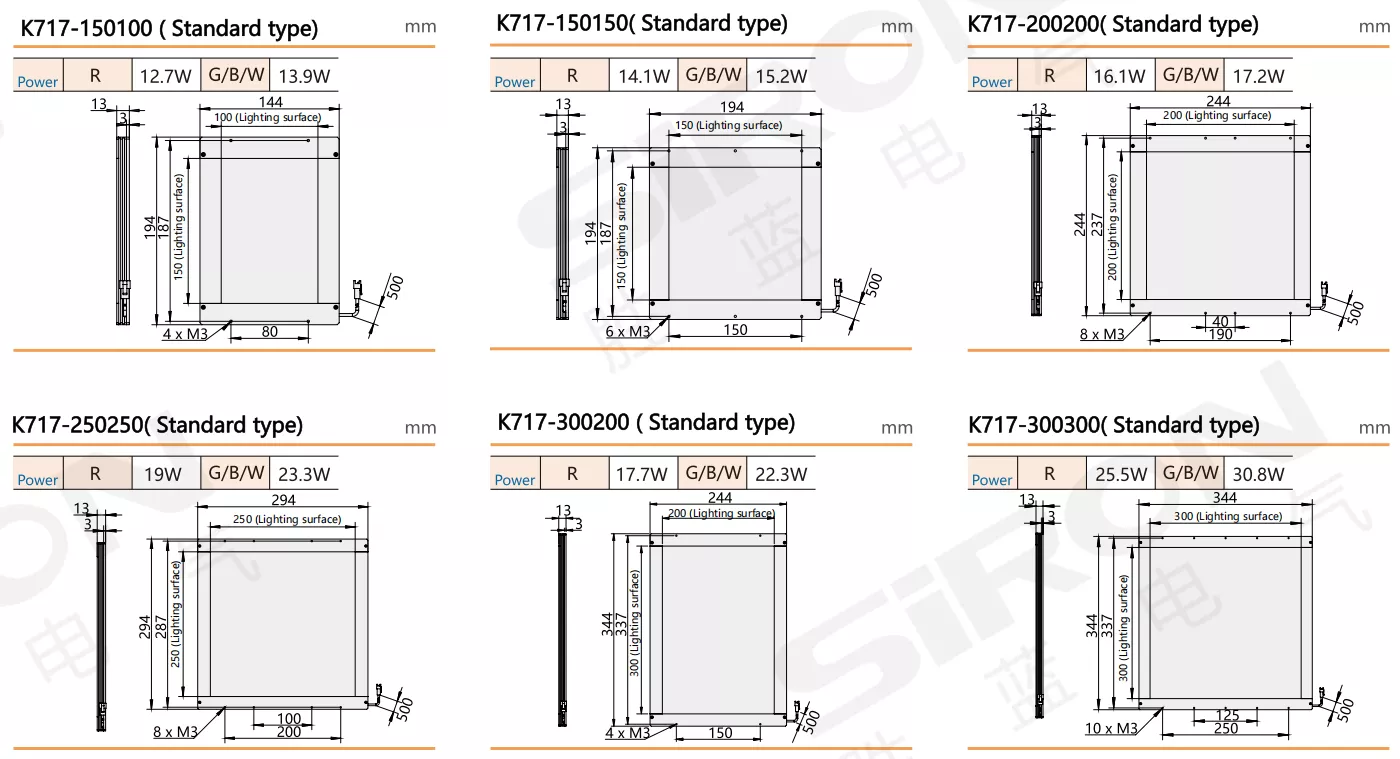

Standard Type
mm
| Light Emitting Area Length | 150 | 150 | 200 | 250 | 300 | 300 | 400 |
| Light Emitting Area Width | 150 | 100 | 200 | 250 | 200 | 300 | 400 |

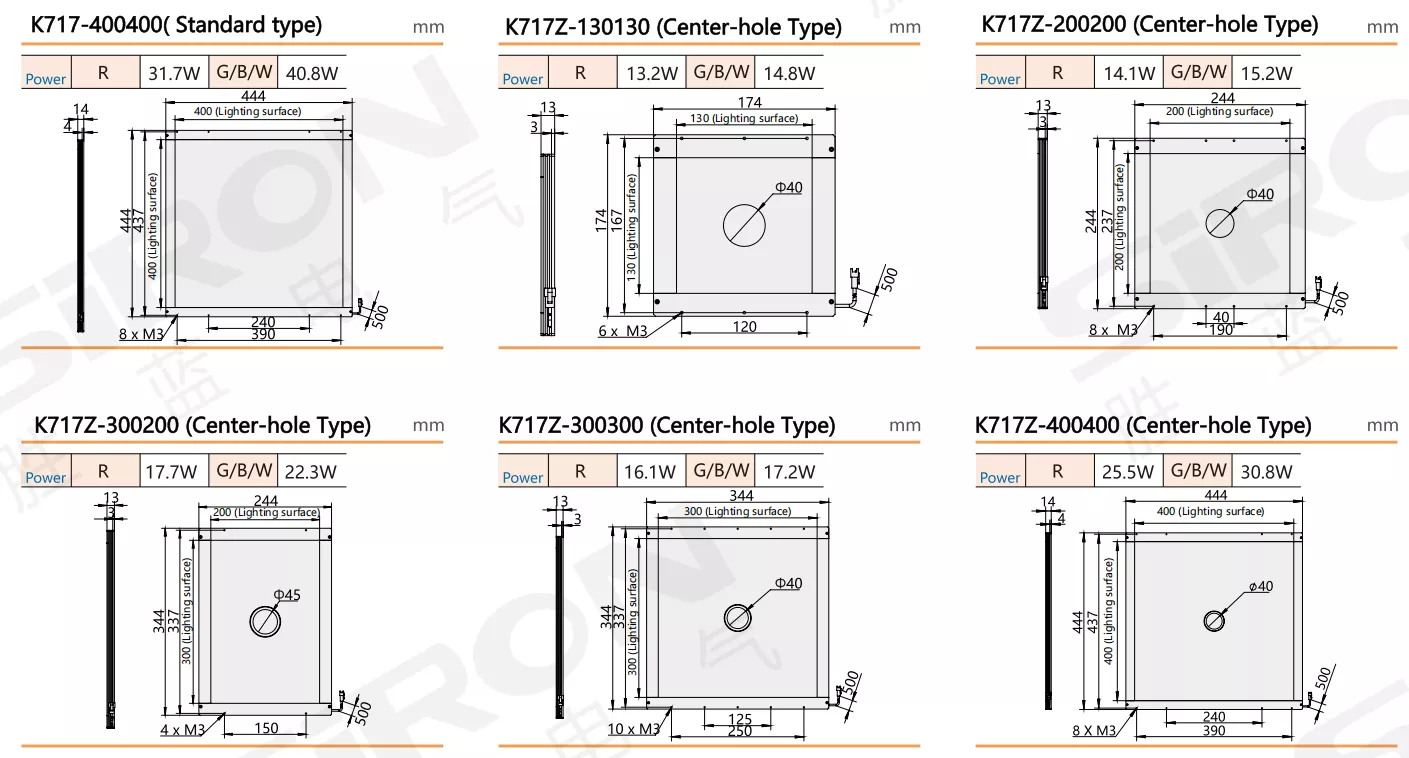

Center Hole Type
mm
| Light Emitting Area Length | 130 | 200 | 300 | 300 | 400 |
| Light Emitting Area Width | 130 | 200 | 200 | 300 | 400 |
Specifications
| Name | Side backlight |
| Appearance |
White Red Green Blue |
| Voltage | 24VDC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | PCB board printing defect detection;Reflective surface defecion |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
