Better heat dissipation performance;
Adopt imported ultra-thin SMD LED design;
It can effectively improve the brightness and uniformity of the light source.

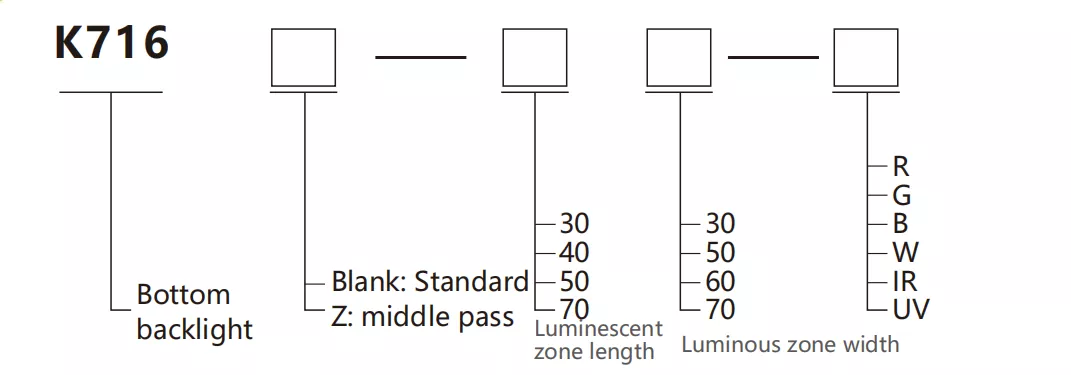

About selection
Selection example:
K716-5050-R indicates K716 series,standard type, the length of the luminous zone is 50mm, the width of the luminous zone is 50mm,and the color of the light source is red.

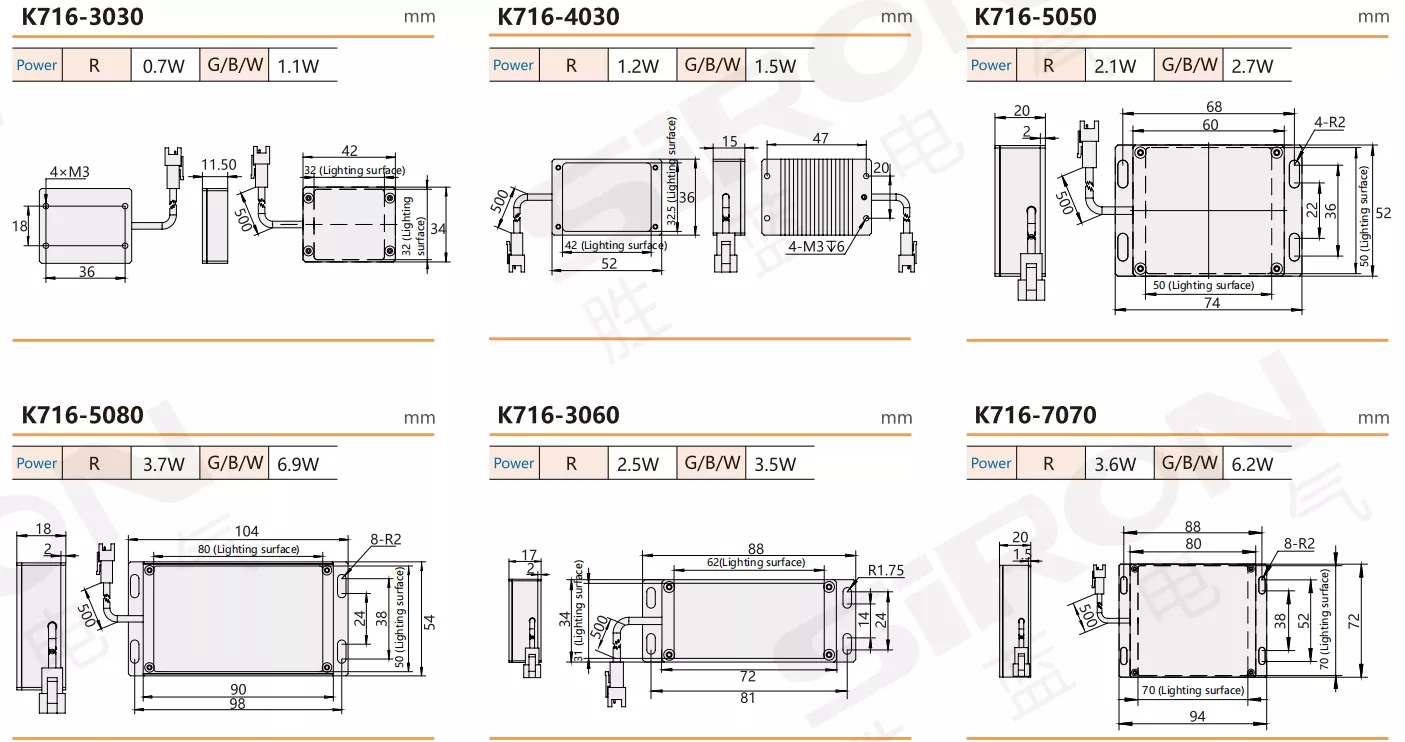

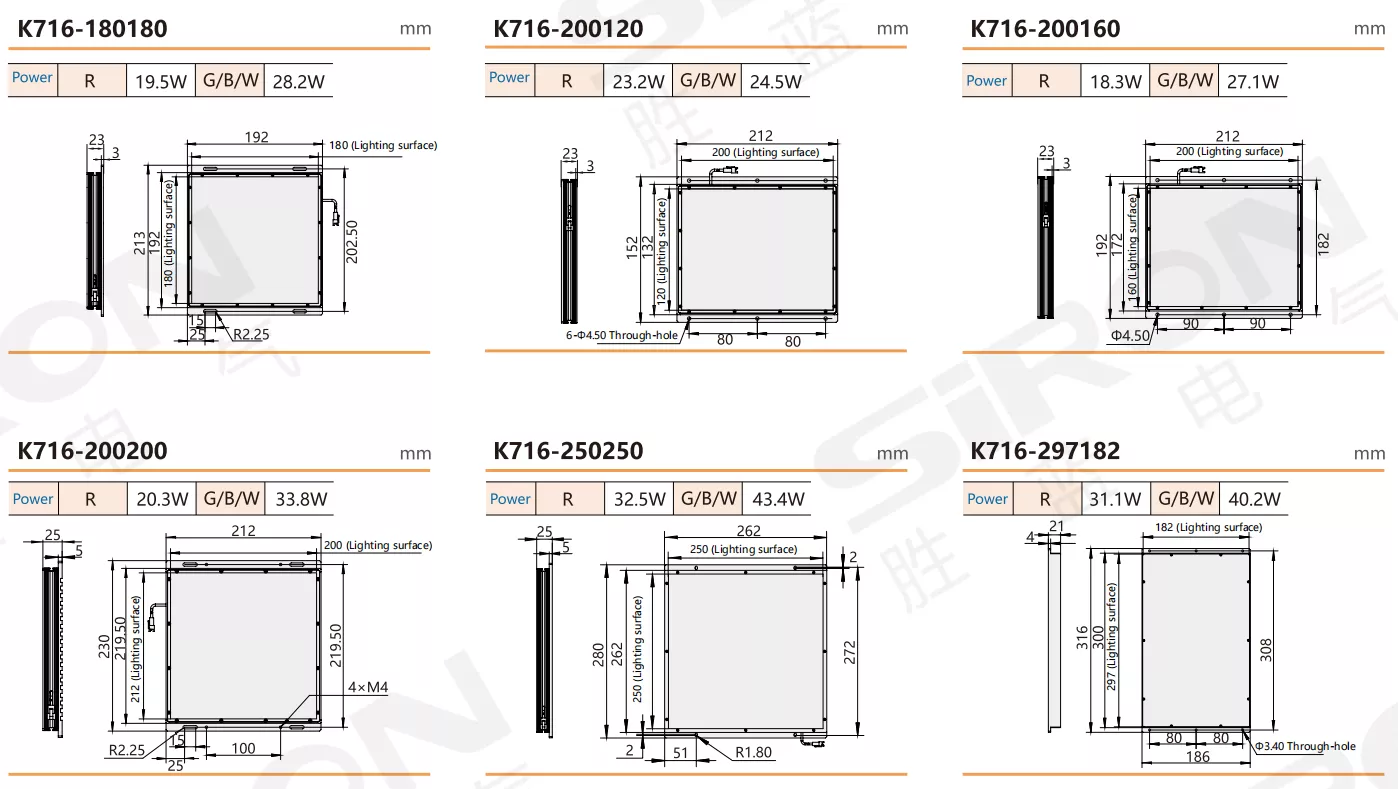

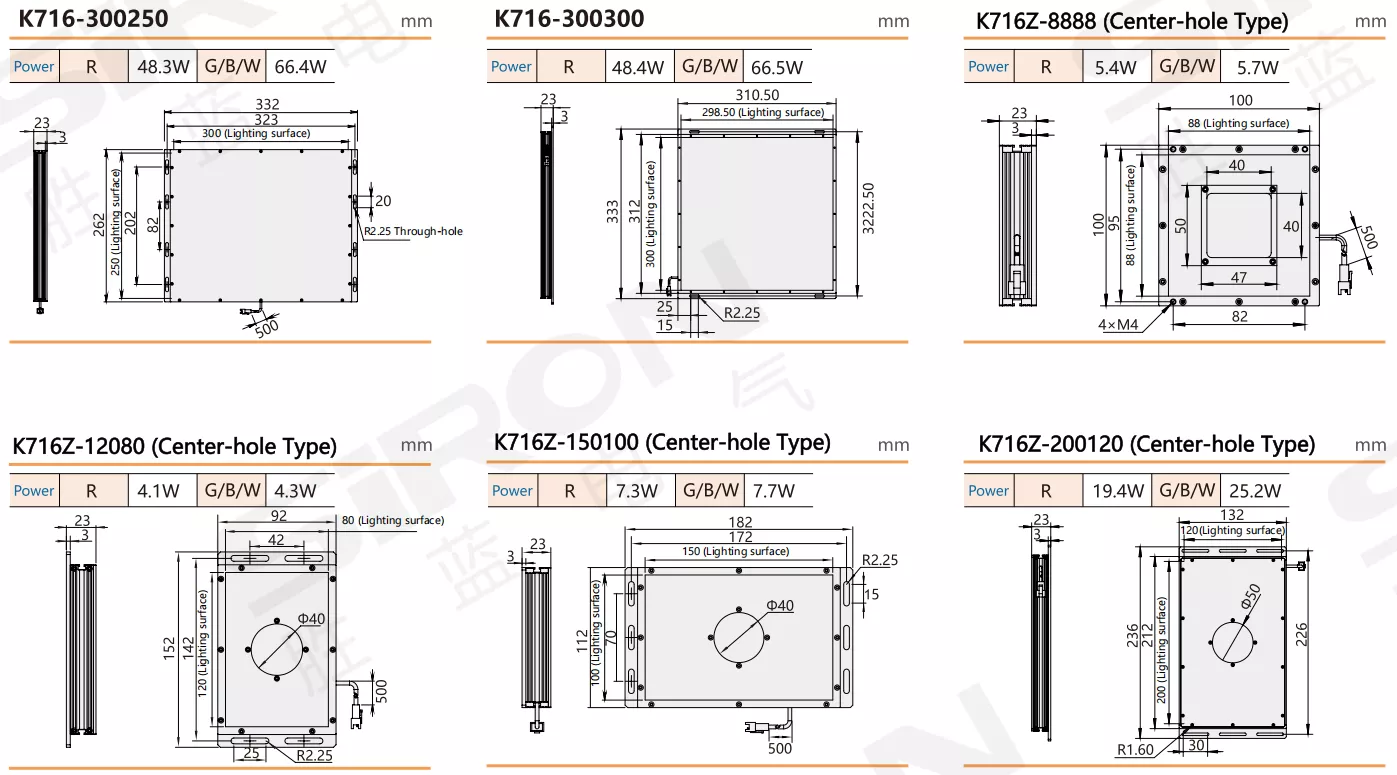

Standard Type
mm
Light Emitting Area Length | 30 | 30 | 40 | 50 | 50 | 70 | 80 | 100 | 120 | 130 | 150 | 160 | 180 | 200 | 200 | 200 | 250 | 297 | 300 | 300 |
| Light Emitting Area Width | 30 | 60 | 30 | 50 | 80 | 70 | 80 | 100 | 120 | 130 | 150 | 100 | 180 | 120 | 160 | 200 | 250 | 182 | 250 | 300 |

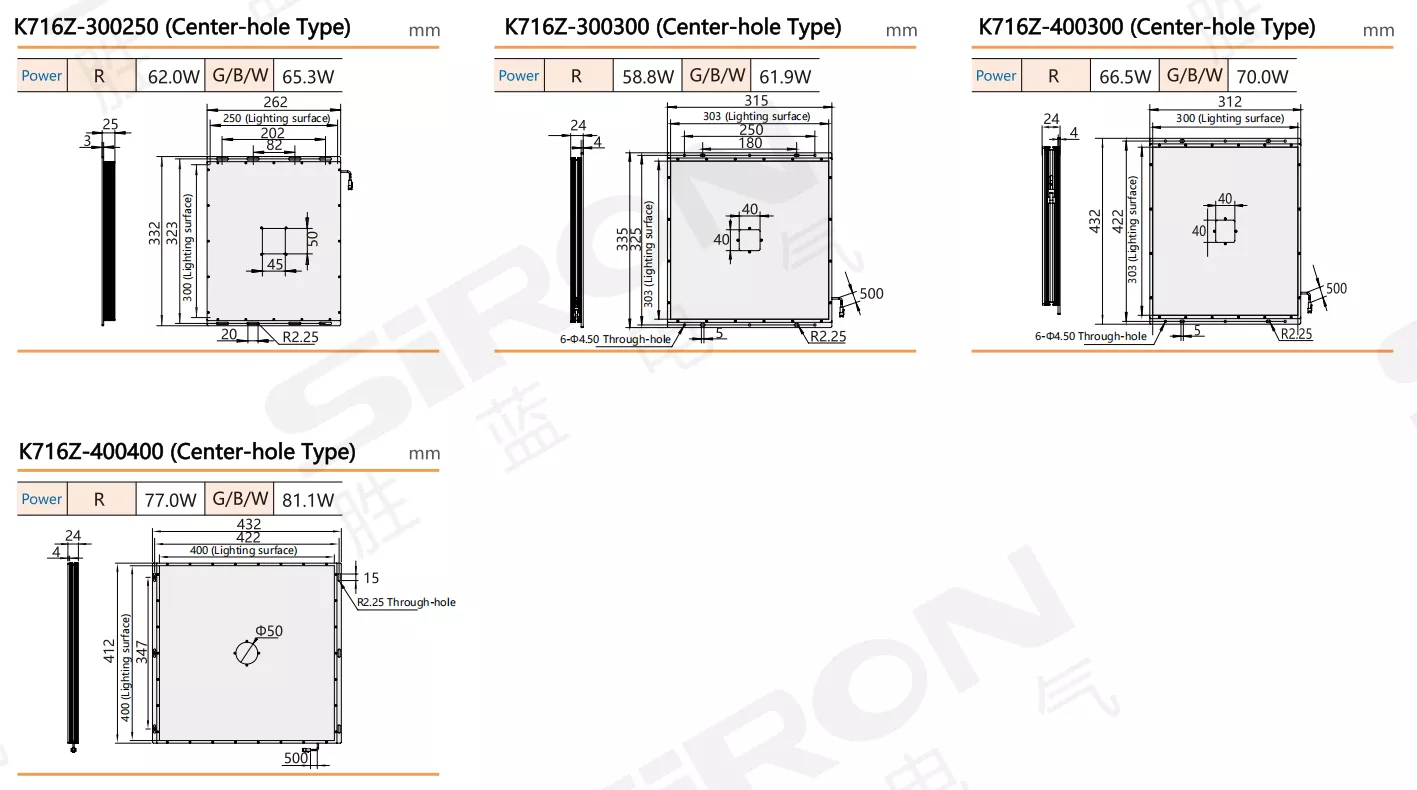

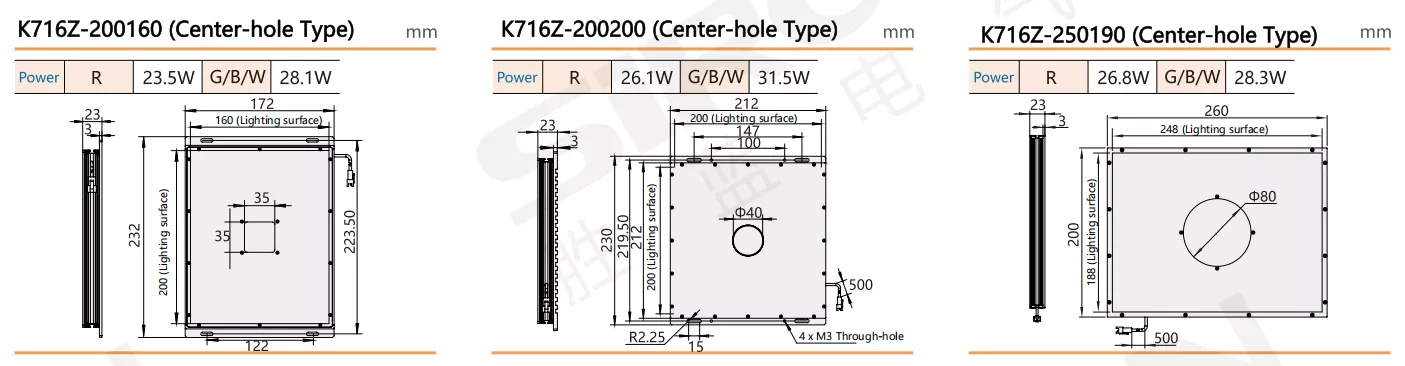

Center Hole Type
mm
| Light Emitting Area Length | 88 | 120 | 150 | 200 | 200 | 200 | 250 | 300 | 300 | 400 | 400 |
| Light Emitting Area Width | 88 | 80 | 100 | 120 | 160 | 200 | 190 | 250 | 300 | 300 | 400 |
Specifications
| Name | Bottom backlight |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Product size inspection;Product profile detection; Pharmaceutical beverage liquid level detection |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
