Adopt lightweight design;
Better heat dissipation performance;
The specially designed parallel film can make the backlight emit The parallel light is suitable for high-precision measurement occasions.
Better heat dissipation performance;
The specially designed parallel film can make the backlight emit The parallel light is suitable for high-precision measurement occasions.

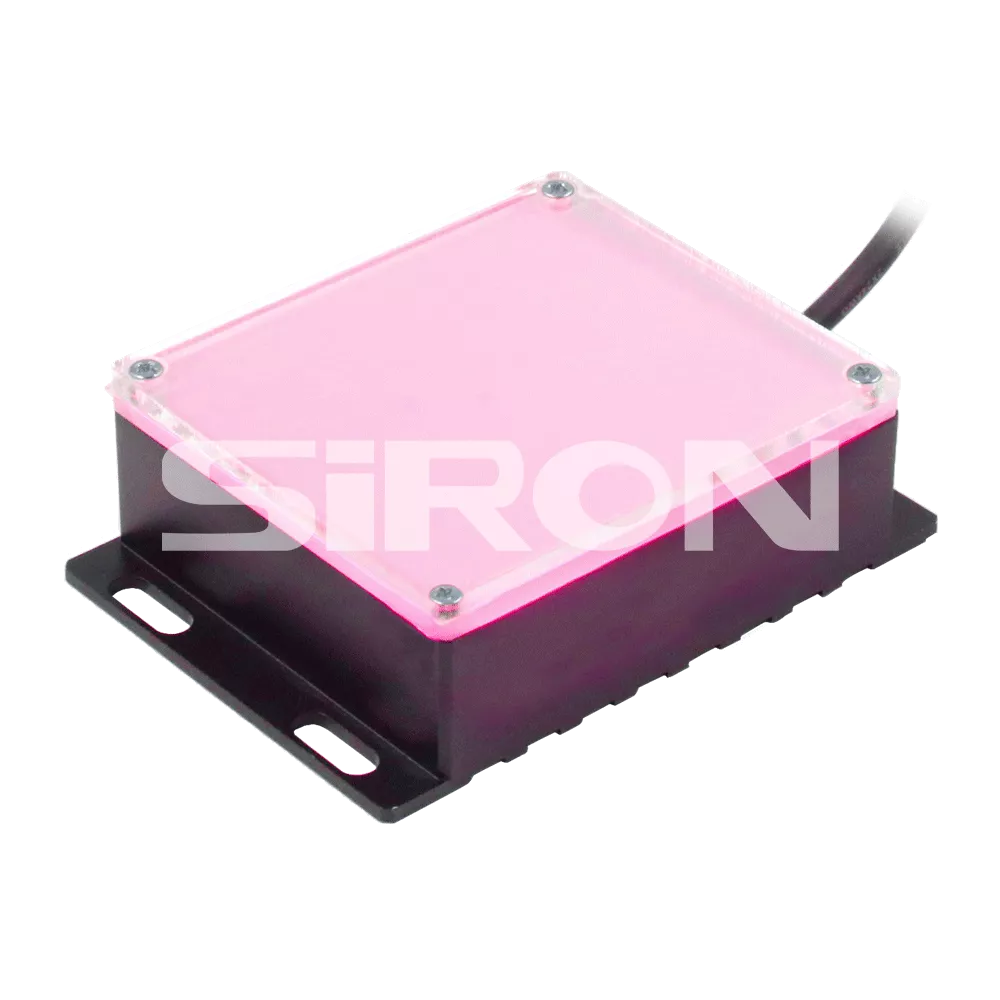

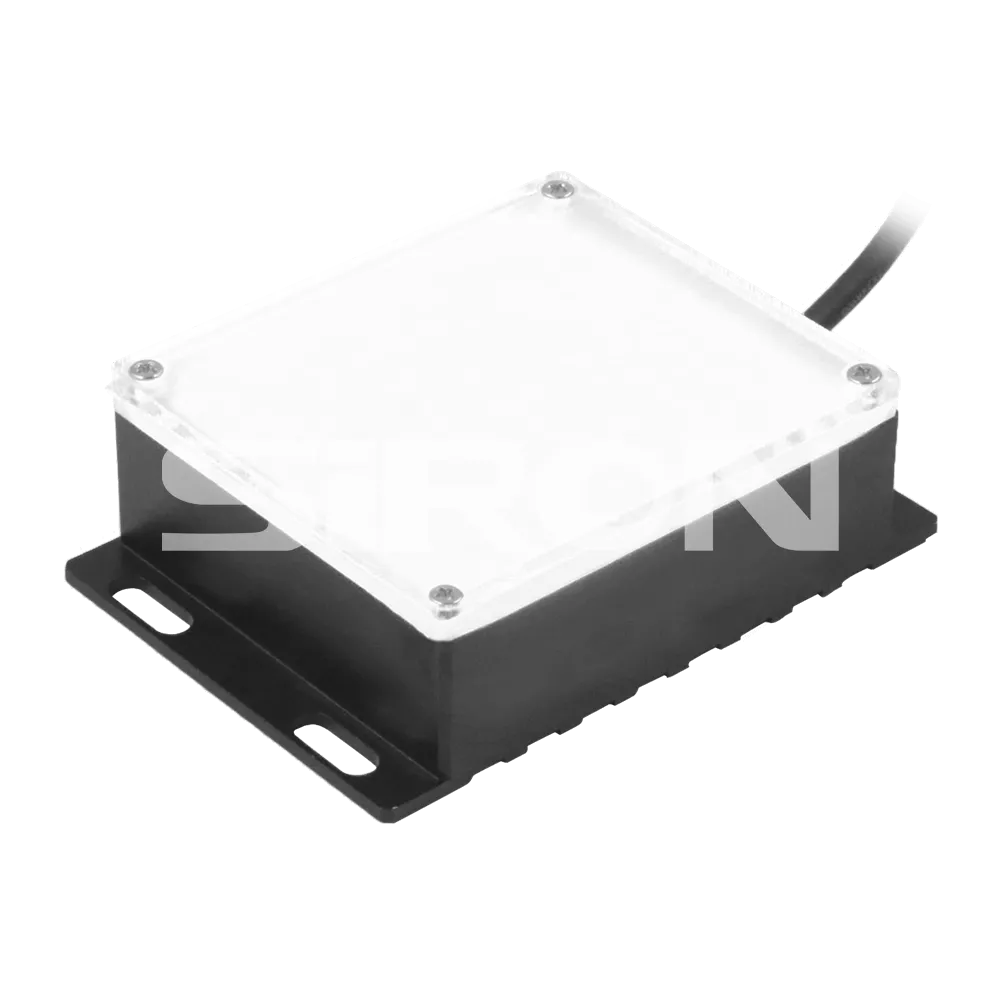

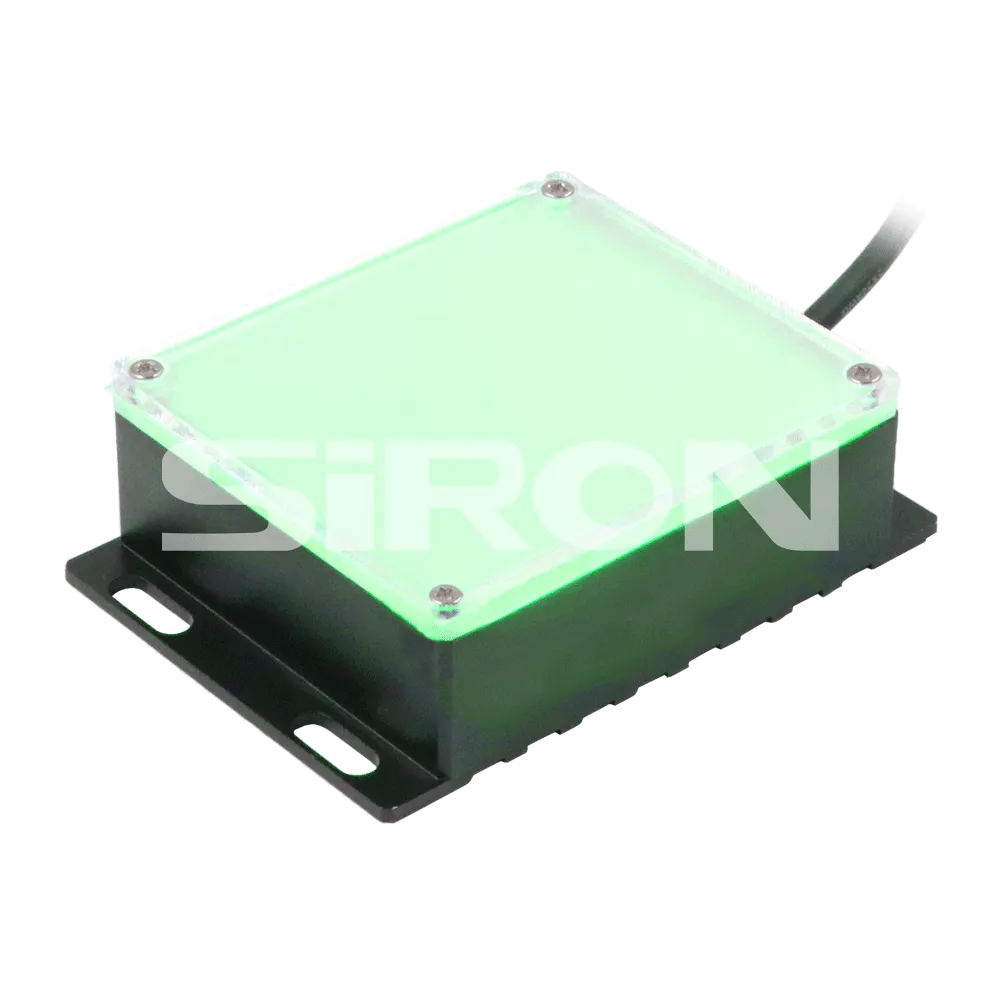

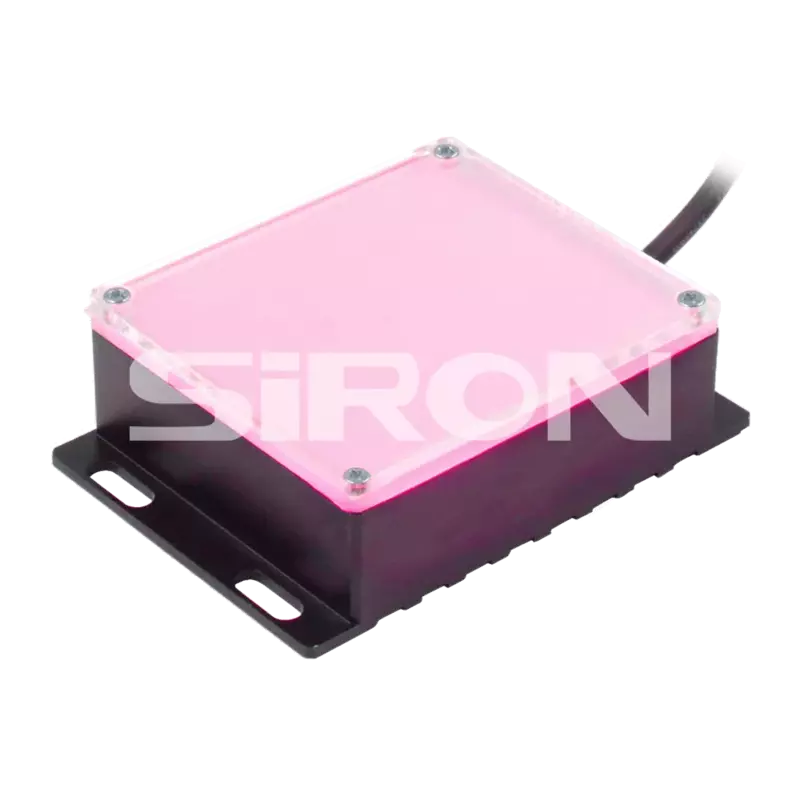

K715 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Selection example:
K710-3 030-R indicates the K710 series,thelengthof the luminous zone is 30mm,the width of the luminous zone is 30mm,and the color of the light source is red.
mm
| Light Emitting Area Length | 30 | 50 | 70 | 80 | 100 | 120 | 130 | 150 | 160 | 180 | 200 | 200 | 200 | 240 | 250 | 300 |
| Light Emitting Area Width | 30 | 50 | 70 | 80 | 100 | 120 | 130 | 150 | 100 | 180 | 120 | 160 | 200 | 120 | 250 | 300 |
Specifications
| Name | Parallel backlight |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operatng temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Metal cylinder profile detection;Glass bottle diameter detection;Screw tooth profile detection |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
