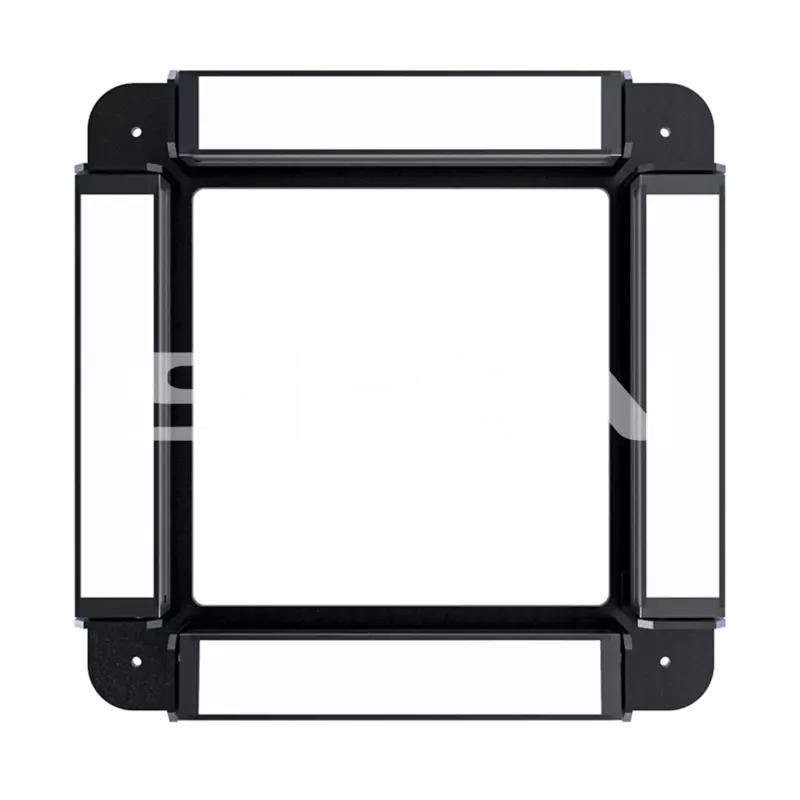

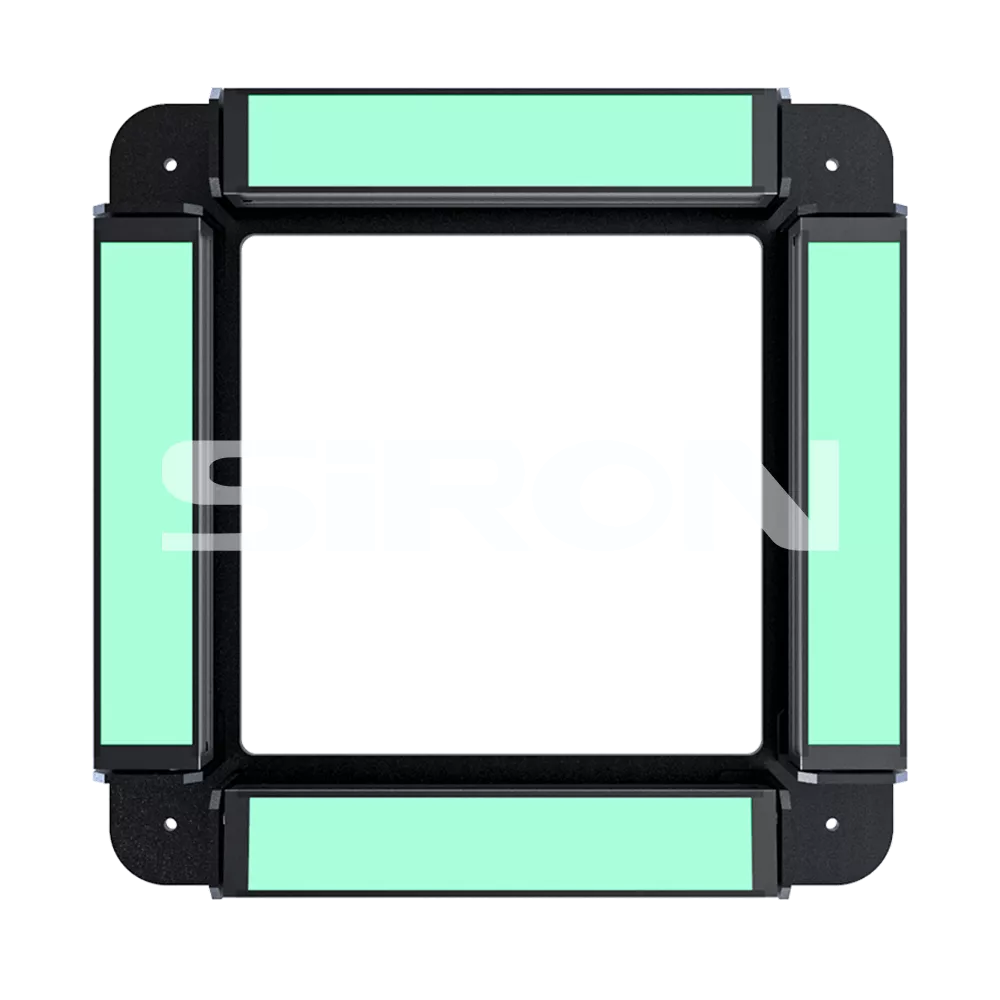

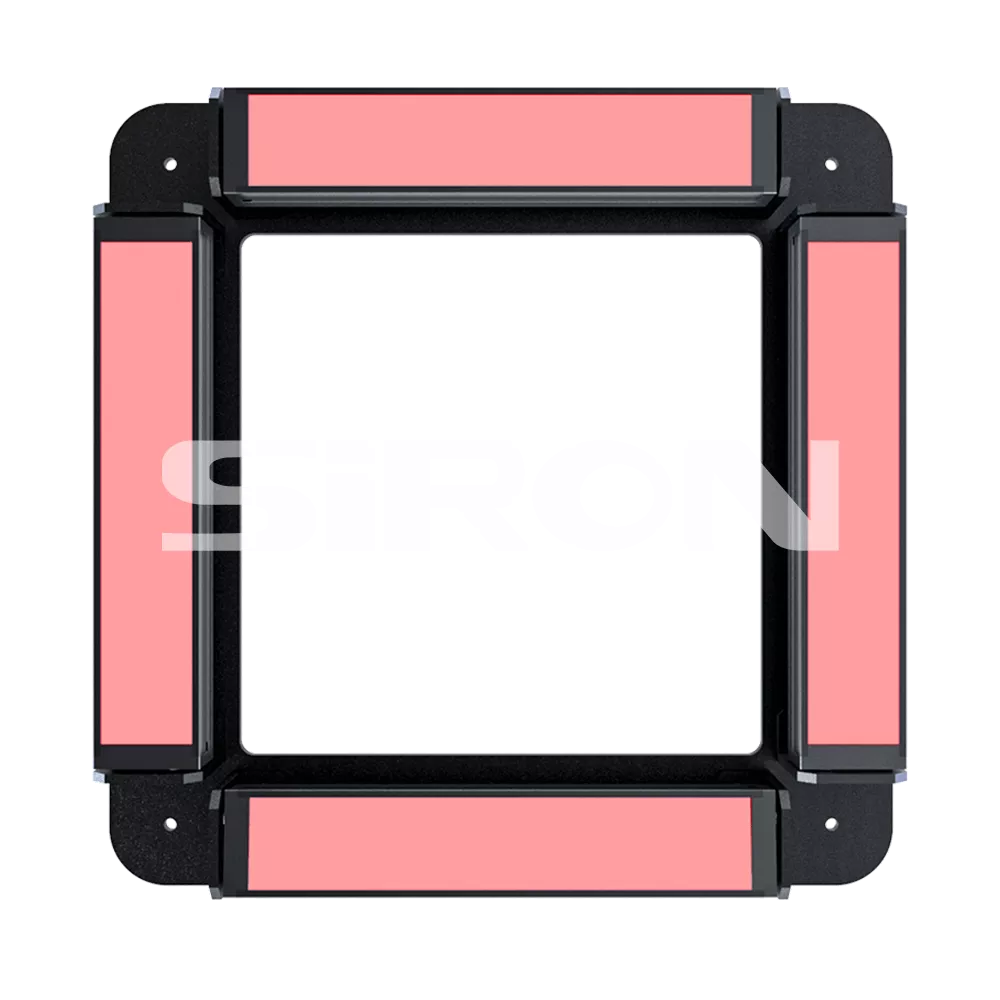

The combined strip light source is composed of multiple strip lights freely combined.
The angle of each strip light can be adjusted freely to achieve different effects.
Model:K712 Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection

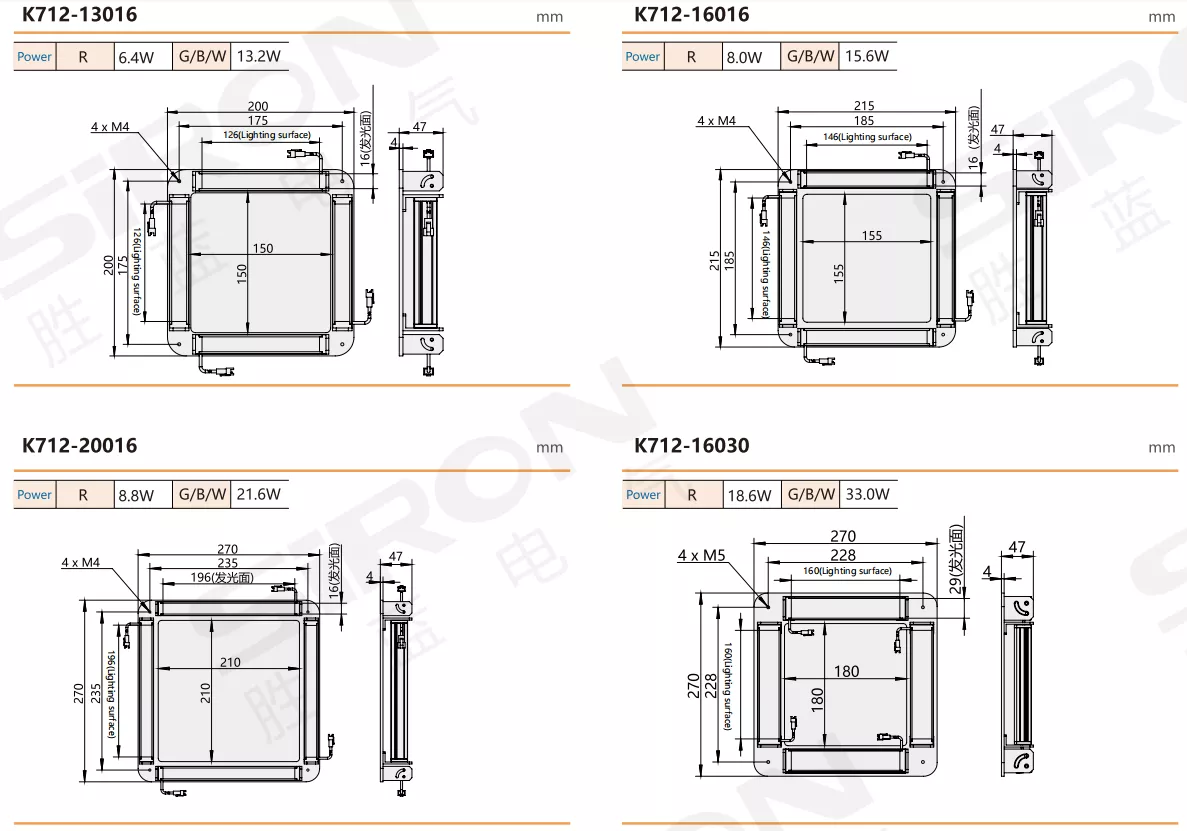

Selectionexample: K712-13016-R indicates the K712 series,the length of the luminous area is 130mm,the width of the luminous area is 16mm,and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
| LED rows | 4 rows | LED rows | 4 rows |
| Light area length | 130,160,200 | Light area length | 160,200 |
| Light area width | 16 | Light area width | 30 |
Specifications
| Name | Combination bar light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | PCB substrate inspection;IC component detection;Large format object surface detection. |
| Wavelength and color temperature | W:6500K B:465~470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
