With high diffusivity and high light transmittance diffuser, it can produce very uniform light;
The specially designed heat sink can keep the temperature of the light source .
The specially designed heat sink can keep the temperature of the light source .
low and at the same time increase the brightness of the light source.

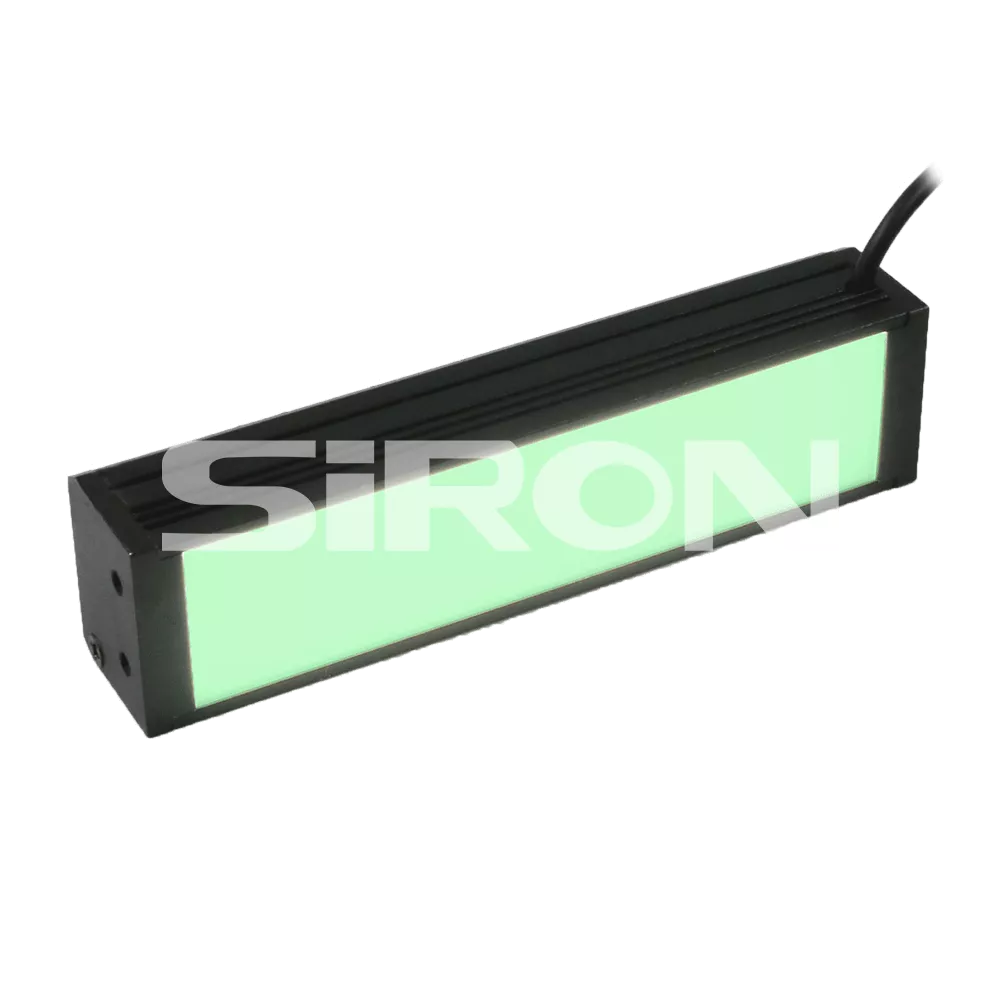

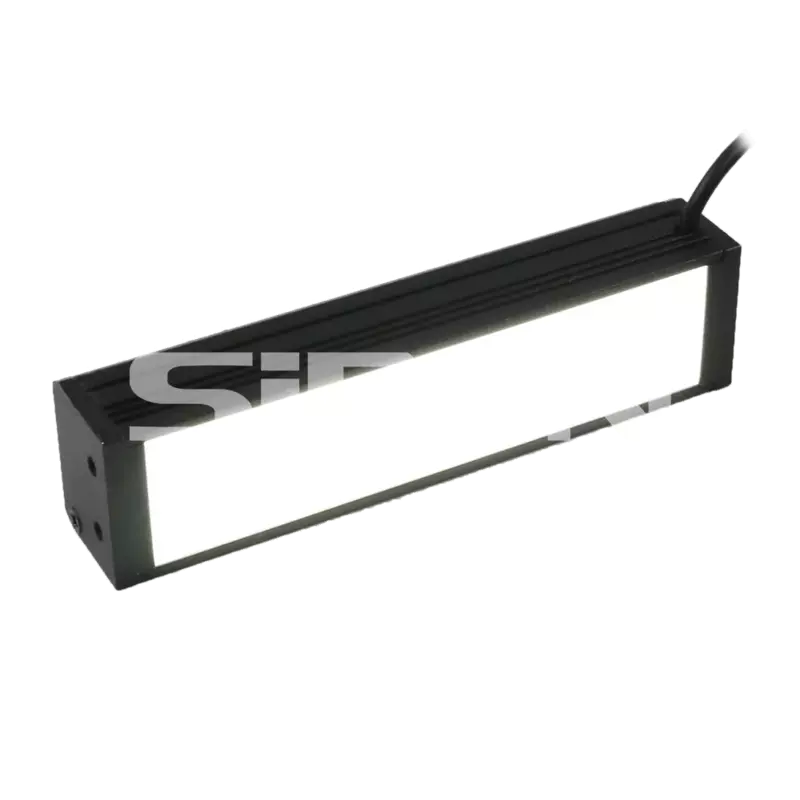

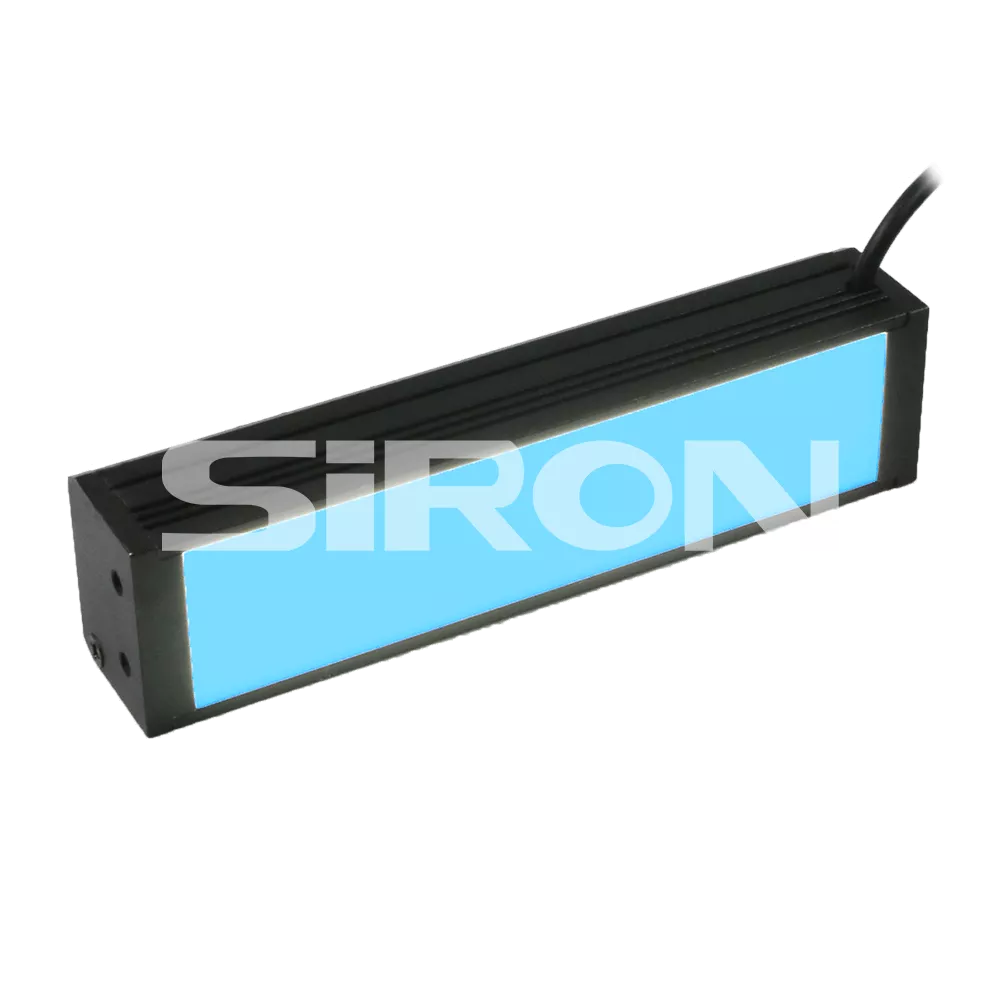

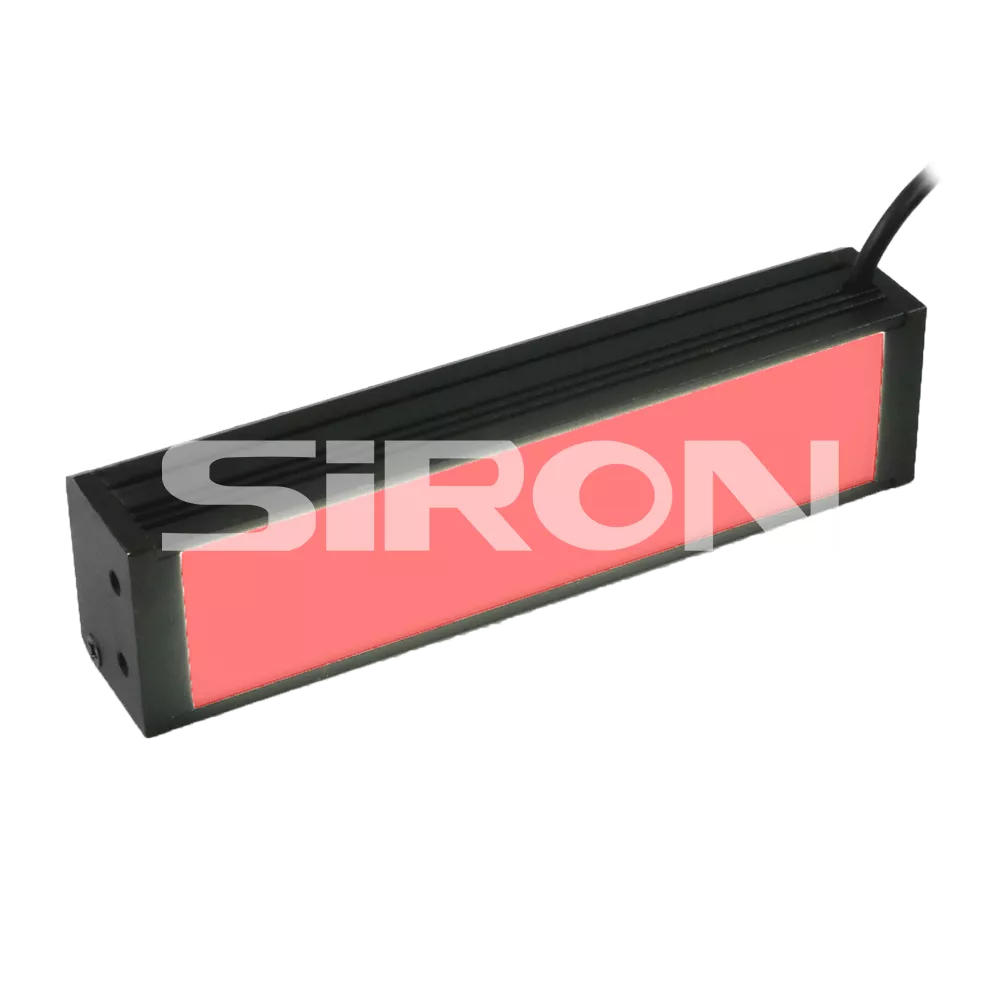

K711 Series
Brand:SiRON
8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
v

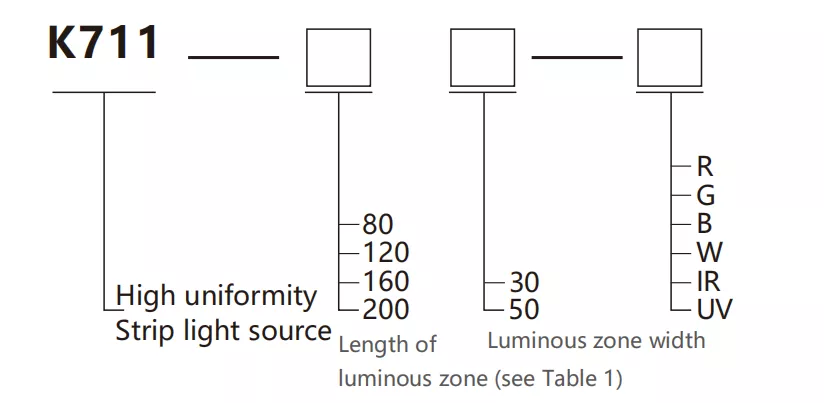

Selection example: K711-8030-R indicates the K711 series, the length of the luminous area is 80mm,
the width of the luminous area is 30mm, and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.

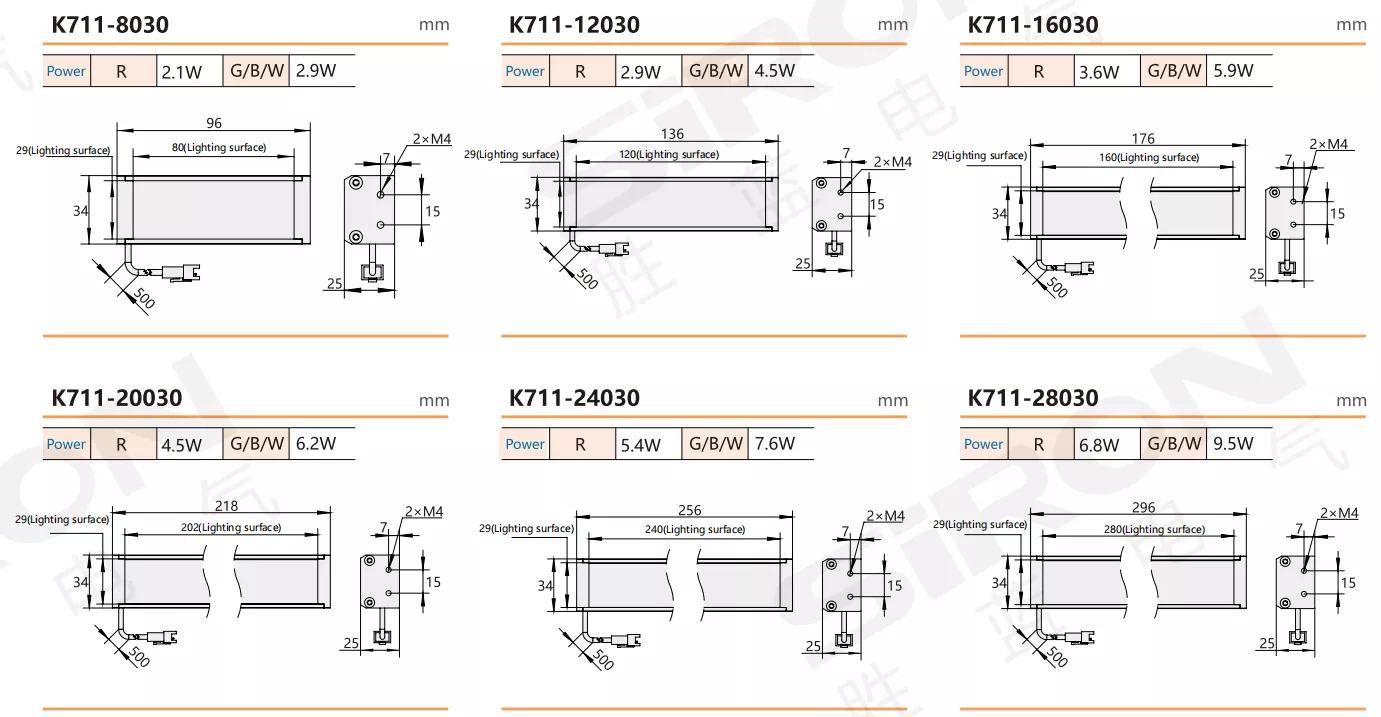

| LED rows | 6 rows | LED rows | 10 rows |
| Light area length | 80,120,160,200,240,280,320,360 400,440,480,520 | Light area length | 50,100,150,200,250,300,350,400 450,500,550,600 |
| Light area width | 30 | Light area width | 50 |
Specifications
| Name | High uniform bar light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85% (No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | LCD panel defect detection;Surface crack detection; Surface defect detection of fine metal |
| Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
