Check the date on the package;
Detect objects with bright, reflective surfaces;
Detect the external dimensions of IPA high precision components;
Test packaging and labels.
Detect objects with bright, reflective surfaces;
Detect the external dimensions of IPA high precision components;
Test packaging and labels.

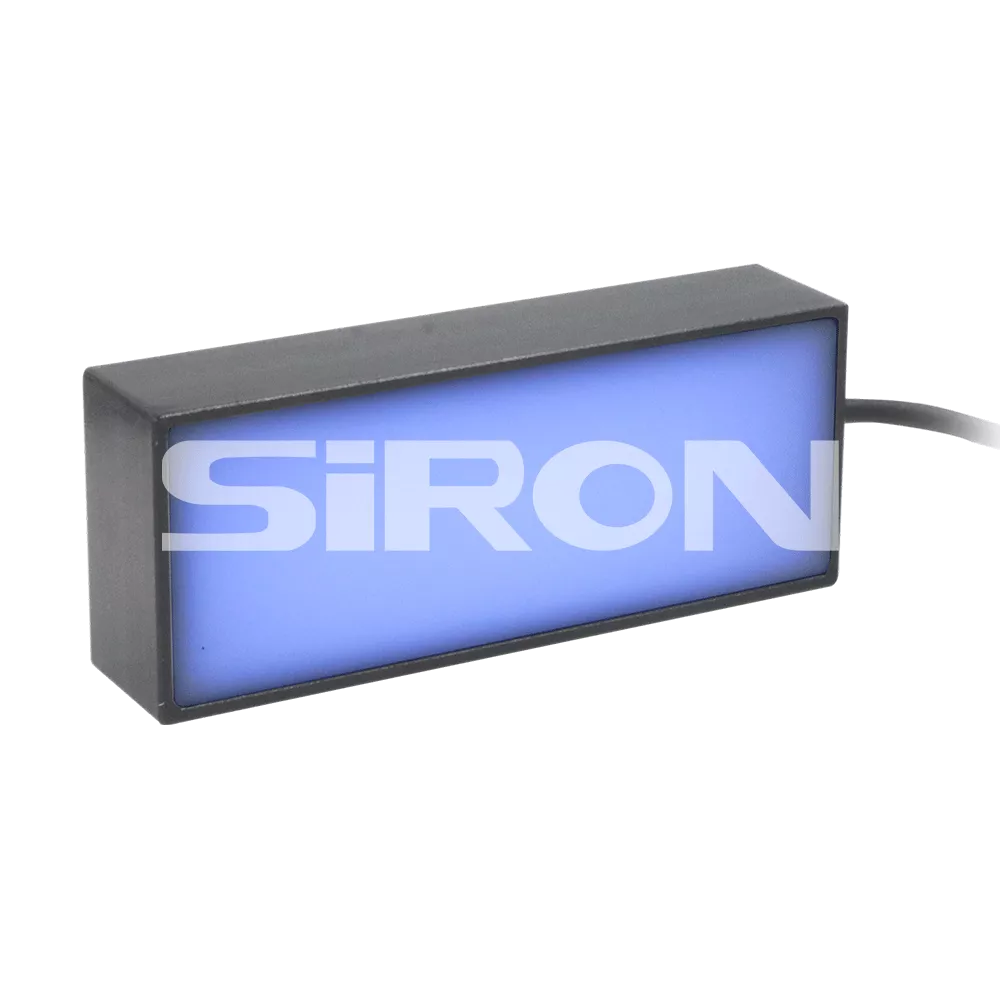

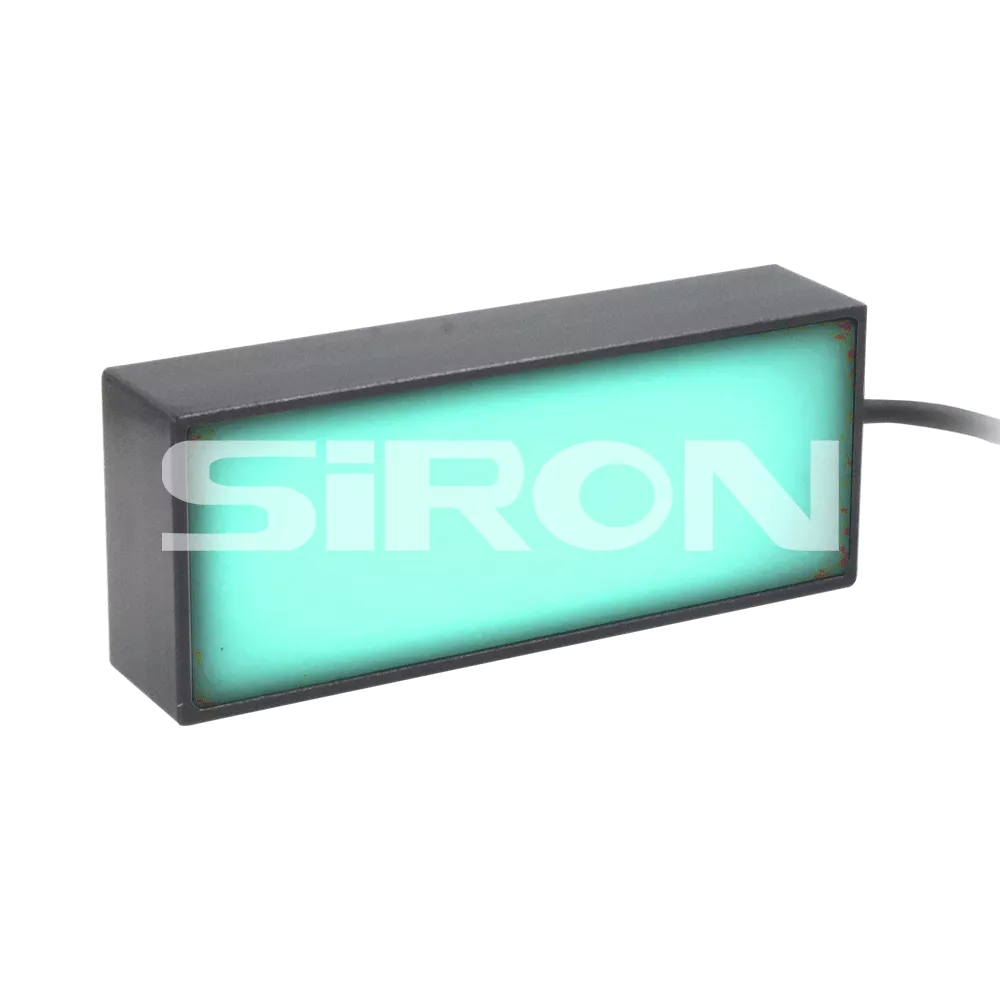

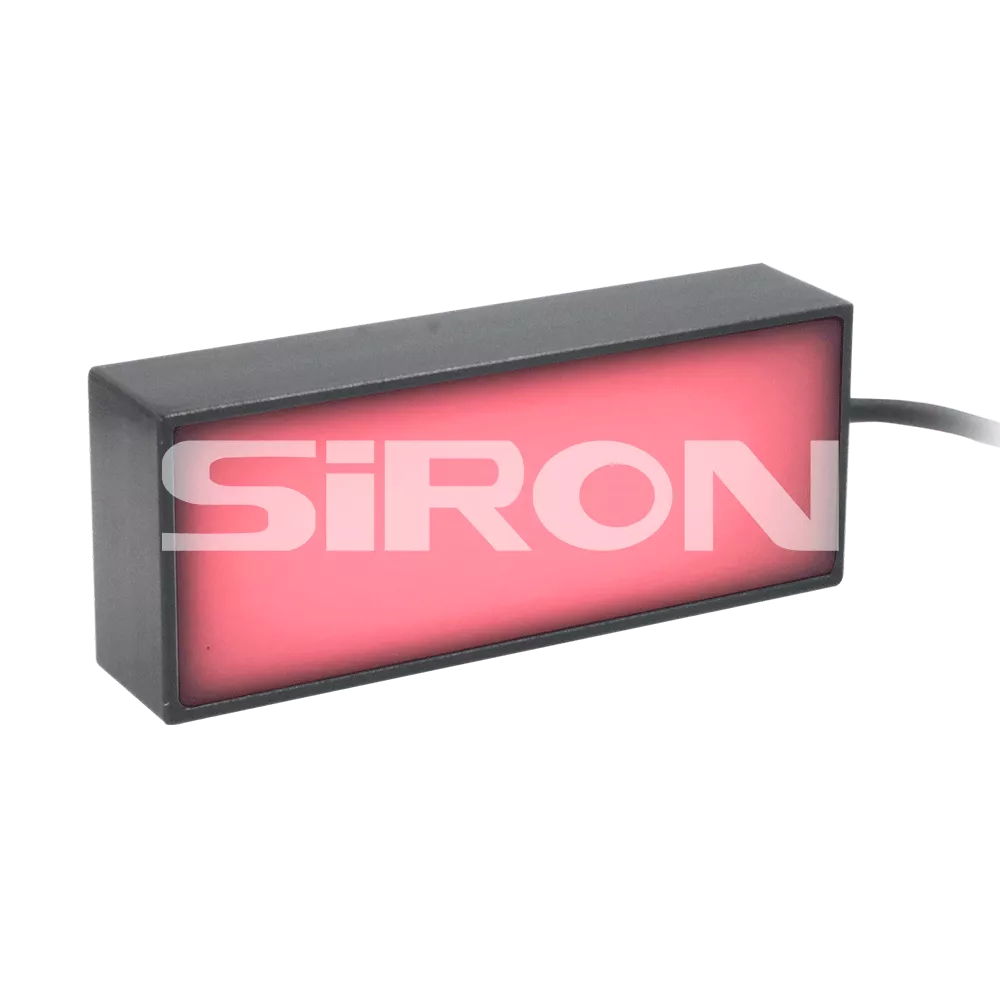

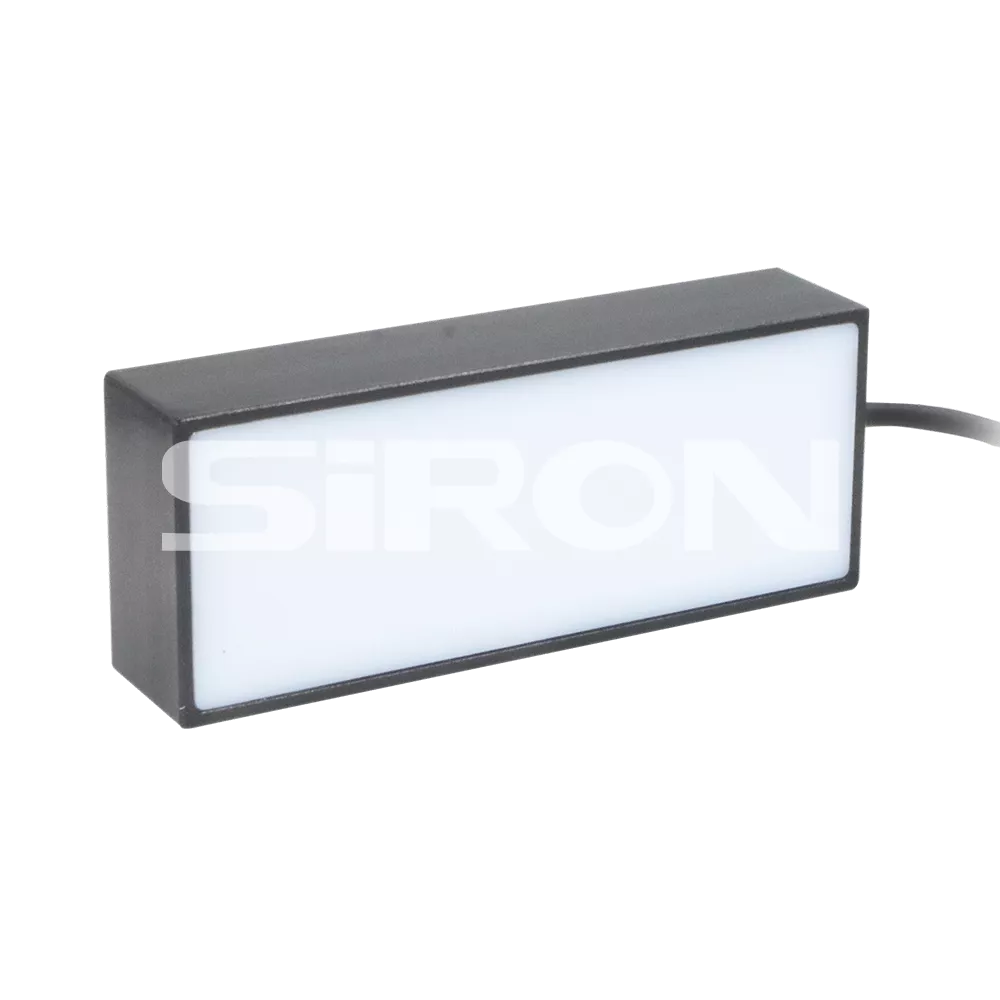

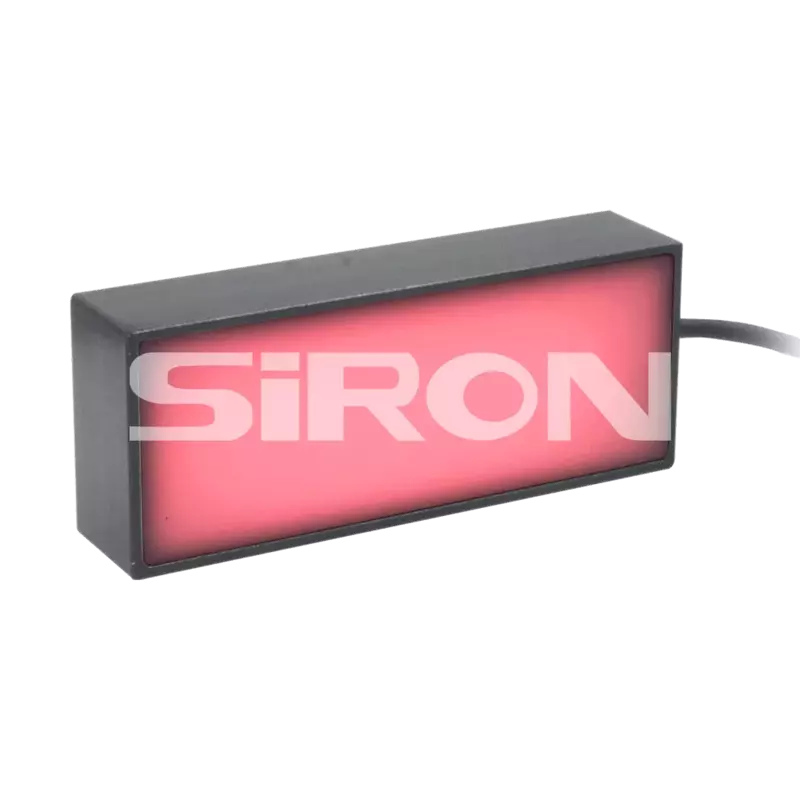

K710A Series
Brand:SiRON
Code:8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection

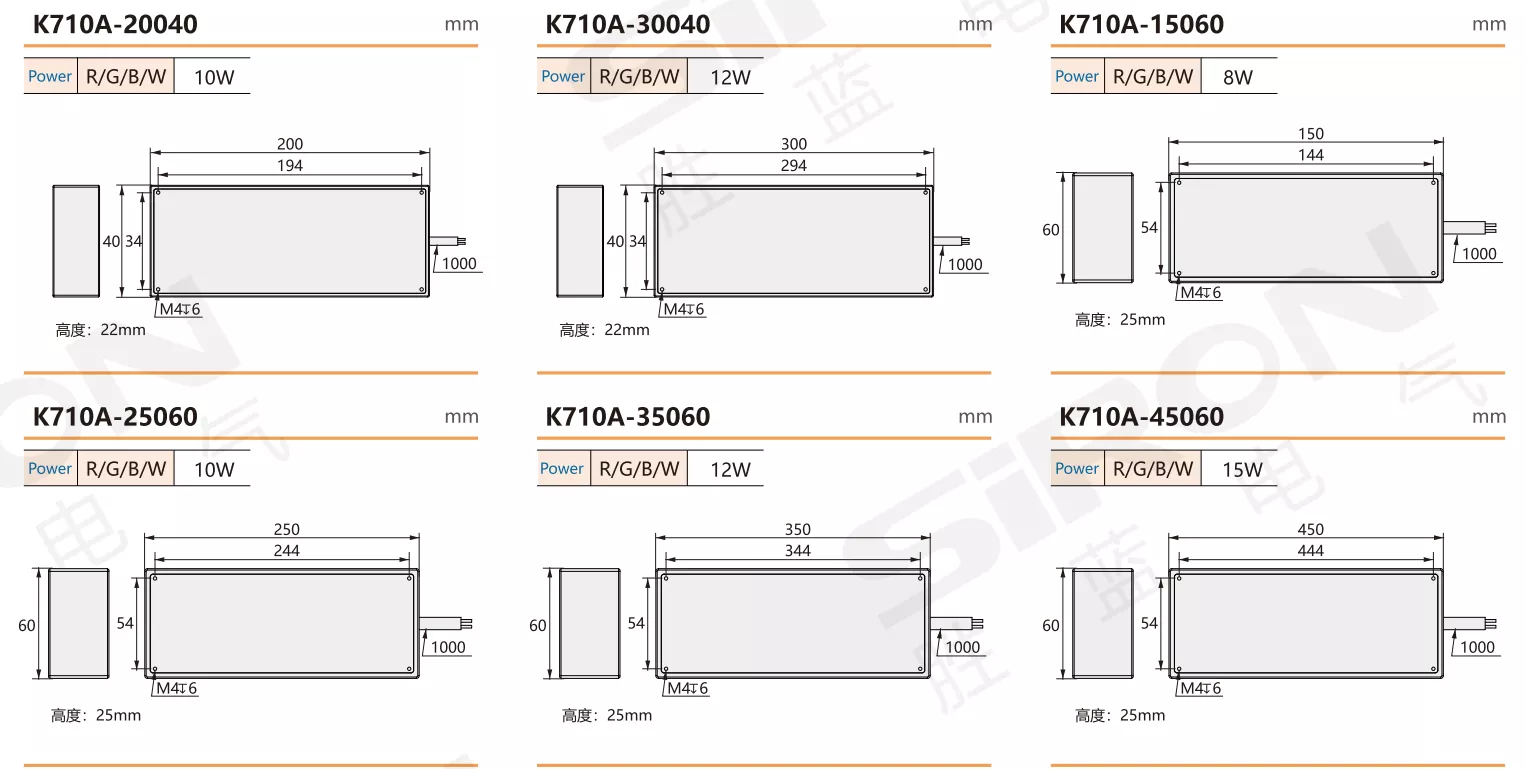

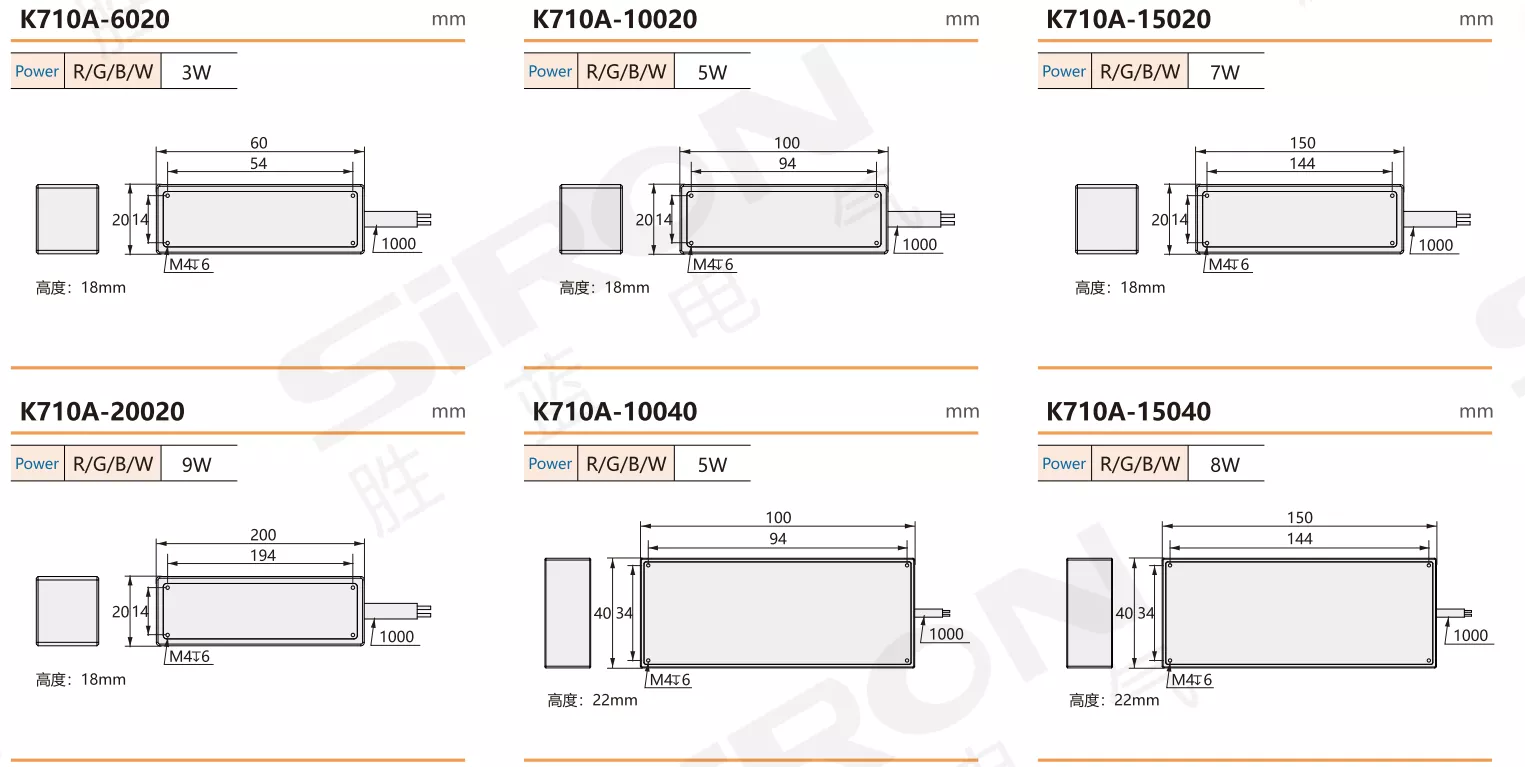

Selection Example:K710A-10040-R represents the K710A series, with a light source body length of 100mm, a light source body width of 40mm, and a red light source color.
Note:
1. Cable length: 1M
2. Color code: R- Red, G- Green, B- Blue, W- White, IR-Infrared, UV- Ultraviolet mm
| Length of light-emitting area | 60, 100, 150, 200 | 100, 150, 200, 300 | 150, 250, 350, 450 | ||
| Width of light-emitting area | 20 | 40 | 60 | ||
Specifications
| Name | Strip light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Life span | 50000h |
| Operating temperature | -20～+55℃ |
| Working humidity | 10～90% (non-condensing) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | Detect the date on product packaging bags; detect objects with high-brightness and reflective surfaces, etc. |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
