The length varies from ten millimeters to several meters;

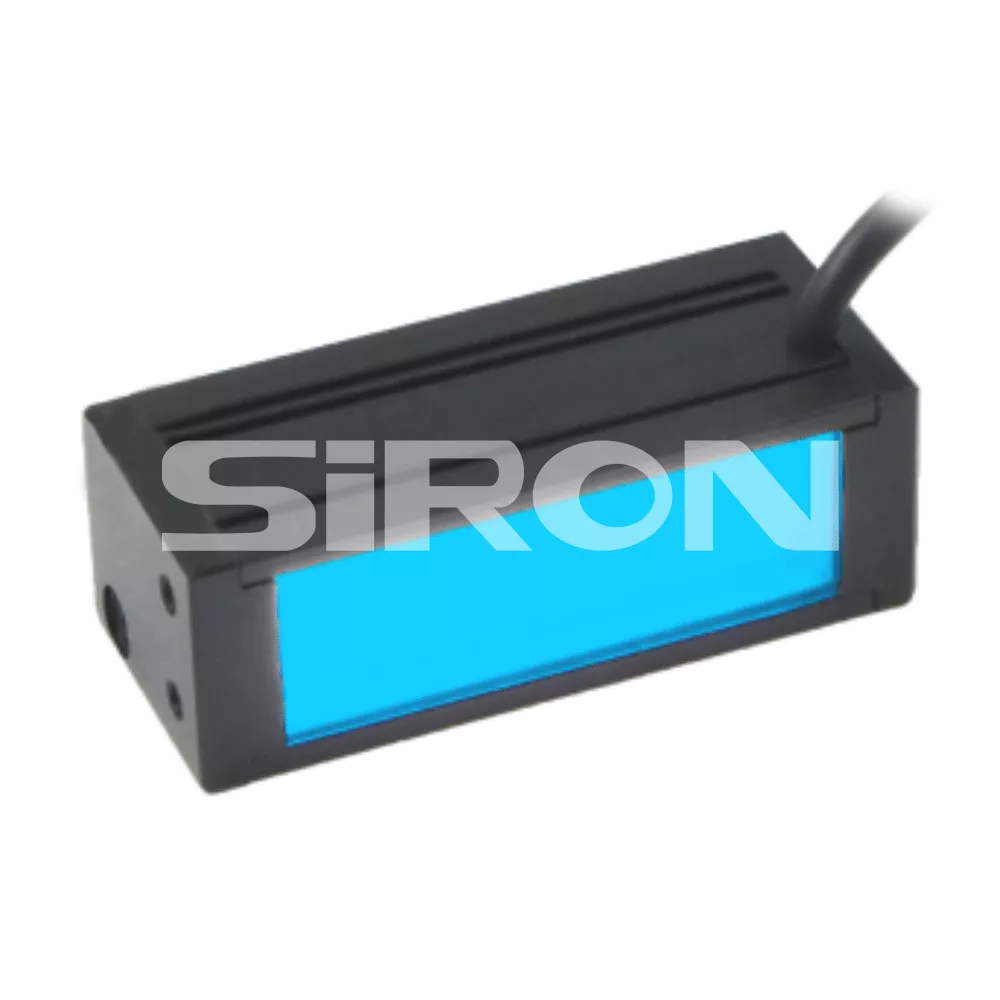

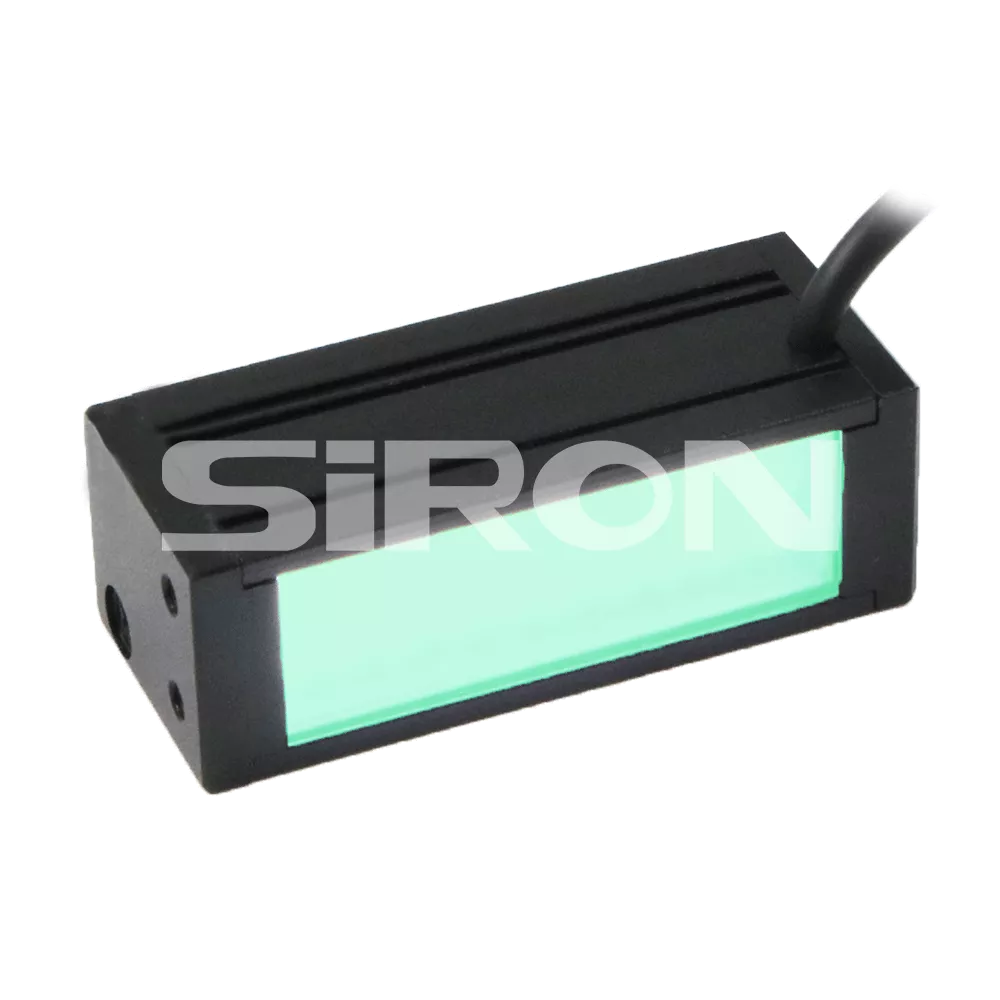

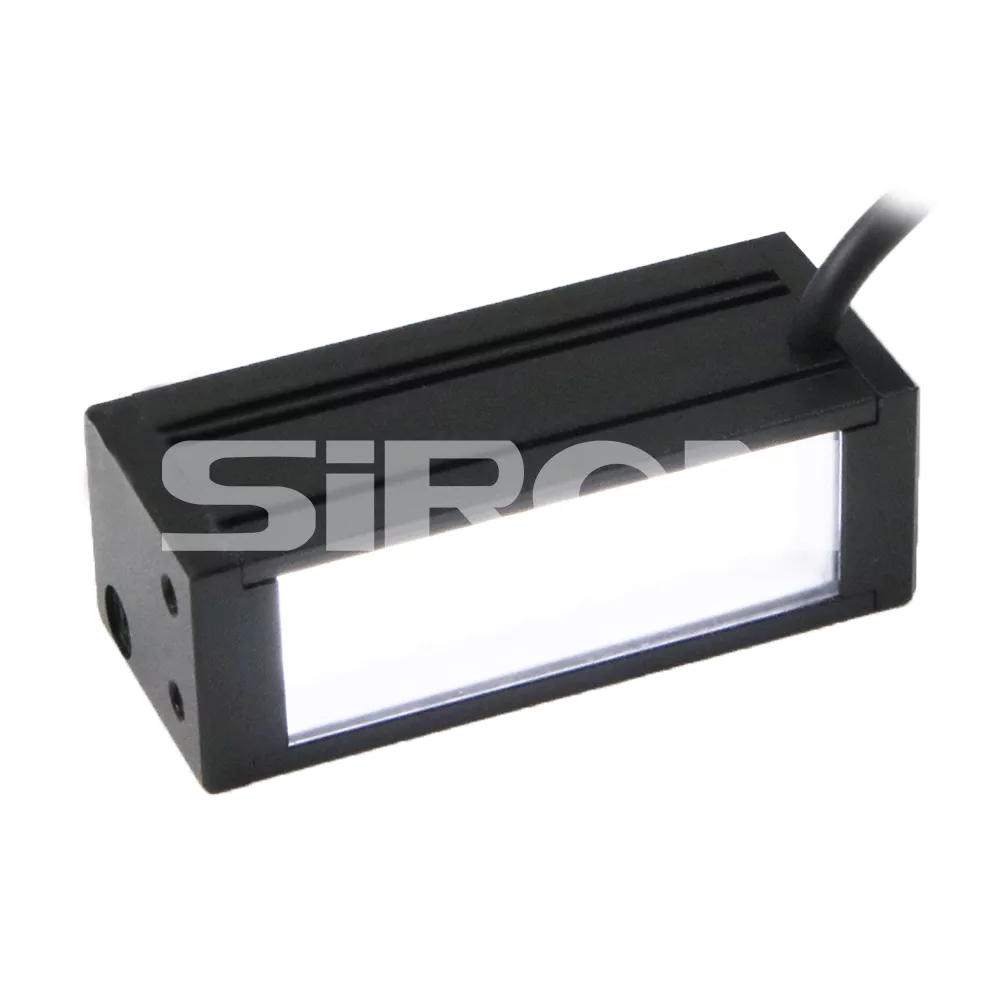

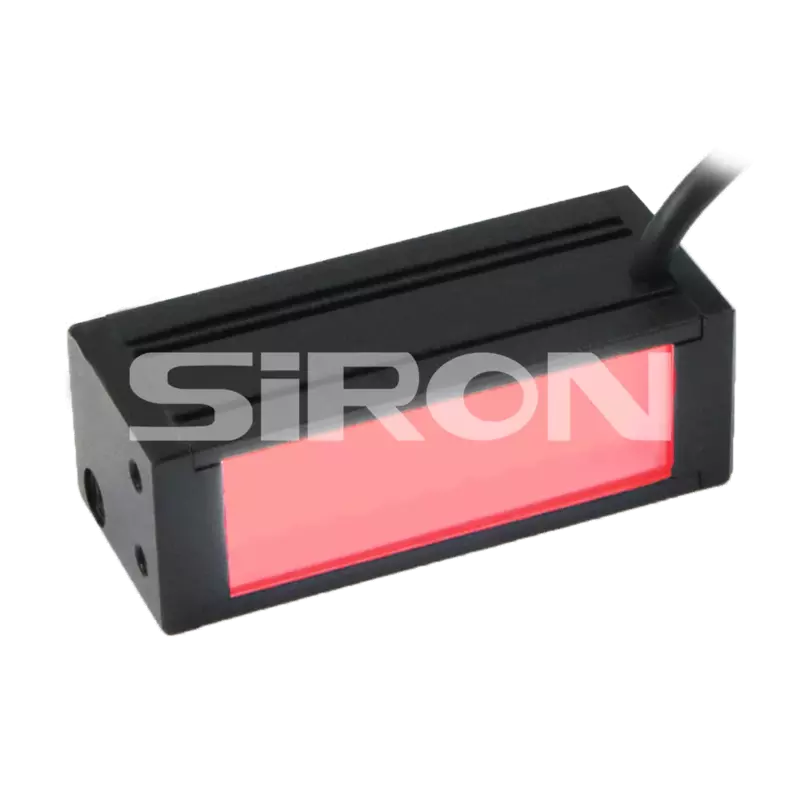

The color of the light source can be selected according to the needs, and the illumination angle can also be adjusted at will according to the testing needs.
About selection
Selection example: K710-4216-R indicatesthe K710 series,thelengthoftheluminouszoneis 42mm,the width of the luminous zone is 16mm,and the color of the light source is red.
Note: R - red; G - green; B - blue; W - white; IR - infrared; Uv-Ultra Violet.
mm

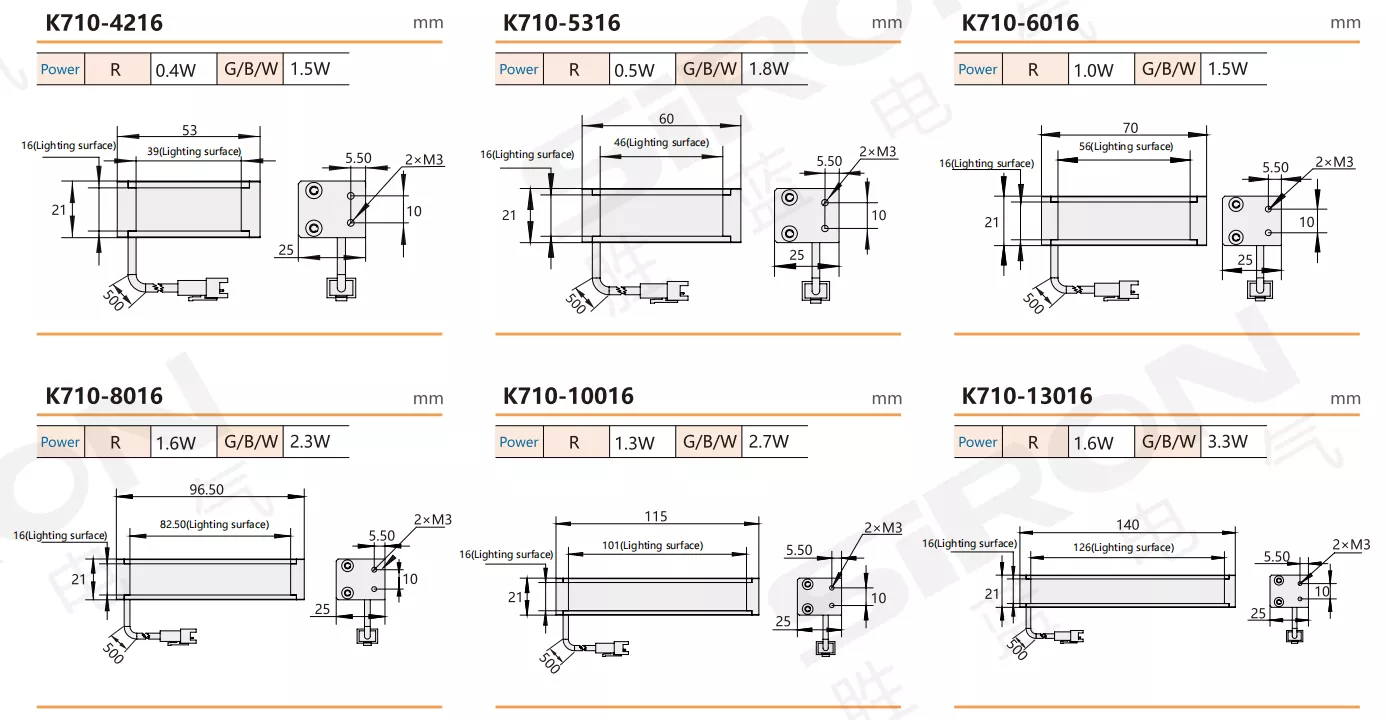

| Number of LED rows | 3 rows | Number of LED rows | 6 rows |
| Length of light-emitting area | 42,53,60,80,100,130,150,180,200, 250,300,350 | Length of light-emitting area | 60,80,100,125,150,180,200,250, 300,350,400,450,500,600,700 |
| Width of light-emitting area | 16 | Width of light-emitting area | 30 |
| Number of LED rows | 10 rows | ||
| Length of light-emitting area | 50,100,150,200,250,300,350,400,450,500,550,600, | ||
| Width of light-emitting area | 50 | ||
Specifications
| Name | Highlight bar light source |
| Appearance |
White Red Green Blue |
| Voltage | 24V DC |
| Operating temperature | -10～+60℃ |
| Working humidity | 20～85%(No atomization) |
| Controller | Analog controller;Digital controller;Stroboscopic controller |
| Scope of application | LCD panel defect detection;Surface crack detection; Surface defect detection of fine metal |
Wavelength and color temperature | W:6500K B:465～470nm R:620～630nm IR:850～940nm G:525～530nm UV:365～395nm |
