Small size, light weight, easy to install.Strong anti-interference, can be installed in any position, any direction.
Both static and rotational torque can be measured; No carbon brush and other wear parts, can be high speed for a long time running.
Mainly used for dynamic rotation torque measurement, detection of motor, mixer, reducer, hoist, drilling machinery and other equipment load torque and input power.
Both static and rotational torque can be measured; No carbon brush and other wear parts, can be high speed for a long time running.
Mainly used for dynamic rotation torque measurement, detection of motor, mixer, reducer, hoist, drilling machinery and other equipment load torque and input power.

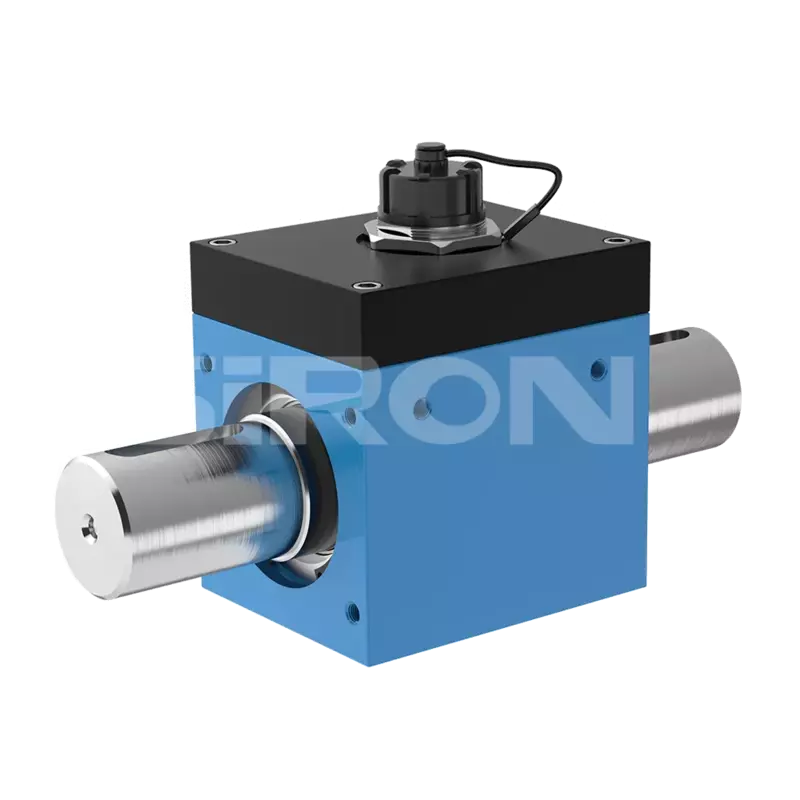

Model:K103-4 Series
Brand:SiRON
8479909090
Non-returnable
₹5,000.00
Product Details
Product Description
About selection
Example selection: K103-4-200-R48 indicates the K103 series, with a serial number of 4, a rated range of 200N.m,
and the torque signal is RS485.
Torque signal
| Code | R48 | V1 | V2 | V3 | V4 | P1 |
| Torque signal | RS485 | 0~5V | 0~10V | -5～5V | -10～10V | 5～15KHz |
Specifications
Name | Dynamic torque sensor | |
Model | K103-4-200-□ | K103-4-500-□ |
Rated range | 200N.m | 500N.m |
Power supply | 24VDC±15% | |
Speed range | ≤8000 revolutions per minute | |
Torque signal | RS485/±10V/±5V/0～10V/0～5V/5~15KHz(pulse signal) | |
Speed signal | RS485/60 pulse signal | |
Precision | ±0.2%F.S | |
Overload capacity | 150% | |
Response frequency | 1ms | |
Operating temperature | -20～80℃ | |
Zero temperature drift | 0.15%F.S/10℃ | |
Temperature sensitivity drift | 0.15%F.S/10℃ | |
Material | φ6×3000mm | |
Cable dimension | Shell: Aluminum; Shaft core: 17-4PH | |
Class of protection | IP65 | |
